Galvanized Steel Laser Welded Pipe Roll Forming Machine With 3 KW Laser Power And PLC + HMI Control

Brand Name:	HENGFU
Model Number:	Welded Pipe Making Machine
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Material:

Galvanized Steel

Thickness:

0.6 Mm

Speed:

1-15 M/min

Control:

PLC + HMI

Laser Power:

Application:

Pipe Production

Overall Dimensions:

Overall Dimensions

Uncoiler Load Capacity:

2.0 Tons

Uncoiling Core Diameter:

Φ500 Mm

Forming Stands:

55 Stands

Roller Shaft Material:

45# Steel (Φ60 Mm)

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

welded pipe roll forming machine

galvanized pipe roll forming machine

galvanized welded pipe making machine

Product Description

Welded Pipe Making Machine

This high-performance laser welded pipe roll forming line features an integrated production process including automatic feeding, roll forming, laser welding, straightening, and non-stop cutting. Equipped with a high-power laser welding system and PLC intelligent control, the production line ensures stable operation, high welding quality, and precision manufacturing. Ideal for producing high-quality pipes from galvanized steel materials.

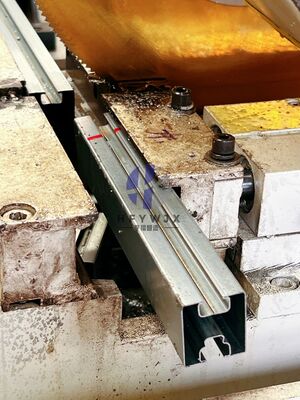

Process Flow	Loading Frame → Forming → Welding → Straightening → Non-stop Sawing
Roll Forming Material	Material Thickness: 0.6 mm Material: Galvanized Steel Sheet

Uncoiler Parameters

Structure: Integral Expansion Structure
Load Capacity: 2.0 Tons
Max. Uncoiling Width: 400 mm
Uncoiling Core Diameter: Φ500 mm
Expansion Mode: Manual Expansion
Main Shaft Diameter: Φ80 mm

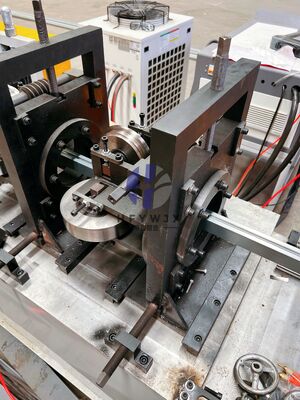

Main Forming Machine Parameters

Structure: 30 mm thick gantry type, integrally processed by CNC gantry milling with 4-bolt fixation
Forming Stands: 55 stands
Output Speed: 1-15 m/min (PLC variable frequency speed control)
Rollers: Cr12 die steel, heat treated, hardness HRC55-58°, precision ground inner holes
Roller Shaft: 45# steel, quenched and tempered, finished to Φ60 mm
Bearings: Harbin Bearings (HRB)
Frame: Welded steel plate box structure, CNC gantry milled
Motors: 3-phase motors, 4 sets × 5.5 KW
Transmission Mode: Motor drives reducer, then gearbox transmission
Control System: Programmable PLC with touch screen HMI and 3 KW laser welding machine
Overall Dimensions: Approximately 25 m × 1.5 m × 1.5 m

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.

What's the delivery time?

Normally it takes about 45 days.

What service can you provide before order?

We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.

Can you finish the machine during the delivery time?

We will complete production on time according to the confirmed lead time.

Do you have after-sale support?

Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.

Any other service?

We can manufacture, design, install and commission various roll forming machines, including both standard and customized ones. Machine assembly and operator training are free of charge, but the buyer is responsible for the round-trip flight tickets and accommodation for our technicians.
