7.5kw Servo Motor 26 Roll Corrugated Sheet Rolling Machine Precision Customized

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Tile Type:

Galvanized Sheet

Certification:

CE, SGS

Condition:

New

Customized:

Customized

Usage:

Roof

Transmission Method:

Electric

Transmission Mode:

7.5kw Inch Chain Drive

Electronic Control System:

PLC

Transport Package:

Plastic Film & Steel Wire Fixed

Specification:

12000mmx1300mmx1400mm

Package Size:

1200.00cm * 130.00cm * 140.00cm

Package Gross Weight:

15000.000kg

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

corrugated sheet rolling machine precision

7.5kw corrugated roof sheet machine

7.5kw corrugated sheet rolling machine

Product Description

Precision Customized Cold Hard Board Arc Machine

The cold hard plate arc machine is specially designed for arc forming of cold hard plates, primarily used in galvanized plate processing. To ensure consistent product forming, the feed width of galvanized plates is strictly controlled at 1000mm. This specification meets actual production needs, ensuring forming accuracy and improving equipment compatibility.

The equipment emphasizes stability, with the entire body constructed from 350H large steel that provides high structural strength and corrosion resistance. Its 26 sets of roll forming design reduce plate stress during forming, and the 70mm solid main shaft offers strong load-bearing capacity to handle operation torque and ensure stability.

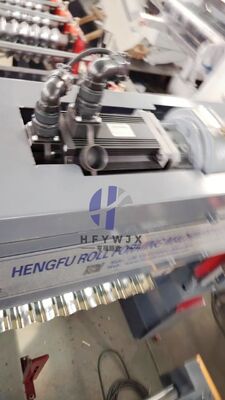

Equipped with a 7.5kw servo main motor, the equipment delivers excellent power performance. Compared with traditional motors, it features higher power density and precise speed control, with adjustable production speed of 0-40 meters per minute, significantly improving production efficiency for different batch requirements.

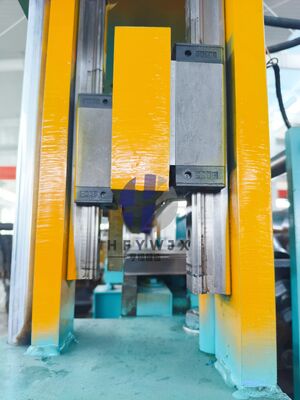

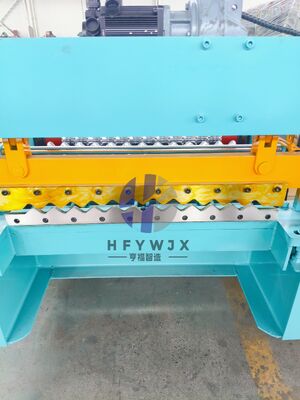

For safe and efficient production, the equipment includes double hand-operated feeding to avoid potential safety hazards, an alarm-equipped servo electric shear to prevent equipment damage, and PLC frequency conversion control to enable intelligent and easy operation.

Technical Specifications

Model NO	Corrugated Roofing Sheet Machine
Condition	New
Usage	Roof
Feeding Width	1000mm
Machine Frame	350H steel frame
Forming Speed	0-40M/min
Color	Customized
Type of Driven	Chain drive
Transmission Method	Electric
Number of rolling mill sets	26 row molding
Spindle diameter	Φ70mm (Solid shaft)
Customized	Customized
Feeding method	Double hand rocking feeding rack (with pressure roller)
Specification	12000mm x 1300mm x 1400mm
Origin	Cangzhou, Hebei
Warranty	1 year

Material Specifications

Raw materials	Galvanized steel
Machine frame	350H steel frame
Feed width	1000mm

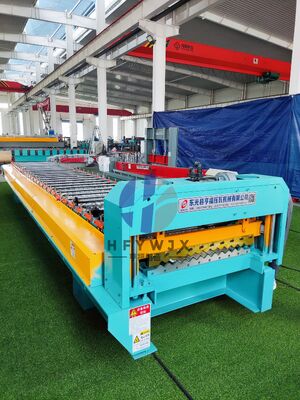

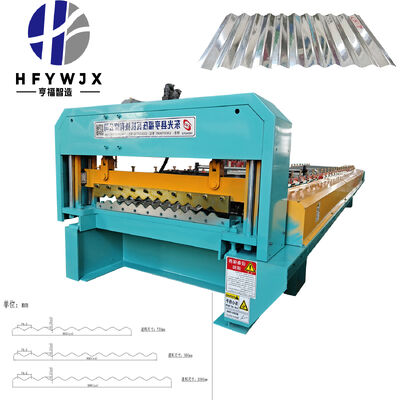

Product Gallery

Frequently Asked Questions

How many people are required to operate the machine?

It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.

Can machines be customized according to our drawings?

Yes. Simply provide the profile cross-section drawings, as well as the required sheet thickness, width, and length range, and we can design a machine model tailored specifically to your needs.

What service can you provide before order?

We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.

Is the length of the discharge rack adjustable?

Yes, our standard telescopic discharge rack can be adjusted to accommodate sheet materials of varying lengths.

How can issues such as skewed or off-center sheet feeding be resolved?

The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
