| Brand Name: | HENGFU |
| MOQ: | 1 Piece |
| Payment Terms: | 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment |

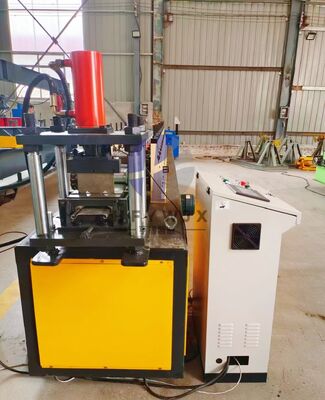

The Roller Shutter Door Roll Forming Machine is a brand-new, high-performance production equipment designed for door manufacturing and construction industries. It is engineered to efficiently and continuously produce high-quality roller shutter door profiles, delivering a reliable, automated solution for modern door production workshops.
Built for durability, the machine features a heavy-duty frame made of 80×80 square tubes with 15 forming passes. Its 16mm-thick wall plate and Φ50mm solid 45# steel main shafts ensure excellent structural rigidity, even during long-term high-intensity operation.
Powered by a stable gear transmission system, it runs smoothly with a 4kW main motor and a 4kW air-cooled hydraulic pump station. It supports a steady production speed of 15-16m/min, effectively boosting efficiency and shortening manufacturing cycles.
Equipped with post-forming double-blade shearing for burr-free cutting, it is controlled by a Delta PLC and frequency conversion system, ensuring a cutting length tolerance of ≤1mm. Additional features like 35mm galvanized pull rods, Type 4 cycloidal reducer, and multilingual support (Chinese/Russian) further enhance its stability and ease of use.
| Model NO | Roller Shutter Door Roll Forming Machine |
|---|---|
| Condition | New |
| The machine itself | 80*80 square tube heavy frame |
| Number of molding passes | 15 |
| Shaft material | 45# steel (solid shaft, Φ50mm) |
| Transmission structure | Gear transmission |
| Frame thickness | 16mm wall plate |
| Hydraulic pump station | 4kw (with air cooling) |
| Cutting section motor | 4kw main motor |
| Production speed | 15-16m/min |
| Control system | Industrial PLC + frequency control (Delta brand) |
| Cutting method | Post-forming double-blade shearing |
| Pull rod | 35mm galvanized |
| Reducer | Type 4 cycloidal series |
| Operation language | Chinese, Russian |
