| Brand Name: | HENGFU |
| MOQ: | 1 Piece |
| Payment Terms: | 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment |

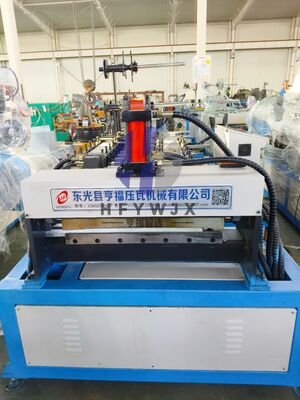

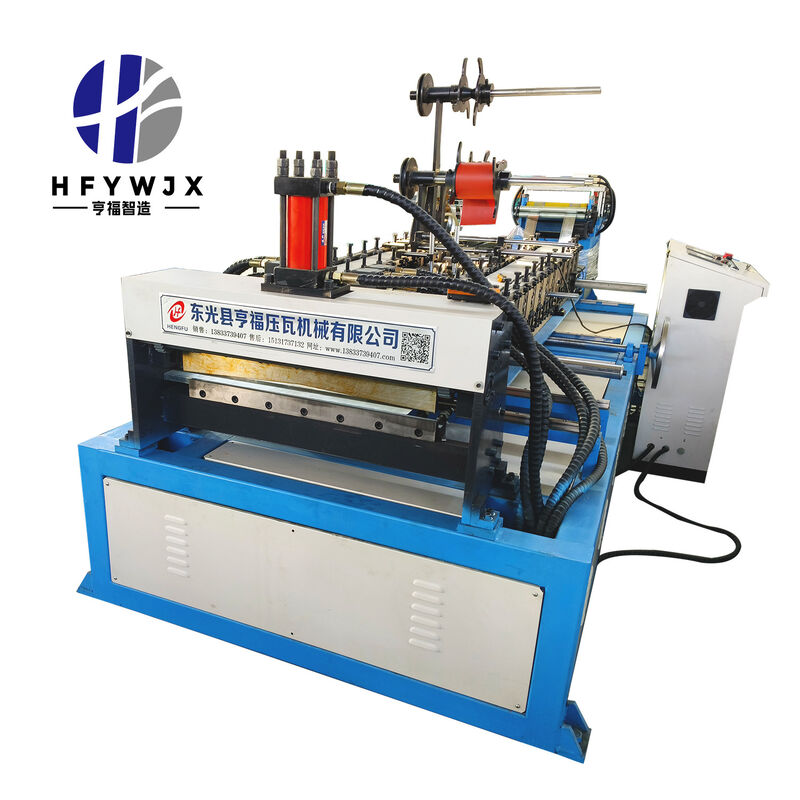

Dongguang Hengfu Roll Forming Machine Co., Ltd. presents a fully automatic flexible connector production line engineered for high efficiency, stable performance, and consistent quality in manufacturing HVAC soft connectors. This integrated system combines precision roll forming, servo feeding, punching, cutting, and material collecting into one continuous workflow, delivering reliable operation and outstanding durability for long-term industrial use.
With mature design, strict quality control, and excellent stability, this production line has become a preferred solution for duct manufacturers worldwide. The system is specially designed to process galvanized steel sheets and fireproof cloth with high compatibility and flexibility.
| Applicable Material | Galvanized sheet (0.3-0.6mm) |
|---|---|

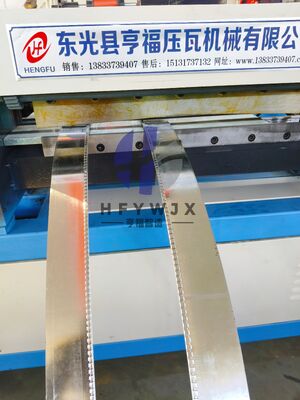

| Galvanized Sheet Width | 50-105mm |
| Fireproof Cloth Width | 120-450mm |

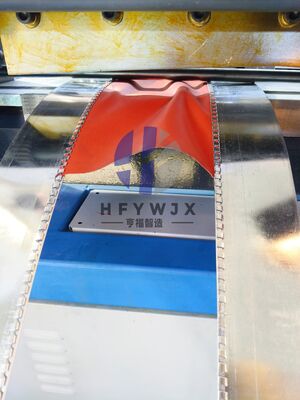

| Finished Product Width | 180-600mm |
| Working Flow | Uncoiling → Servo feeding & punching → Roll forming → Punching → Cutting → Collecting |

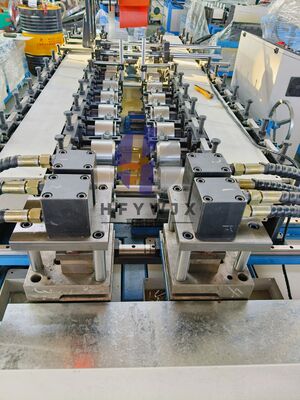

| Forming Stations | 12 rows |
| Main Shaft | Cr40 steel, precision machined |
| Roller Material | Gcr15 bearing steel, 0.05mm hard chrome plated |
| Main Motor | 3KW with cycloidal pinwheel reducer |
| Frame | 80×80 square tube, 14mm thick vertical plate |
| Transmission | Sprocket + gear drive |
| Control System | PLC control cabinet |
| Voltage | 380V/50Hz/3Phase (customizable) |
| Production Speed | 6-8m/min |
| Machine Size | approx. 3.5m × 2m × 1.5m |
| Equipment Configuration | Forming host, punching & cutting dies ×4, servo feeder, hydraulic station, electric uncoiler ×2, electric coiler ×1 |
| Warranty | 1 year free warranty |
