Electric Automatic Duct Flexible Connection Production Line Cr40 Steel Shaft

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Model NO.:

Flexible Connection Production Line

Certification:

CE, SGS

Customized:

Customized

Transmission Method:

Electric

Transmission Mode:

Motor

Transport Package:

Plastic Film & Steel Wire Fixed

Origin:

Dongguang, Cangzhou City, Hebei Province

Production Capacity:

500sets/Year

Tile Type:

Colored Steel

Condition:

Usage:

Roof, Wall

Model:

Flexible Connection Production Line

Cutting Method:

Hydraulic Shearing

Specification:

18000mm*1500mm*1500mm

HS Code:

8455221000

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

flexible connection production line cr40

electric flexible duct connector machine

electric flexible connection production line

Product Description

Reliable Flexible Duct Connector Production Line Automatic Heavy Duty Fabric and Metal Joint Former for Engineering

Product Overview

This fully automatic flexible connector roll forming machine is professionally designed and manufactured by Dongguang Hengfu Roll Forming Machine Co., Ltd. It is primarily used to produce high-quality flexible connectors for ventilation, dust removal, and pipeline systems. With stable performance, high forming accuracy, and strong durability, this machine provides a reliable and efficient production solution for factories worldwide.

Technical Specifications

Item	Specification
Galvanized Sheet Thickness	0.3-0.6 mm
Galvanized Sheet Width	50-105 mm
Fireproof Fabric Width	120-450 mm
Finished Product Width	180-600 mm
Forming Stations	12 stands
Main Shaft Material	Cr40 steel, precision machined
Roller Material	Gcr15 bearing steel, 0.05mm hard chrome plated
Main Motor	3 KW with cycloidal pinwheel reducer
Forming Speed	6-8 m/min
Voltage	380V/50Hz/3Phase (customizable)
Machine Dimensions	Approx. 3.5m * 2m * 1.5m
Control System	PLC automatic control
Frame Structure	80*80 square tube, 14mm thick vertical plate

Key Features

Suitable for galvanized steel sheets (0.3-0.6mm thickness, 50-105mm width)
Supports fireproof fabric with width range of 120-450mm
Adjustable finished connector width from 180mm to 600mm
Integrated production line with uncoiling, servo feeding, punching, roll forming, and material collection
Heavy-duty structure with 12 forming stands for smooth profile forming
High-grade materials including Cr40 steel main shaft and Gcr15 bearing steel rollers
Intelligent PLC control system for automatic coordination
Compact dimensions (3.5m * 2m * 1.5m) for space efficiency

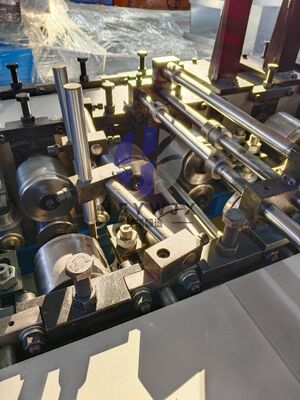

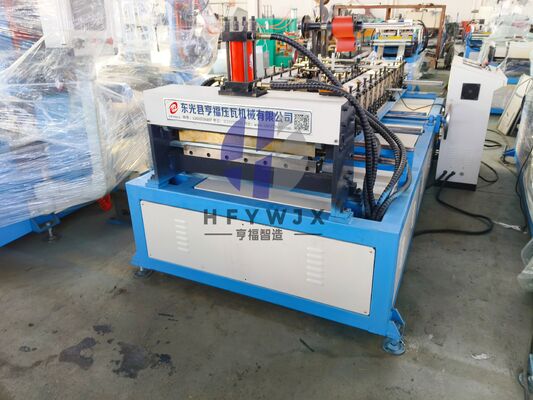

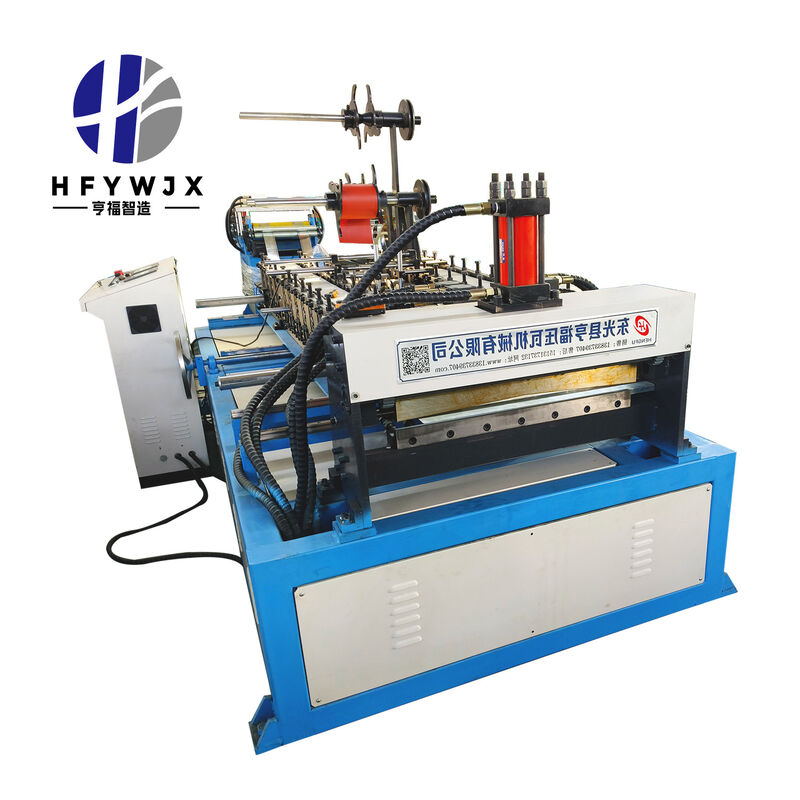

Product Images

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.

What's the delivery time?

Normally it takes about 45 days.

Can the machine produce curved or irregularly shaped panels?

Yes, it can be customized with arching and bending mechanisms to enable the forming of curved roofing tiles.

Can the machine produce stainless steel sheets? What are the requirements for the equipment?

Yes, it can; however, it requires reinforcing the forming frames, increasing the hardness of the rollers, and adjusting the forming process.

Is it normal for burrs to appear on the cut edges of the sheet metal after cutting?

Minor burrs are normal and acceptable; however, severe burrs are typically caused by a dull cutting blade or improper blade clearance.
