Automatic Fence Roll Forming Machine with 16 Rows Rollers Non-stop Flying Shear and 20–23 m/min Speed

This fully automatic fence panel roll forming production line is independently manufactured by Dongguang Hengfu Roll Forming Machinery Co., Ltd. It covers the complete streamlined workflow including coil unwinding, continuous roll forming, online flying cutting, automatic labeling, material conveying, film wrapping and finished panel stacking. The line supports manual, automatic and reverse operation modes, processing galvanized steel and color steel coils to produce standard wave-shaped fence panels with stable high-speed output.

Metal fence panels produced by this line are durable outdoor enclosure materials combining structural strength and decorative appearance, widely used across various scenarios:

• Villas, residential compounds and private courtyards: As attractive anti-rust boundary fences to divide garden spaces and improve overall aesthetic
• Factories, warehouses and logistics yards: Safety perimeter barriers that separate production zones, storage areas and walkways
• Municipal roads, railways and tourist attractions: Impact-resistant protective isolation fences for public safety
• Farms, orchards and breeding grounds: Partition fences to separate planting and breeding areas

With special multi-angle folded cross-section, the panels deliver outstanding rigidity and anti-collision performance. They outperform traditional wire mesh fences with longer outdoor service life, simple field installation and low follow-up maintenance cost, making them a preferred choice for outdoor construction projects.

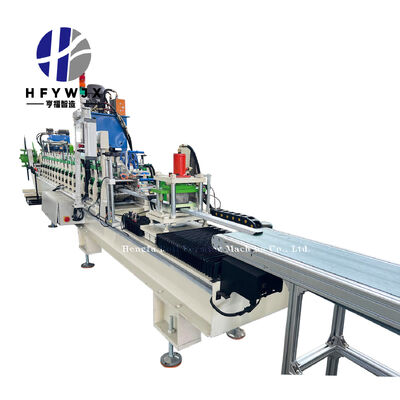

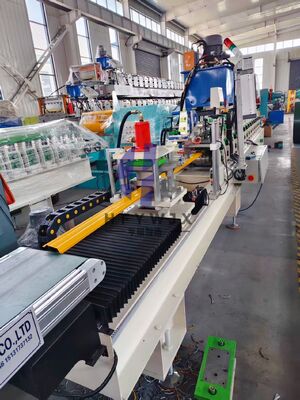

This highly automated integrated line comes with complete auxiliary equipment: 1.5-ton double-head hydraulic decoiler, forming main machine, non-stop flying shear, pneumatic positioning conveyor, two sets of automatic labelers, film wrapping machine and full-automatic stacker. It greatly reduces manual labor and enhances overall production efficiency.

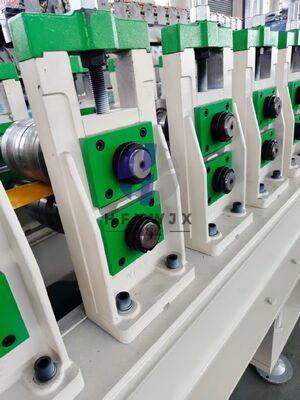

The main forming host adopts heavy-duty 350H steel welded frame with anti-rust treatment and thickened wall plates, fitted with solid thick main shafts. All forming rollers go through precision grinding and hard chrome plating, forming uniform panel waveforms without scratching the coating of raw steel strips. Stable chain transmission is matched with Delta PLC touch screen control system, supporting Chinese and English operation interfaces. A wireless remote controller and top three-color warning light are equipped for easy operation and real-time equipment fault monitoring.

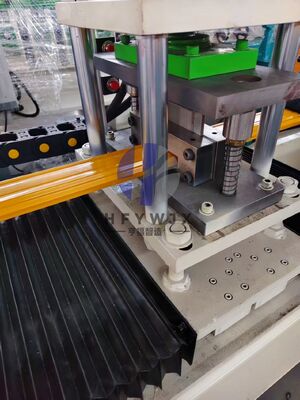

The core non-stop flying shear unit is a major advantage of this equipment. It cuts panels without halting the production line, boosting output greatly while preventing profile deformation during cutting. Hardened Cr12 cutting blades create smooth, burr-free cutting edges and require very little routine maintenance. Dust-proof organ covers and cable drag chains are installed to shield internal moving components and wiring, extending the machine's service life. After cutting, panels automatically finish labeling, anti-scratch film wrapping and neat stacking to realize continuous unmanned processing.

Before delivery, the entire line undergoes full linkage test run to ensure smooth coordination of all stations. Modular design enables easy disassembly and container loading for overseas shipping. If you plan to launch a metal fence manufacturing business or replace old discrete forming equipment, this integrated automatic fence panel production line will effectively upgrade your production capacity and finished product quality.
