Top Hat Automatic Roll Forming Machine 30kw High Speed 50m / min

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: Hat& C profile
Minimum Order Quantity: 1 set
Packaging Details: Suitable for ocean shipment
Delivery Time: 60 working days after received deposit
Supply Ability: negotiation
Detail Information
Main Power: 30kw Hydraulic Power: 11kw
Steel Thickness: 0.8-2.0mm Station: 16 Stations+one Stations Of Rectify
Decoiler: Double Head Uncoiler Machine Structure: Wire Electrode Cutting
Machine Frame: Whole Plate Welding Drive: By Gear Box
Speed: 50m/min
High Light:

Rolling Shutter Strip Making Machine

,

Corrugated Iron Sheet Making Machine


Product Description

Fast Speed Top Hat Roll Forming Machine Drive by gear box with Auto Stacker



Technical data of Top Hat roll forming machine



1. This machine is PLC controlled automatic roll forming machine line.



2. Machine including: double head un-coiler, main body with track cutting part, hydraulic station, control desk, auto stacker.



3. Machine can do Hat and C profile at the same time, when produce the hat profile need to chang some rollers



Spectification

Roller material Gcr15 surface with chrome, HRC58-62 degree
Roller station 16 stations
Shaft diameter ¢70mm material: 40Cr
Machine structure wire electrode cutting
Machine frame whole plate welding
Feeding mode by manual
Main motor 30kw
Hydraulic power 11kw
Servo power 4kw
Material of blade mould Cr12, 58-62 HRC hardness
Cutting system hydraulic post cutting
Suitable material Gi, 0.8-2.0mm
Driven system by gear box
Speed 50m/min
Voltage 415V, 50HZ, 3P
Machine include auto stacker
Machine include 3T double head hydraulic  un-coiler
Machine include cooling system



Maintenance and safety



1. There should be an earth wire independently connected to the ground.



2. Keep cleans all the electric components. Clean them once a month.



3. Do not open the door of the electric box except for cleaning and adjustment.



4. While doing the monthly cleaning, check the insulation and connecting conditions of each electric component. Make sure there is no heat generation or oxidization.



5. The machine: 415V/50HZ, operating parts: AC24V, Please refer to electric principle drawing and table for maintenance.



6. Do not modify system parameter unless the operator is specialized in controlling system

.

7. Once the system does not work properly, please send for specialized technicians or electricians for maintenance.

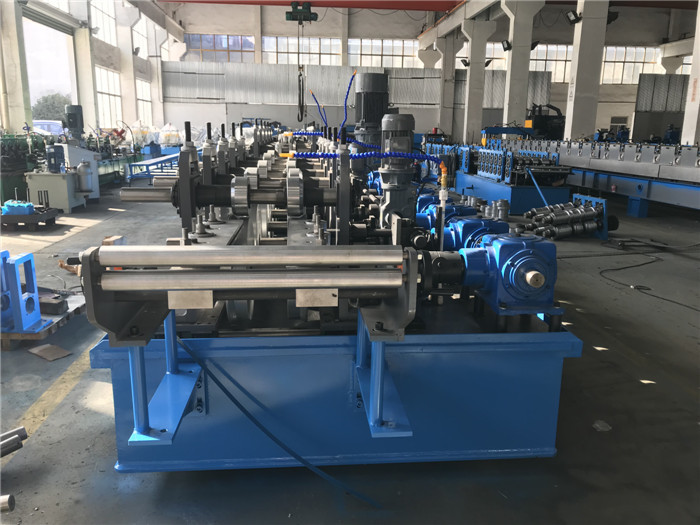

Machine picture for your reference:
