Double Head Decoiler Top Hat Metal Roofing Roll Forming Machine Drive by Gear Box

Basic Information

Place of Origin:	China
Brand Name:	Saibo
Certification:	CE/ISO
Model Number:	Hat& C profile

Minimum Order Quantity:	1 set
Packaging Details:	Suitable for ocean shipment
Delivery Time:	60 working days after received deposit
Supply Ability:	negotiation

Get Best Price Contact Now

Detail Information

Main Power:	30kw	Hydraulic Power:	11kw
Station:	16 Stations+one Stations Of Rectify	Decoiler:	Double Head Uncoiler
Machine Structure:	Wire Electrode Cutting	Machine Frame:	Whole Plate Welding
Drive:	By Gear Box
Highlight:	Rolling Shutter Strip Making Machine , Corrugated Iron Sheet Making Machine

Product Description

Double Head Decoiler Top Hat Roll Forming Machine Drive by gear box 50m/min

Technical data of Top Hat roll forming machine

Spectification

Roller material	Gcr15 surface with chrome, HRC58-62 degree
Roller station	16 stations
Shaft diameter	￠70mm material: 40Cr
Machine structure	wire electrode cutting
Machine frame	whole plate welding
Feeding mode	by manual
Main motor	30kw
Hydraulic power	11kw
Servo power	4kw
Material of blade mould	Cr12, 58-62 HRC hardness
Cutting system	hydraulic post cutting
Suitable material	Gi, 0.8-2.0mm
Driven system	by gear box
Speed	50m/min
Voltage	415V, 50HZ, 3P
Machine include auto stacker
Machine include 3T double head hydraulic un-coiler
Machine include cooling system

Feature

1. This machine is PLC controlled automatic roll forming machine line.

2. Machine including: double head un-coiler, main body with track cutting part, hydraulic station, control desk, auto stacker.

3. Machine can do Hat and C profile at the same time, when produce the hat profile need to chang some rollers

Work flow

3T Double head hydraulic de-coiler→ Flatten→ Roll forming→ Track cutting→ finished supporter.

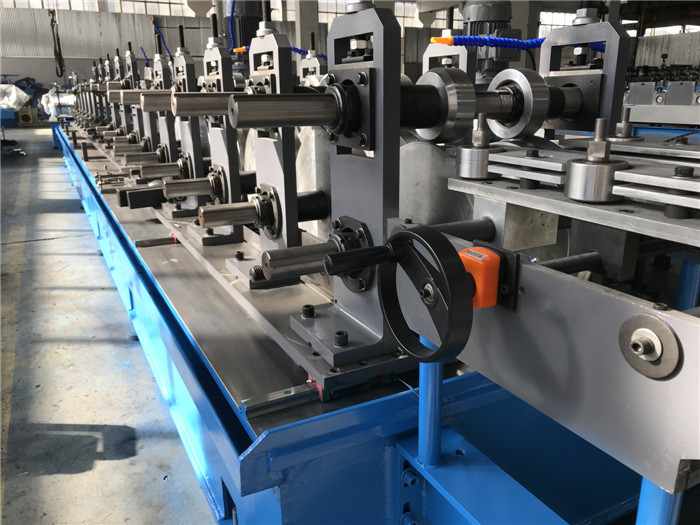

Machine picture for your reference:

Double Head Decoiler Top Hat Metal Roofing Roll Forming Machine Drive by Gear Box 0
