Two Profile Change Top Hat Metal Roll Forming Machine 0.8 - 2.0 Thickness Auto Stacker

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: Hat profile
Minimum Order Quantity: 1 set
Packaging Details: Suitable for ocean shipment
Delivery Time: 60 working days after received deposit
Supply Ability: negotiation
Detail Information
Main Power: 30kw Machine Structure: Wire Electrode Cutting
Machine Frame: Whole Plate Welding Drive: By Gear Box
Blade Material: Cr12 Material: Galvanized Steel, 345-550Mpa
Hydraulic Station: 11kw With Storage Tank And Fan Color: Bule And Yellow
Cutter System: Track Cutting System Servo Motor: 4kw
High Light:

Rolling Shutter Strip Making Machine

,

Corrugated Iron Sheet Making Machine


Product Description

Two Profile Change Top Hat Roll Forming Machine 0.8-2.0 Thickness Auto Stacker

High Speed C&Hat roll forming machine

Work flow
3T Double head hydraulic de-coiler→ Flatten→ Roll forming→ Track cutting→ finished supporter.
Two Profile Change Top Hat Metal Roll Forming Machine 0.8 - 2.0 Thickness Auto Stacker 0
Component

1

Roll forming system

  • Roll forming system consist of machine frame, transmission parts and roll forming rollers etc. The frame consists of base frame and wire-electrode cutting stations, base with welded sections; ensure the equipment rigidity and beautiful appearance.
2

Track cutting system

  • Profile transversal cutting device units allowing to cut the bent profile without damaging the metal coating and to assure a smooth cut included. Cut the sheet after roll forming to required length. The cutting length is controlled by PLC. Change the cutter to realize cutter different profiles.
3

Rectify device

  • Function: make the end product in straight, left and right, up and down
4

The protect cover

  • To avoid accidents, the machine will be covered with the protective mesh. It is easy to take off when need adjust machine.
5

Auto stacker

  • It is mainly used to support the finished panel.
6

Electric system

  • Adopts PLC control technology, frequency adjust speed technology, realize the automatic production.
  • System provides touch screen, which can set the order, for example length, and quantities and so on.
  • Operation type: Touch screen + button
  • Encoder calculates the number, which has calculation and measure the length function.



Spectification

1Roller materialGcr15
2Roller station16 stations+ one station of rectify
3Shaft diameter¢70mm
4Machine structurewire electrode cutting
5Machine framewhole plate welding
6Feeding modeFeeding is adjustable by hand wheel
7Machine power30kw+11kw
8Servo power4kw
9Material of blade mouldCr12, 58-62 HRC hardness
10Cutting systemhydraulic track cutting system
11Suitable materialGi, 0.8-2.0mm
12Driven systemby gear box
13Speed50m/min
14Flatten system7 rollers, Up 3 rollers, down 4 rollers
15Machine include auto stacker
16Machine include 3T double head hydraulic  un-coiler
17Machine include cooling system

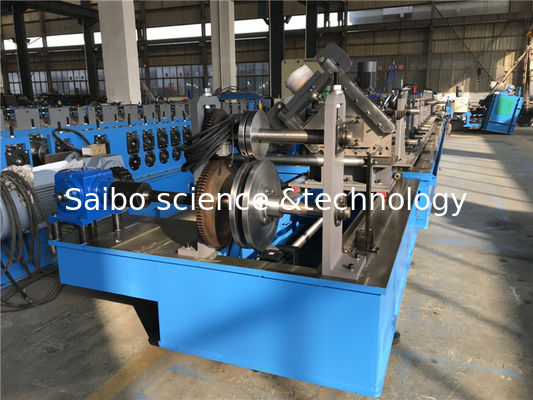

Machine pictures for reference:
Two Profile Change Top Hat Metal Roll Forming Machine 0.8 - 2.0 Thickness Auto Stacker 1

Two Profile Change Top Hat Metal Roll Forming Machine 0.8 - 2.0 Thickness Auto Stacker 2


FAQ
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.

4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.

6) Q: Do you have this roof panel roll forming machine in stock?
A: No, machine is made to order.
