Customized Profile Highway Guard Rail Roll Forming Machine 15 Tons

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/IS09001/SGS
Model Number: 2&3 Waves
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Suitable for ocean shipment
Delivery Time: 65 working days after received deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 280 sets per year
Detail Information
Product Name: Guard Rail Roll Forming Machine Usage: Highway Guardrail
Steel Thickness: 2.6-3.4mm Decoiler: 15 Tons
Power: 45KW+30KW Roller Material: Gcr15 With Chrome Or Black Treatment
Station: 18 Stations Drive: Gear Box
High Light:

customized profile Guard Rail Forming Machine


15 tons Guard Rail Forming equipment


customized Guard Rail Forming equipment

Product Description

Two and Three Waves Guard Rail Roll Forming Machine



All of our machine profile is customized, above profile is only for your reference.

1. Coil width: 486mm/756mm

2. Effective width: according the profile

3. Thickness: 2.6-3.4mm

Customized Profile Highway Guard Rail Roll Forming Machine 15 Tons 0


Customized Profile Highway Guard Rail Roll Forming Machine 15 Tons 1


Customized Profile Highway Guard Rail Roll Forming Machine 15 Tons 2

Hydraulic decoiler—Leveling—Punching—Roll Forming—Cutting—Out table



Item NO




Offered specification

1 Roll Forming Machine



2 Material Width 486mm/756mm
3 Rolling Speed 15m/min
4 Rolling Thickness 2.6-3.4 mm
5 Control System PLC (Panasonic) as list in the note
6 Un Coiler 15 ton hydraulic de-coiler with coil car
7 Leveling Station 1 station (three rollers over four), 7.5kw
8 Servo feeding to punching 5.5kw
9 Punching Two sets

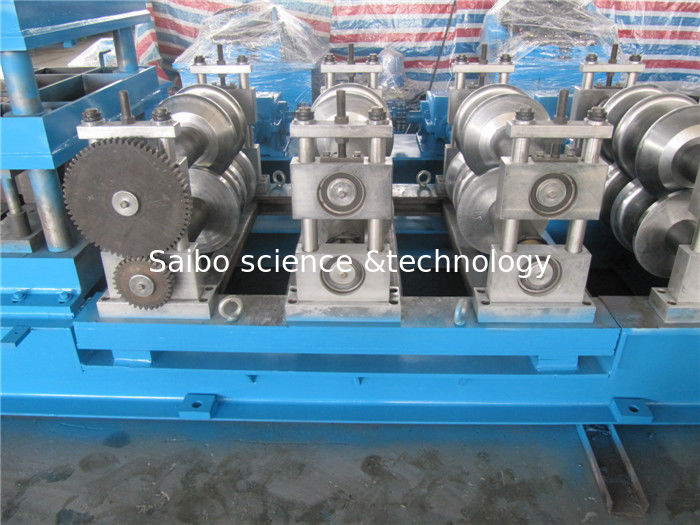

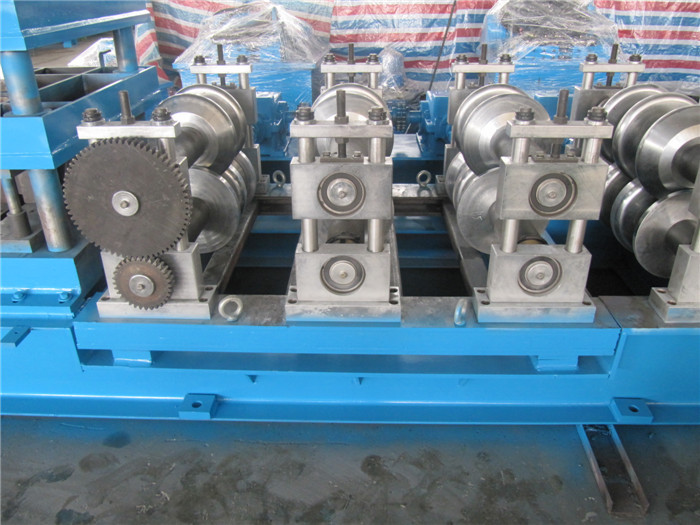

10 Roller Stations 18 stations (according the final design)
11 Roller Material

GCR15, HRC58-62℃

coated with chrome

12 Shaft Material and DIA ¢100mm, material is 45# forge steel
13 Maim Motor Power 45kw
14 Hydraulic Station Power 30kw
15 Hydraulic Pressure 25-30Mpa
16 Cutting mode Hydraulic track cutting by servo motor 5.5kw
17 Material Of Cutting Cr12Mov quenching 58-62℃
18 Structure Of The Stations Guide pillar
19 Tolerance 3m+-1.5mm
20 Electric Source

380V, 50HZ,3 phase

According to customer’s require


21 Way Of Drive By gearbox
22 Color Of The Machine Yellow and blue
23 Container Need 1 x40 feet & 1 x20 feet
24 How to change the profile Change the last three roller stations which is in one cassette

Main Features

1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation when running the machine.

2. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.

3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.

4. It is very easy to install the equipment and suitable for producing in the factory.

5. The machine has features of low noise and high efficiency.
