| Brand Name: | HENGFU |
| MOQ: | 1 Piece |
| Payment Terms: | 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment |

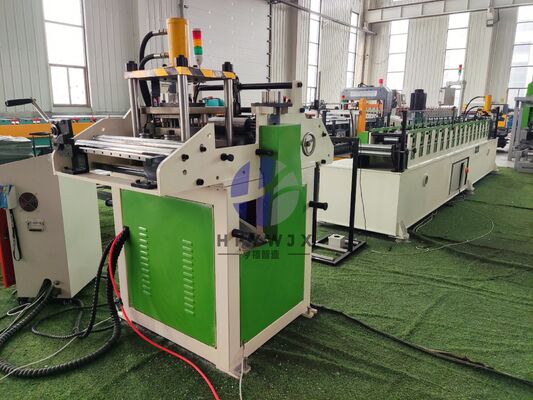

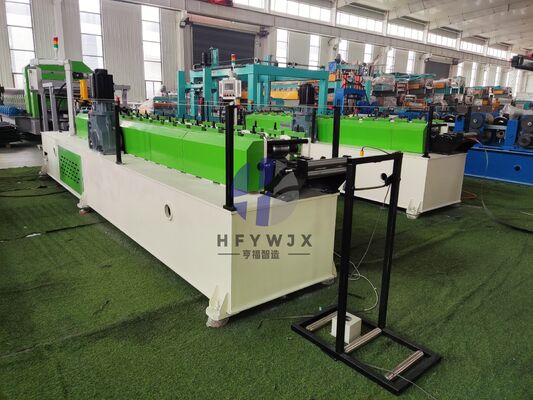

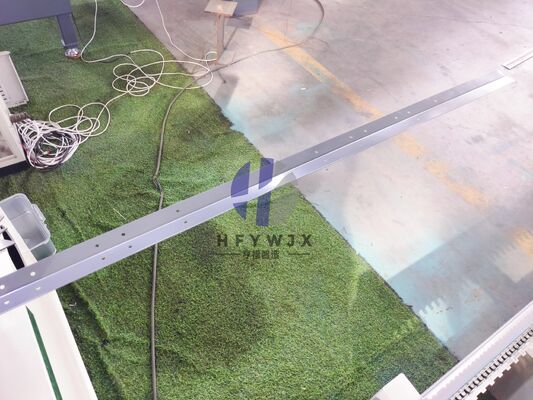

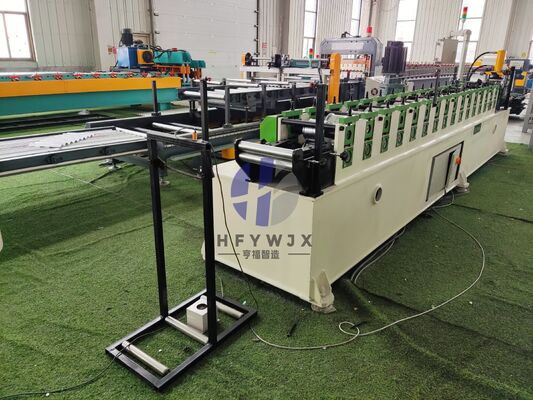

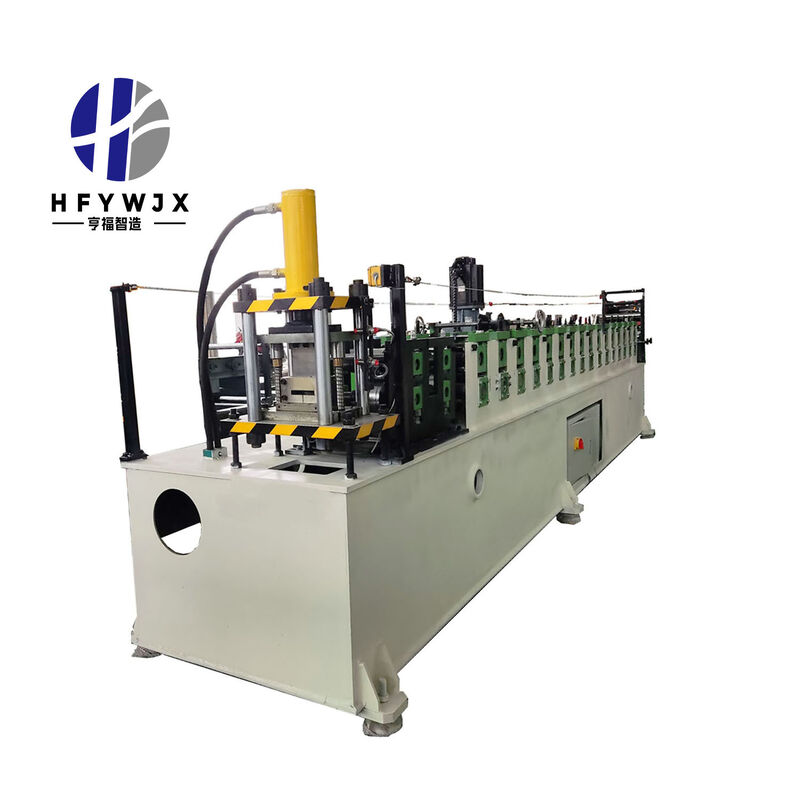

The T-Profile Roll Forming Machine is a professional piece of equipment designed specifically for the mass production of T-shaped metal profiles. This type of profile is an essential structural component, widely utilized in construction projects, ceiling suspension systems, partition frame installations, door frame reinforcement, and curtain wall support systems.
The machine adopts advanced continuous cold roll forming technology. This manufacturing process ensures that the final profiles achieve exceptional dimensional accuracy while maintaining smooth, uniform surface finishes. It eliminates the need for secondary grinding or finishing, saving both time and resources.
Equipped with hardened roller forming stations, the machine guarantees durability and wear resistance during long operating hours. Integrated with PLC automatic control systems, it enables seamless automated operation. The cutting process is executed via hydraulic or servo mechanisms, ensuring stable performance and high production efficiency.
Versatility is a key feature of this machine. It supports the processing of various metal materials, including galvanized steel, carbon steel, stainless steel, and aluminum. Furthermore, the profile dimensions can be fully customized according to the customer's detailed engineering drawings, meeting specific project requirements.
| Frame structure | Precision milling of square boxes |
|---|---|
| Number of molding passes | 16 rows |
| Wall panel thickness | 20mm |
| Feed rack | Two-hand crank feed belt with knife pull |
| Electrical control system configuration | Split touchscreen electrical control box with remote control |
| Screws/Pull Rods | Standard screws, 35 pull rods |
| Roller speed | 0.5m/min, 4m/min |

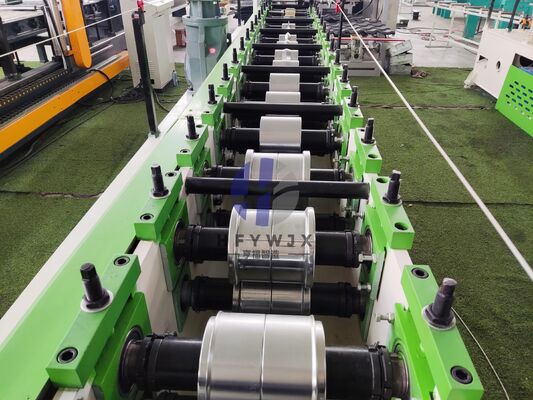

| Forming rollers | 45# steel, rough machining + finish turning + external cylindrical grinding + electroplating, hardness 45-50 HRC |
| Shearing device | 5.5kW servo electric shear |
| Hydraulic pump power | 4KW |
| Rack | Freestanding rack |
|---|---|
| Feeding device | Servo feeding |
| Feeding motor power | 1.5 kW servo motor |
It simply requires a level concrete floor; no complex foundation is necessary.
It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.
Cold-formed materials such as color-coated steel, galvanized steel, aluminum-magnesium-manganese alloy, and stainless steel.
Standard models are typically designed to produce one specific profile type per machine. However, customizable models—such as those with interchangeable rollers, double-layer machines, or triple-layer machines—can be configured to enable a single machine to serve multiple purposes.
The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
