| Brand Name: | HENGFU |
| MOQ: | 1 Piece |
| Payment Terms: | 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment |

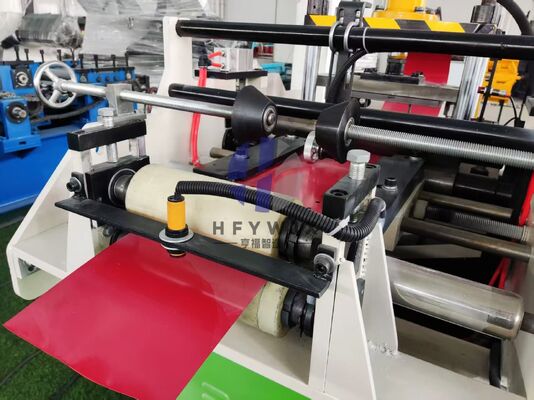

Dongguang Hengfu Machinery Co., Ltd.'s cold roll forming machine is a cutting-edge production system engineered for high-precision steel profile manufacturing. It delivers superior product consistency and durable long-term reliability during operation. With heavy-duty high-quality rollers, rigid welded body structure and precise forming stations, the machine ensures smooth profile surface, accurate dimensional control and stable performance throughout continuous automated production.
Powered by an advanced full-automatic PLC control system, this production line completes coil loading, flattening, guiding correction, roll forming, servo shearing and finished product delivery in one continuous automated workflow. The intuitive operator interface enables easy parameter adjustment, fast profile model switching and real-time operation monitoring, guaranteeing safe, efficient and steady production performance.
The machine supports processing a wide range of metal raw materials, including galvanized steel, color coated steel, cold rolled steel and aluminum sheets. We offer complete customized design services, covering profile structure, material thickness, forming line speed, forming station number, cutting technology and optional famous electrical brands.
Our cold roll forming technology has extensive applications in roofing sheets, wall panels, C/Z/U purlins, metal floor decks, drainage pipes, door frames, cable trays and structural steel components. It perfectly fits construction projects, steel building systems, industrial warehouses, manufacturing plants and large metal structure processing projects.
| Frame structure | Precision milling of square boxes |
| Number of forming rows | 14 rows |
| Wall panel thickness | 20mm |
| Material feeder | Two-hand crank feeder with pull cutter |
| Transmission method | Gear drive |
| Forming roller shaft | 50mm solid shaft |
| Cutting device type | Hydraulic shears |
| Hydraulic pump power | 4 kW |
| Tool material | CR12 Mov, hardened to 58-62 kW |
| Frame | Independent frame |
| Feeding device | Servo feeder |
| Feeding motor power | 1.5 kW (servo motor) |
