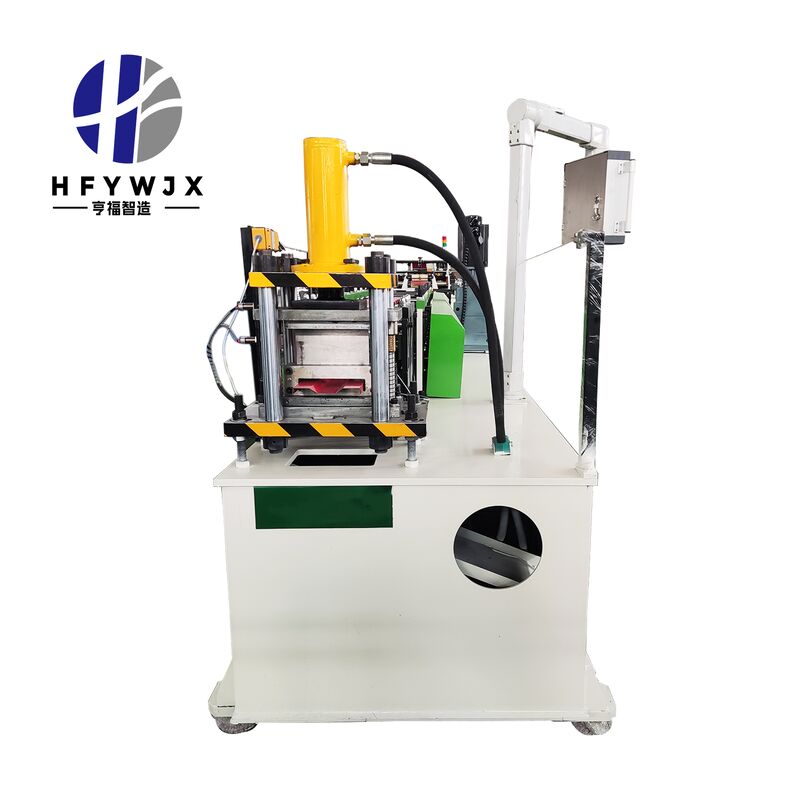

Customizable M Shaped Cold Bending Machine With PLC Control System Precise

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Model NO.:

M-shaped Cold Bending Forming Equipment

Tile Type:

Colored Steel

Certification:

CE, SGS

Condition:

New

Customized:

Customized

Usage:

Roof, Wall

Transmission Method:

Electric

Feed Width:

198±5 Mm

Control System:

PLC

Hydraulic Pump Power:

4kw

Specification:

5100mm*900mm*2000mm

Package Size:

510.00cm * 90.00cm * 200.00cm

Package Gross Weight:

2500.000kg

HS Code:

8455221000

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

m shaped cold bending machine

customizable cold bending machine

customizable cold bending equipment

Product Description

Customizable M-shaped Cold Bending Equipment – Ensure Flexible, Precise, and Reliable Custom Production

Dongguang Hengfu Machinery Co., Ltd. independently develops and produces high-performance cold roll forming machines. As a modern production system, it specializes in processing high-precision steel profiles, with excellent product uniformity and durable long-term operation performance. With premium rolling rollers, sturdy welded structure and precise forming stations, it guarantees smooth surface finish, strict dimensional tolerance and stable performance during uninterrupted production.

Adopting a fully automatic PLC frequency control system, the production line completes coil loading, flattening, deviation correction, forming, servo cutting and discharging in one continuous procedure. The easy-to-operate human-machine interface realizes flexible parameter adjustment, rapid profile switching and dynamic production monitoring, greatly improving production safety and operation efficiency.

This forming machine supports processing various metal materials, including galvanized steel sheet, color coated steel sheet, cold rolled steel sheet and aluminum sheet. We offer comprehensive customized solutions covering profile shape, material thickness, forming speed, station configuration, cutting mode and famous-brand electrical components.

Cold roll forming technology from our company is extensively used for manufacturing roofing materials, wall boards, purlins, metal floor decks, drainage systems, door frames, cable trays and structural steel parts. It is highly suitable for steel buildings, industrial plants, warehouse construction and large-scale metal processing projects.

Technical Specifications

Roll Forming Part

Frame structure	Precision milling of square boxes
Number of forming rows	14 rows
Wall panel thickness	20mm
Material feeder	Two-hand crank feeder with pull cutter
Transmission method	Gear drive
Forming roller shaft	50mm solid shaft
Cutting device type	Hydraulic shears
Hydraulic pump power	4 kW
Tool material	CR12 Mov, hardened to 58-62 kW

Punching Section

Frame	Independent frame
Feeding device	Servo feeder
Feeding motor power	1.5 kW (servo motor)

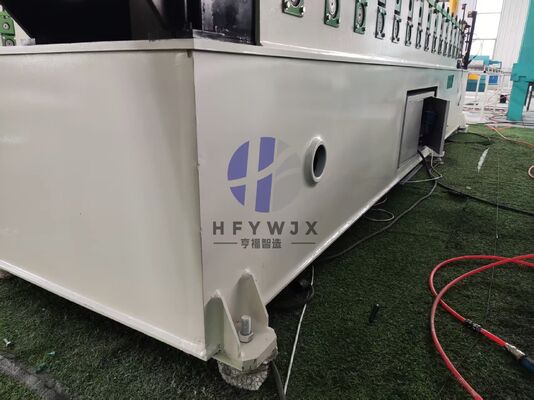

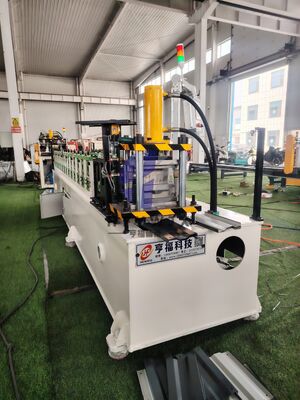

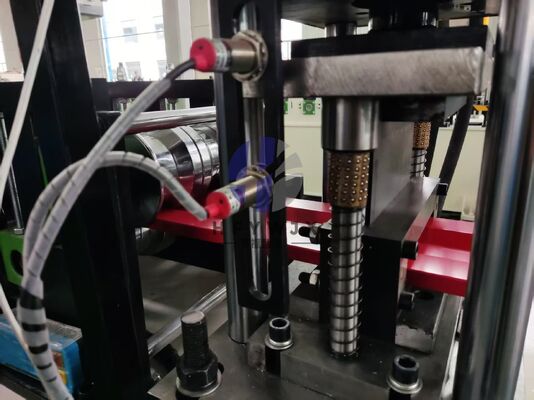

Product Gallery

Frequently Asked Questions

Can the machine produce curved or irregularly shaped panels?

Yes, it can be customized with arching and bending mechanisms to enable the forming of curved roofing tiles.

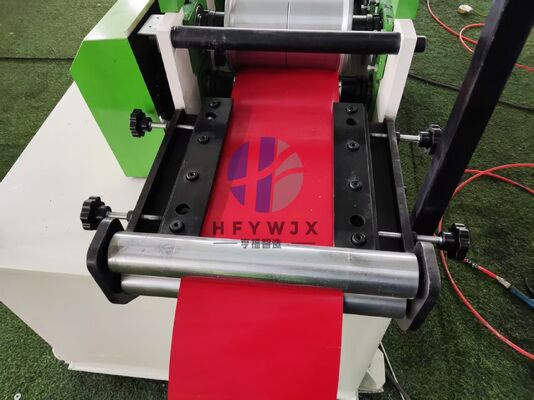

Is there a leveling device at the material inlet?

It is equipped with a set of leveling rollers to ensure flat feeding and prevent waves or distortion in the sheet material.

Is the electrical system susceptible to moisture damage?

The electrical cabinet features a dust-proof and moisture-resistant design, allowing it to operate normally even within a simple outdoor shelter.

Can the machine produce stainless steel sheets? What are the requirements for the equipment?

Yes, it can; however, it requires reinforcing the forming frames, increasing the hardness of the rollers, and adjusting the forming process.

Is it normal for burrs to appear on the cut edges of the sheet metal after cutting?

Minor burrs are normal and acceptable; however, severe burrs are typically caused by a dull cutting blade or improper blade clearance.
