High Precision M Shaped Cold Bending Forming Equipment With PLC Control System

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Model NO.:

M-shaped Cold Bending Forming Equipment

Tile Type:

Colored Steel

Certification:

CE, SGS

Condition:

New

Customized:

Customized

Usage:

Roof, Wall

Transmission Method:

Electric

Feed Width:

198±5 Mm

Control System:

PLC

Hydraulic Pump Power:

4kw

Specification:

5100mm*900mm*2000mm

Package Size:

510.00cm * 90.00cm * 200.00cm

Package Gross Weight:

2500.000kg

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

cold bending forming equipment

M shaped cold bending equipment

PLC cold bending forming equipment

Product Description

High Precision Cutting M-shaped Cold Bending Forming Equipment

Dongguang Hengfu Machinery Co., Ltd. specializes in manufacturing premium M-shaped cold roll forming machinery. This upgraded automated production system focuses on the precision manufacturing of steel profiles, bringing excellent batch repeatability and long service stability to users. Equipped with heavy-duty high-hardness rollers, firm sealed welded frame and independent precision forming modules, the machine maintains neat smooth surface, strict dimensional tolerance and stable running state during long-time uninterrupted continuous production.

The whole production line adopts a high-standard fully automatic PLC intelligent control system. It completes coil unwinding, material straightening, deviation correction, cold bending forming, servo precision cutting and finished product delivery in one closed continuous workflow. The intuitive easy-operate touch terminal supports fast parameter adjustment, rapid profile specification switching and real-time production data monitoring, effectively ensuring safe, steady and efficient processing operation.

This M-shaped cold bending forming machine supports processing various metal substrates, including galvanized steel, color coated steel, cold rolled steel and aluminum sheets with different thickness ranges. Dongguang Hengfu Machinery provides full customized services according to customer requirements, such as profile shape design, processing thickness configuration, adjustable forming speed, station quantity matching, cutting mode selection and optional famous electrical brands.

The professional cold roll forming technology adopted by this machine is extensively applied to the production of roofing sheets, wall panels, C/Z/U purlins, metal floor decking plates, gutters, downpipes, door frames, cable trays and various steel structural components. It is an ideal professional processing equipment for construction engineering projects, steel building systems, industrial warehouses, manufacturing factories and large-scale metal structural fabrication projects.

Technical Specifications

Roll Forming Part

Frame structure	Precision milling of square boxes
Number of forming rows	14 rows
Wall panel thickness	20mm

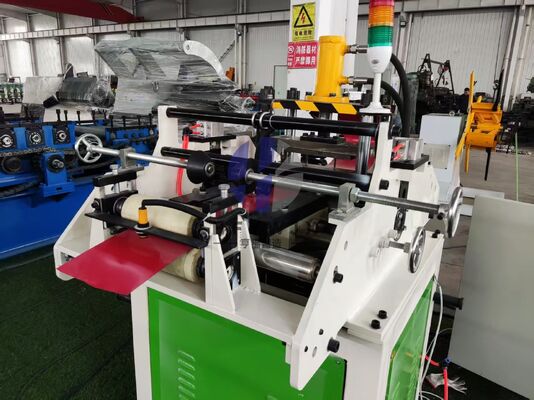

Material feeder	Two-hand crank feeder with pull cutter
Transmission method	Gear drive
Forming roller shaft	50mm solid shaft

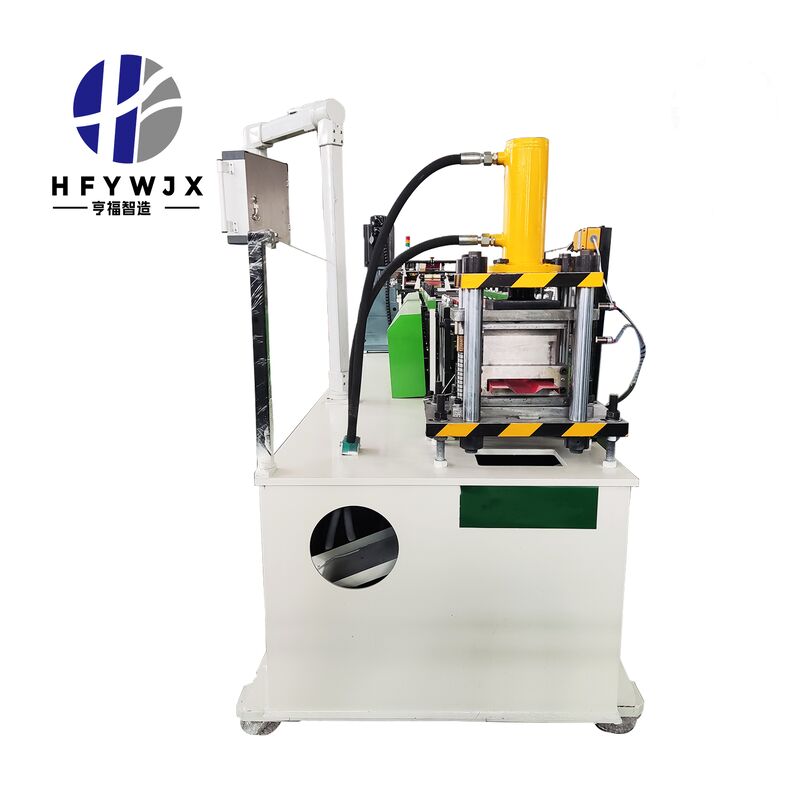

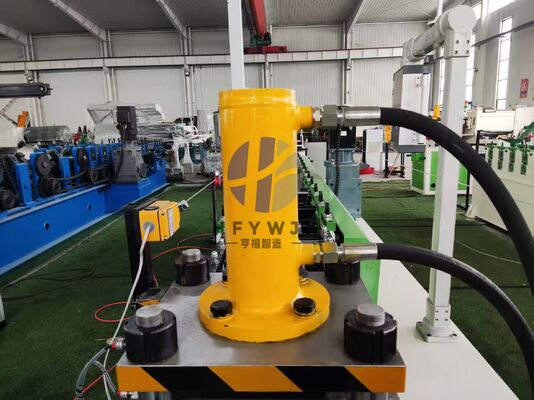

Cutting device type	Hydraulic shears
Hydraulic pump power	4 kW
Tool material	CR12 Mov, hardened to 58-62 kW

Punching Section

Frame	Independent frame
Feeding device	Servo feeder
Feeding motor power	1.5 kW (servo motor)

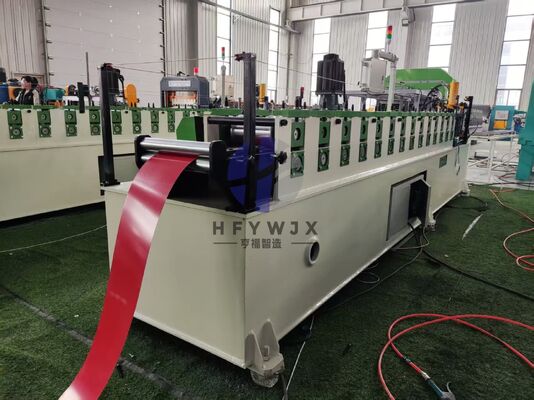

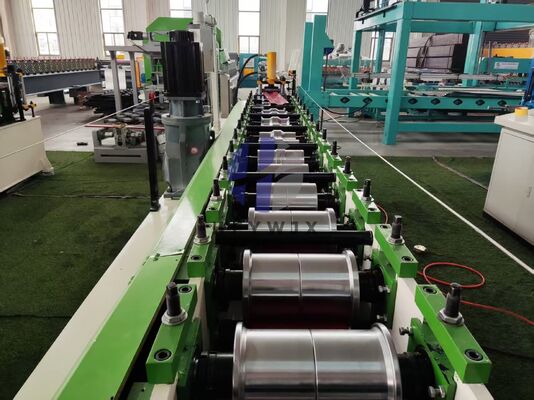

Product Gallery

Frequently Asked Questions

Will the machine scratch the surface coating of the color-coated steel sheets during production?

With precision-ground and polished rollers, combined with a properly designed forming process, the machine will not scratch the sheet surface under normal operating conditions.

What's the delivery time?

Normally it takes about 45 days.

What checks need to be performed before starting the machine?

Check the lubrication, voltage, emergency stop button, cutter position, feed guides, etc.

Can the machine produce stainless steel sheets? What are the requirements for the equipment?

Yes, it can; however, it requires reinforcing the forming frames, increasing the hardness of the rollers, and adjusting the forming process.

Is it normal for burrs to appear on the cut edges of the sheet metal after cutting?

Minor burrs are normal and acceptable; however, severe burrs are typically caused by a dull cutting blade or improper blade clearance.
