High Speed U-channel Cold Roll Forming Machine with PLC Touch Screen Control and Hydraulic Double-Blade Cut for Metal Buildings

Detail Information

Product Description

Detail Information

Raw Material:

PPGI Color Steel Coil

Feeding Width:

Finished Effective Width:

Processable Thickness:

0.3–0.6mm

Forming Speed:

12–15m/min

Forming Stations:

16 Rows With Punching Roller

Main Motor:

4kw With 5.5kw Inverter

Cutting Mode:

3kw Hydraulic Double-blade Cut

Control System:

PLC Touch Screen

Power Supply:

380V/50Hz Three-phase

Length Tolerance:

Product Description

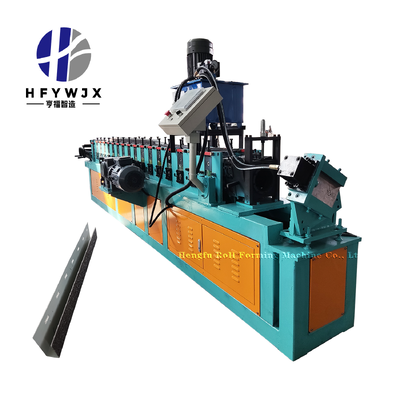

High Speed U-channel Cold Roll Forming Machine

Manufactured by Dongguang Hengfu Roll Forming Machine Co., Ltd., this fully automatic small U channel forming machine completes the entire production process from coil feeding, punching, roll forming to fixed-length cutting. It processes regular color steel plates and produces standard U-shaped strips widely used for construction accessories, support frames, and decoration parts.

The machine runs stably at a moderate forming speed, making it well-suited for small and medium batch production demands for metal profiles.

Robust Construction & Quality Components

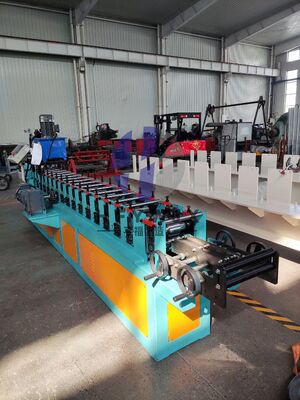

Solid square tube welded frame with 14mm integrated wall panels for stable operation during long continuous shifts

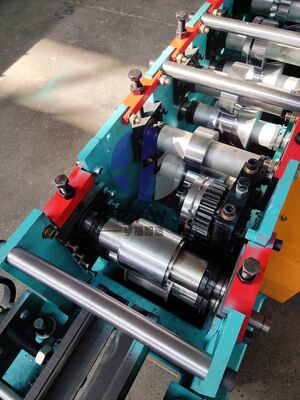

All forming and punching rollers made of 45# steel with precise turning, quenching, and chrome plating for smooth forming and scratch-free material surfaces
Gear transmission matched with cycloid reducer ensures steady power output
High-strength grade 8.8 fasteners prevent structural looseness during extended operation

Precision Control & Cutting System

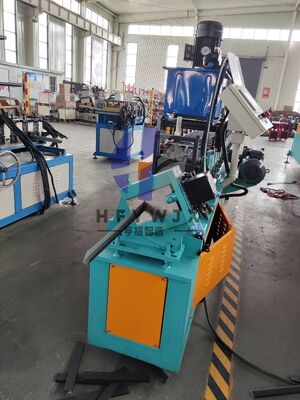

Hydraulic double-blade cutting system with split PLC touch screen control cabinet
Achieves precise length control within ±1mm tolerance
Cutting blades made of Cr12 material deliver clean, burr-free cuts with minimal daily maintenance
Touch screen control system supports easy parameter setup
Standard safety electrical components including limit switches ensure safe operation

Practical Features & Quality Assurance

Hand-crank feeding stand keeps steel coils aligned during feeding

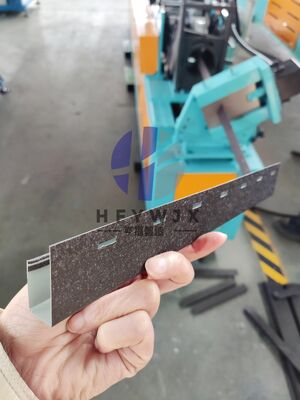

Built-in punching roller integrates punching and forming in one process
Every machine undergoes full test running before delivery
Easy container loading for overseas shipment
Factory inspection or remote video testing available before shipment

Technical Specifications

Item	Specification
Model	YX-40-25-17
Manufacturer	Dongguang Hengfu Roll Forming Machine Co., Ltd.
Raw Material	PPGI color steel coil
Feeding Width	85mm
Finished Effective Width	17mm
Processable Thickness	0.3-0.6mm
Forming Speed	12-15m/min
Forming Stations	16 rows with punching roller
Main Motor	4kw with 5.5kw inverter
Cutting Mode	3kw hydraulic double-blade cut
Control System	PLC touch screen
Power Supply	380V/50Hz three-phase
Length Tolerance	±1mm

Frequently Asked Questions

Can the voltage be customized to meet our country's standards?

Yes: 380V/220V, 50Hz/60Hz—both three-phase and single-phase options are available.

How can issues such as skewed or off-center sheet feeding be resolved?

The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.

Can the machine produce curved or irregularly shaped panels?

Yes, it can be customized with arching and bending mechanisms to enable the forming of curved roofing tiles.

Will the machine's precision be compromised during transport?

Thanks to its fully welded structure and reinforced packaging, transportation will not affect the precision of the rollers or the machine frame.

Is there a leveling device at the material inlet?

It is equipped with a set of leveling rollers to ensure flat feeding and prevent waves or distortion in the sheet material.

Tags:

Automatic U-channel Roll Forming Machine with 16 Rows Punching Roller, PLC Touch Screen Control, and Hydraulic Double-Blade Shear
