Automatic U-channel Roll Forming Machine with 16 Rows Punching Roller, PLC Touch Screen Control, and Hydraulic Double-Blade Shear

Detail Information
Product Description
Detail Information
Feeding Width:
85mm
Finished Effective Width:
17mm
Machinable Thickness:
0.3–0.6mm
Production Speed:
12–15m/min
Forming Rows:
16 Rows With Punching Roller
Main Power:
4kw Motor + 5.5kw Inverter
Cutting Unit:
3kw Hydraulic Double-blade Shear
Control Mode:
PLC Touch Screen
Power Supply:
380V/50Hz Three-phase
Length Accuracy:
±1mm
Product Description
Advanced Steel U-channel Production Line Automatic High Performance Metal Track Profile Making Machine
Dongguang Hengfu Roll Forming Machine Co., Ltd. manufactures this all-in-one small U channel forming machine, integrating feeding, punching, roll forming and hydraulic cutting into one automatic production line. The finished U profiles are widely adopted in construction supports, decorative fittings and light metal frames.
Running at a steady speed of 12-15 m/min, it suits small and medium batch production for metal processing factories. The whole machine is built with square tube welded frame and 14mm integrated wall plates, offering great structural stability for long-time continuous work.
Premium Construction & Components
  • Forming and punching rollers made of 45# steel, processed through fine turning, tempering and chrome plating
  • Gear transmission and cycloid reducer provide stable power
  • Grade 8.8 high-strength fasteners reduce loose parts during operation
  • Scratch-free and uniform surface finish on steel profiles
Precision Control & Cutting System
  • Hydraulic double-blade cutting system with Cr12 cutting blades
  • Independent PLC touch screen control system
  • Length deviation within ±1mm for unified product sizes
  • Clean edges without burrs and low maintenance workload
  • Easy-to-operate touch screen with standard limit switches
Practical Auxiliary Features
  • Hand crank feeding stand prevents material deviation
  • Extra punching roller combines punching and forming into one process
  • Full trial running before delivery checks all functional modules
  • Smooth production startup after installation
Global Export Capability
With rich export experience for various metal forming machines, this small U profile machine features a compact structure that facilitates container transportation to overseas markets. Clients can visit our factory for physical inspection or watch online test runs in advance.
Technical Specifications
Item Specification
Model YX-40-25-17
Manufacturer Dongguang Hengfu Roll Forming Machine Co., Ltd.
Applicable Material PPGI color steel coil
Raw Material Width 85mm
Finished Effective Width 17mm
Processing Thickness 0.3-0.6mm
Running Speed 12-15m/min
Forming Passes 16 rows with punching roller
Main Motor 4kw motor with 5.5kw inverter
Cutting System 3kw hydraulic double-blade shear
Control System PLC touch screen
Power Supply 380V/50Hz three-phase
Length Tolerance ±1mm
Product Gallery

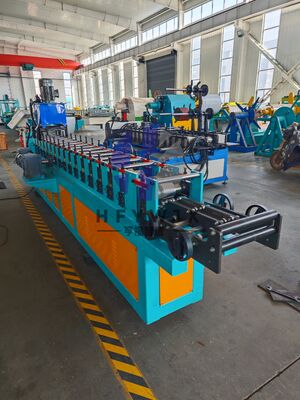

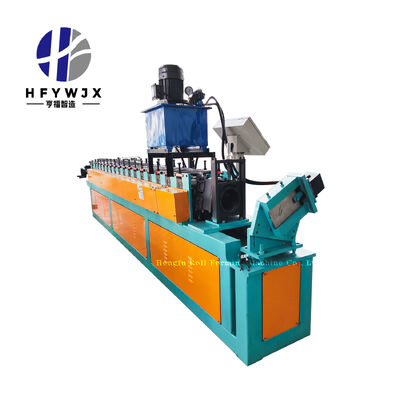

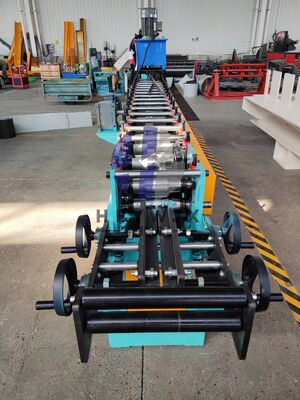

Advanced Steel U-channel Production Line overview Close-up of U-channel forming mechanism Control panel and operating interface
Frequently Asked Questions
What materials is this machine suitable for?
Cold-formed materials such as color-coated steel, galvanized steel, aluminum-magnesium-manganese alloy, and stainless steel.
What is the structure of the machine frame?
It features a fully welded steel plate frame, constructed from thickened steel plates that have undergone stress-relieving annealing to ensure they remain free from deformation.
Do you have customers for your equipment in our country?
Yes, we have established customers in the Middle East, North Africa, and various European countries.
What is the difference between your machines and cheaper alternatives?
  • Thicker machine frame that resists deformation even after prolonged use
  • High precision rollers ensuring standard and consistent panel profile
  • Stable cutting system guaranteeing precise length accuracy
  • Low failure rate and maintenance costs
  • Significantly longer service life
Additional view of U-channel production line operation
