PLC Controlled U Channel Roll Forming Machine with 16 Rows Punching Roller and Hydraulic Double-Blade Shear

Detail Information
Product Description
Detail Information
Feeding Width:
85mm
Finished Effective Width:
17mm
Processing Thickness:
0.3–0.6mm
Forming Speed:
12–15m/min
Forming Stations:
16 Rows With Punching Roller
Main Motor:
4kw Motor With 5.5kw Inverter
Cutting System:
3kw Hydraulic Double-blade Shear
Control System:
PLC Touch Screen
Power Supply:
380V/50Hz Three-phase
Length Tolerance:
±1mm
Product Description

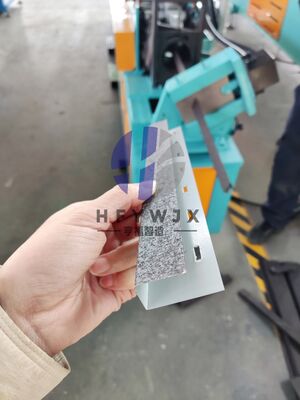

Industrial U Channel Section Roll Forming Mill
Dongguang Hengfu Roll Forming Machine Co., Ltd. developed this integrated small U profile roll forming machine, which completes feeding, punching, shaping and hydraulic cutting automatically in one flow. The finished U-shaped strips are commonly used for building brackets, hardware accessories and light-duty frames, ideal for factories with medium-volume processing demands. The machine runs at a stable 12-15m/min, matching regular daily production schedules of metal profile manufacturers.
The equipment adopts square tube welded frame paired with 14mm integrated wall panels to maintain steady performance during long continuous shifts. All forming and punching rollers are made of 45# steel with precision machining, tempering and chrome plating treatment, ensuring smooth profile surfaces without damaging the coating of raw color steel. Gear transmission and cycloid reducer deliver consistent power output, while high-strength fasteners lower the frequency of regular tightening and maintenance.

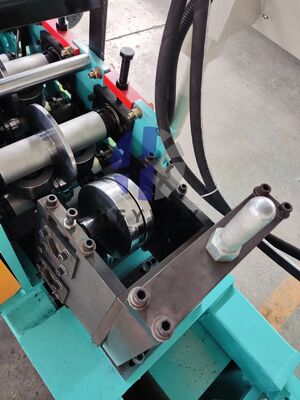

Equipped with hydraulic double-blade cutting structure and split PLC touch screen control cabinet, this machine controls finished product length error within ±1mm for consistent sizing. Cr12 material cutting blades deliver burr-free clean cuts and do not require frequent replacement. The touch screen control interface is straightforward to adjust parameters, and complete supporting electrical components such as limit switches are equipped to secure daily operation.
Practical auxiliary parts optimize your on-site production efficiency. The hand-crank feeding rack fixes steel coils to prevent shifting during processing, and the built-in punching roller realizes punching and forming in a single step, eliminating an extra independent working procedure. Every machine produced by our factory undergoes full test running before shipment to inspect all functions, allowing customers to launch production right after installation.
We specialize in exporting roll forming equipment to global markets. This small U profile machine features compact overall dimensions, making container loading and sea transportation convenient. Buyers can inspect the machine on-site or watch remote test videos before placing orders. Whether you are a new investor entering the metal processing industry or expanding your existing production line, this multi-functional, stable forming line is a suitable choice for your workshop.
Technical Specifications
Item Specification
Model YX-40-25-17
Manufacturer Dongguang Hengfu Roll Forming Machine Co., Ltd.
Process Material PPGI color steel sheet
Feeding Width 85mm
Finished Effective Width 17mm
Machinable Thickness 0.3-0.6mm
Production Speed 12-15m/min
Forming Rows 16 rows with punching roller
Main Power 4kw motor + 5.5kw inverter
Cutting Unit 3kw hydraulic double-blade shear
Control Mode PLC touch screen
Power Supply 380V/50Hz three-phase
Length Accuracy ±1mm
Product Images

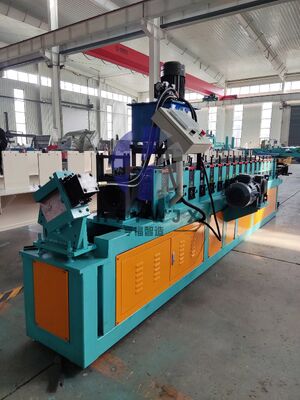

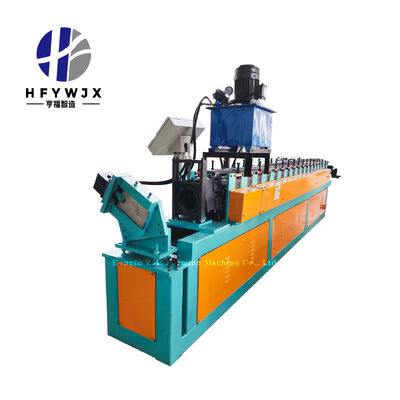

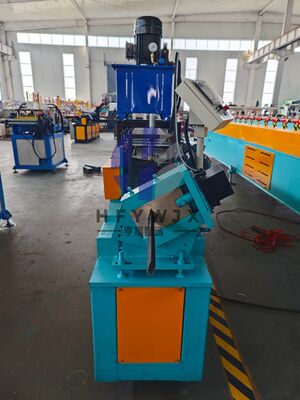

Industrial U Channel Roll Forming Machine - Front View Industrial U Channel Roll Forming Machine - Side View Industrial U Channel Roll Forming Machine - Control Panel
Frequently Asked Questions
What are the available cutting methods?
Hydraulic Flying Shear
Servo Tracking Flying Shear (Higher precision, faster speed, burr-free cuts)
Can it be connected to an automatic stacker?
Yes, optional systems for automatic material collection, automatic stacking, and automatic counting are available.
Can it be integrated into a complete color steel production line?
Yes, it can--forming a fully automated line covering uncoiling, leveling, roll forming, shearing, and stacking.
Can a laminating machine be added?
Yes, it allows for an integrated production line combining lamination and forming.
Can the voltage be customized to meet our country's standards?
Yes: 380V/220V, 50Hz/60Hz--both three-phase and single-phase options are available.
Industrial U Channel Roll Forming Machine - Production Line Setup
