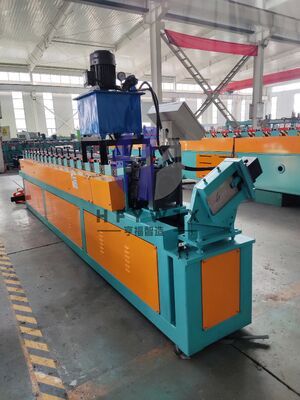

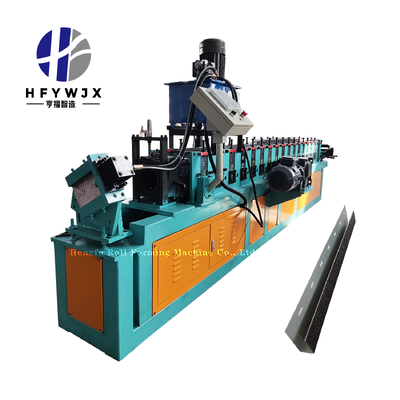

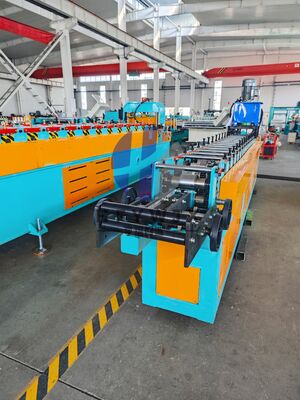

Durable High Precision Automatic U Channel Forming Machine for Metal Strut Channel Cold Roll Former

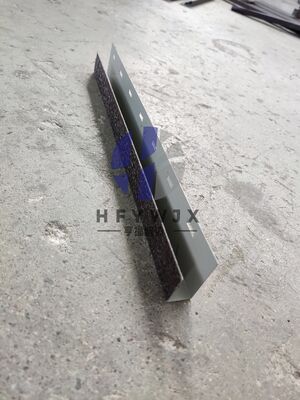

Produced by Dongguang Hengfu Roll Forming Machine Co., Ltd., this integrated U-shape forming machine combines punching, roll forming and hydraulic cutting in one automatic line. It processes color steel sheets to produce standard small U profiles widely used for building brackets, trim accessories and light frame parts. With stable running speed between 12-15 meters per minute, it perfectly matches medium-volume production demands for metal profile manufacturers.

The machine adopts square tube welded frame matched with 14mm integrated wall panels to maintain stable operation during long continuous shifts. All forming and punching rollers are made of 45# steel after precision turning, tempering and chrome plating, which guarantees smooth profile surfaces without scratching the coating of raw materials. Gear transmission paired with cycloid reducer delivers steady power output, while high-strength grade 8.8 fasteners effectively avoid loose parts and reduce routine maintenance frequency.

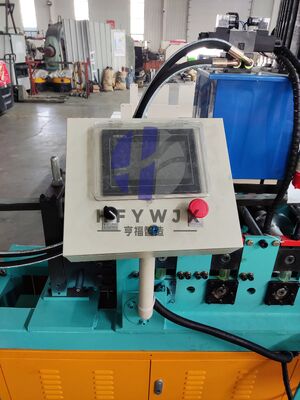

Equipped with hydraulic double-blade cutting unit and split PLC touch screen control cabinet, the machine controls finished product length error within ±1mm for consistent sizes. Cr12 cutting blades create smooth, burr-free cut ends and require little regular upkeep. The touch screen interface simplifies parameter adjustment, and complete supporting electrical components including limit switches are installed to ensure safe operation for all operators.

User-friendly auxiliary designs effectively lower labor input on site. The hand-operated feeding rack prevents material offset during processing, and the built-in punching roller realizes one-step forming with holes, saving separate punching procedures. Every machine from Dongguang Hengfu will complete full trial operation before delivery to check all functions, so buyers can start production smoothly after installation.

As an experienced profile machinery exporter, Dongguang Hengfu provides consistent technical support for this small U profile machine. Its compact layout enables convenient container loading for overseas delivery. Customers can choose on-site factory inspection or remote video test before shipment. Whether you are new to metal profile processing or expanding your existing production capacity, this multi-functional, low-fault forming line is a cost-effective production equipment choice.
