High Speed 20-23 m/min Fence Roll Forming Machine with 16 Rows of Rollers and Non-stop Flying Shear

Developed and built by Dongguang Hengfu Roll Forming Machinery Co., Ltd., this integrated fence panel roll-forming line delivers fully automated manufacturing. It handles the complete workflow including decoiling, roll forming, non-stop flying cutting, automatic labeling, material transfer, protective film wrapping, and finished-product stacking. Operators can select manual, automatic, or reverse mode as needed. The system works with galvanized and color-coated steel coils to produce corrugated metal fence panels at high, consistent line speeds.

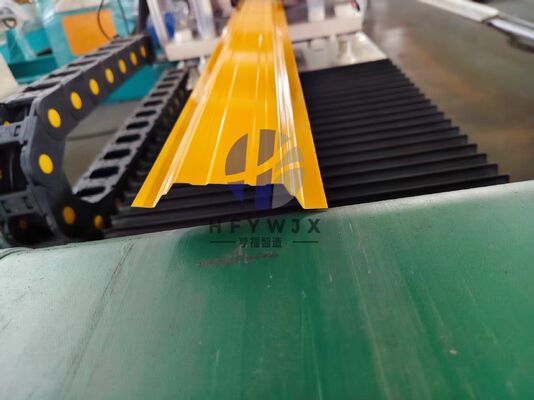

The metal fence profiles produced on this line are versatile outdoor barrier products that combine strength with visual appeal. They are widely used in various settings:

• Private villas, home courtyards, and residential communities as decorative boundary fencing
• Factories, warehouses, and logistics facilities for site perimeter security and zone separation
• Municipal projects, roads, and tourist sites as impact-resistant safety dividers
• Farms and plantations for marking planting zones and livestock enclosures

The multi-bend folded geometry provides excellent rigidity and crash resistance. Compared with conventional wire mesh fencing, these metal panels offer longer outdoor service life, quick on-site assembly, and minimal ongoing maintenance, making them a popular choice for outdoor construction projects.

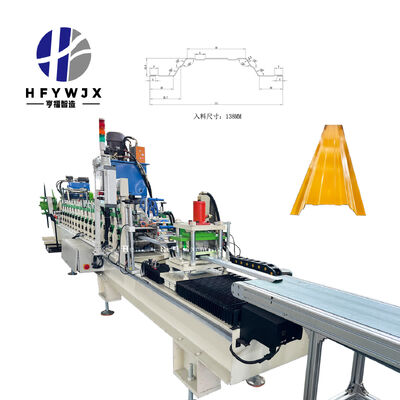

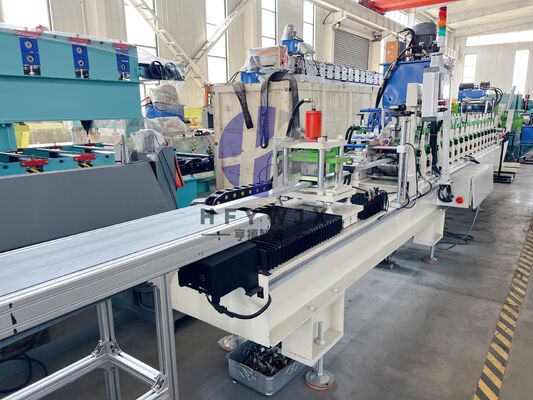

This turn-key automated system includes a complete set of auxiliary units: 1.5-ton double-head hydraulic decoiler, main forming unit, flying shear, pneumatic positioning conveyor, dual automatic labelers, film wrapping machine, and automatic stacking machine. The high degree of automation reduces manual labor and increases overall plant throughput.

The main forming frame is constructed from heavy-duty 350H welded steel with anti-corrosion post-weld treatment and thick wall plates, fitted with robust solid main shafts. Precision-machined, hard-chrome-plated forming rollers create consistent panel profiles while preserving the original coating of incoming steel strips.

Chain-driven power transmission pairs with Delta PLC touch-screen control supporting Chinese and English interfaces. A wireless remote control and three-color status beacon simplify operation and provide instant visual feedback on machine conditions.

The non-stop flying shear is a key advantage, cutting while the line continues running to boost output and prevent profile distortion. Hardened Cr12 steel blades deliver clean, burr-free cuts with low maintenance requirements. Dust-proof bellows covers and cable drag shields protect moving parts and wiring, extending equipment service life.

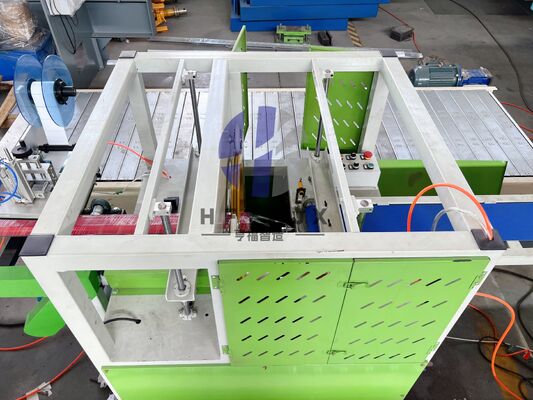

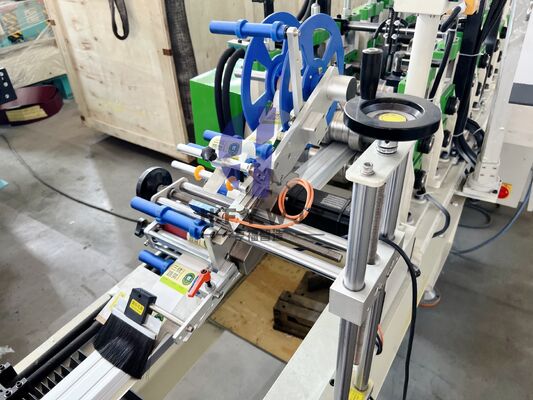

After cutting, panels undergo automatic labeling, protective wrapping, and neat stacking for ready-to-ship finished goods. Prior to shipment, the complete line undergoes full linked test-running to ensure all stations work in harmony. The modular build allows easy disassembly for container shipping to overseas clients.
