Product Name:	CZ Purlin Roll Forming Machine	Power:	30KW+7.5KW
Size Of Purlin:	100-400	Steel Thickness:	2.0-4.0mm
Decoiler:	Hydraulic	Station:	16 Stations
Roller Material:	Gcr15 With Chrome Treatment	Drive:	One Side Of Gear Box With Couplin
Container Need:	1X40GP+1X20GP	Change C To Z:	By Adjust The Rollers To Be 180°
Highlight:	Rolling Shutter Strip Making Machine , Corrugated Iron Sheet Making Machine

Product Description

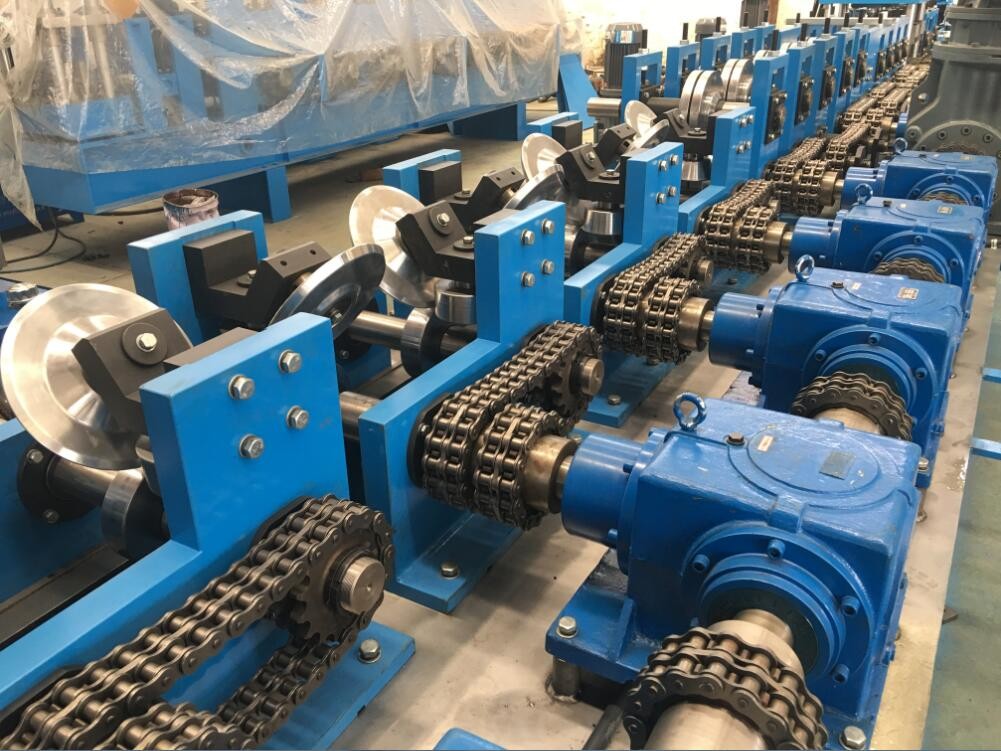

2-4mm thickness CZ Purlin Roll Forming Machine gear box driving strong structure

main speficication:

Steel thickness (t): 2.0 mm to 4,0 mm;
Profile height (h): 100 mm to 400 mm;
Flange width (b): 40 mm to 80 mm;
Flange height (c): 12 mm to 20 mm;

2 - 4mm thickness Solar Roll Forming Machine with hydraulic Decoiler 0

2. The Chart of Process Flow

hydraulic decoiler---leveling---punching---roll forming---cutting---auto stacker

**Specification**
No		Technical Specification & Remark
1	hydraulic decoiler	Steel coil width: 550 mm; Internal diameter of coil: adjustable from 470 mm to 520 mm Maximum coil weight: 5 ton Main motor power: 5.5KW Hydraulic power: 4kw
2	Leveling part	Flattener roller: upper is 3 rollers, down is 4 stations(total is 7 rollers) Flattener roller material: #45 forge steel thermal treatment hardness 48-52 HRC. Flattener roller: #45 forge steel , hardening and tempering
3	Punching system	2 sets of punching system Hydraulic power: 7.5kw
4	Main Roll Forming Machine
6	cutting system	hydraulic post cutting after roll forming one set of cutting blade can make all the sizes by adjustment Hydraulic power: 7.5kw
7	Hydraulic System	Hydraulic power: 7.5kw Working pressure: 20Mpa adjustable Solenoid valve: 3 groups Hydraulic oil: 46# hydraulic oil
8	Computer Control panel	Programmable setting of profile length and quantity Operating system language: English and Chinese Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved Length inaccuracy can be amended easily. PLC brand: Panasonic Touch screen: MCGS Encoder: Omron
8	auto stacker	Length: 6 meters Quantity: 1 unit

4. Warranty

Warranty: 1 year warranty from date of shipment
Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.
