Hydraulic Driven High Altitude Lifting Platform with 18.5m Lifting Height and 8t Lifting Capacity for Construction

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Application:

High Altitude Lifting Platform

Lift Mechanism:

Telescoping Lift

Carrying Capacity:

Weight Level

Moves:

Moving

Driven Type:

Hydraulic

Running Mode:

Vehicular

Feature:

Easy To Operate

Certification:

SGS

Electrical Control:

Computer Control Cabinet

Transport Package:

Container

Lifting Capacity:

Lifting Height:

18.5m

Specification:

9500*2500mm*3400mm

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

hydraulic driven high altitude lifting platform

hydraulic high altitude lifting platform

Product Description

Safe Stable Construction High-altitude Lifting Platform

The High Altitude Roll Forming Machine platform is a specialized construction solution that integrates lifting and tile pressing functions. It securely mounts high-altitude tile pressing equipment on the lifting platform, allowing the machinery to be elevated to high-altitude work zones for direct on-site operation.

This high-altitude lift construction platform is purpose-built for steel structure factory projects, with its main application being the roof tile construction of steel structure workshops. It redefines the traditional roof construction workflow by bringing the tile pressing process directly to the roof.

By fixing the tile pressing equipment on the lifting platform and lifting it to high altitude, the platform realizes on-site high-altitude tile pressing. The pressed tiles can be directly overlapped and installed by workers on the factory roof, eliminating the need for intermediate transportation links.

This solution effectively solves multiple construction pain points, including the inconvenience of back-and-forth transportation of tile pressing machines, crane loading of tiles, and equipment wear and tear. It also reduces labor costs, saves raw materials, avoids material waste, lowers construction safety risks, and ultimately increases project economic benefits.

Technical Specifications

Model NO	18.5m high altitude lifting platform
Condition	New
Lifting Height	18.5m
Suitable for press molding machine	All Jiaochi series and roof panel forming machines, motors, reducer drives, hydraulic shearing
Carrying Capacity	Weight Level
Lifting Capacity	8 tons
Running Mode	Moving
Moves	Vehicular
Transport Package	Container
Required Voltage and Power	380V, 11KW
Production Capacity	400Set/year
Customized	Customized
Origin	Cangzhou, Hebei
Warranty	1 year

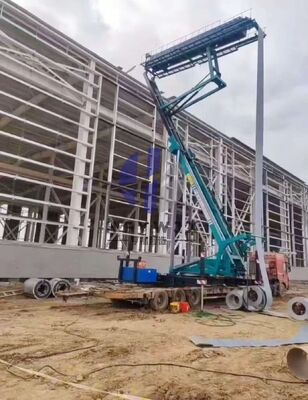

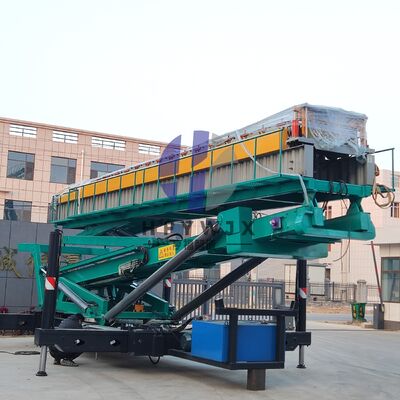

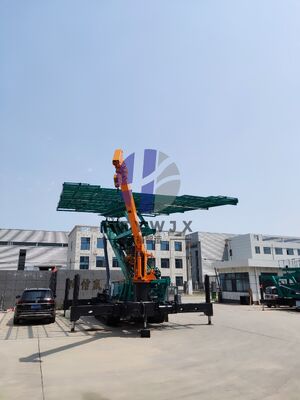

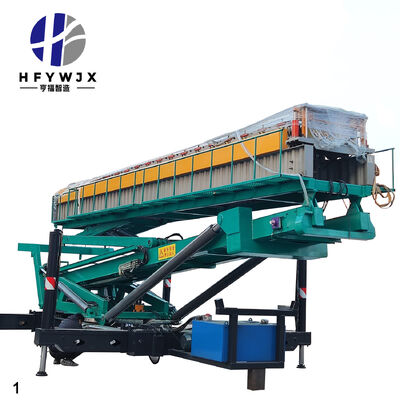

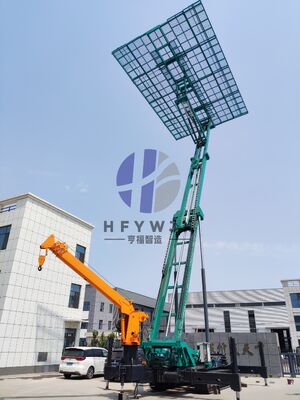

Product Gallery

Frequently Asked Questions

How many people are required to operate the machine?

It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.

Do you have customers for your equipment in our country?

Yes, we have established customers in the Middle East, North Africa, and various European countries.

What service can you provide before order?

We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.

What are the available cutting methods?

Hydraulic Flying Shear and Servo Tracking Flying Shear (Higher precision, faster speed, burr-free cuts)

How can issues such as skewed or off-center sheet feeding be resolved?

The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
