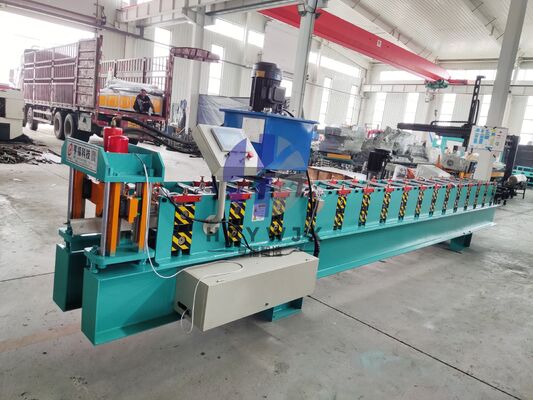

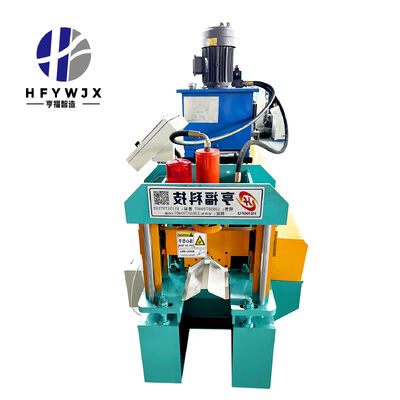

PLC Control 16 Row Molding 460 Ridge Ridge Forming Machine With Servo Driven Cutting

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Package Size:

600.00cm * 130.00cm * 140.00cm

Package Gross Weight:

7000.000kg

Certification:

CE, SGS

Customized:

Customized

Transmission Method:

Electric

Transmission Mode:

1inch Chain Drive

Tile Type:

Colored Steel

Condition:

Usage:

Electronic Control System:

HS Code:

8474801000

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

plc ridge cap machine

plc ridge forming machine

460 ridge cap machine

Product Description

Advanced 460 Ridge Tile Machine Automatic Steel Roof Cap Cold Roll Former

Dongguang Hengfu Roll Forming Machine Co., Ltd. brings a professional and reliable Ridge Cap Roll Forming Machine, specially designed for high-quality metal roofing accessory production. With years of focused R&D and manufacturing experience in roll forming equipment, the company has created a machine that balances stability, efficiency, and precision, making it highly popular among roofing manufacturers, construction enterprises, and international distributors. This model is built to deliver consistent, high-standard ridge caps that enhance roof tightness, appearance, and service life.

The machine adopts a heavy-duty welded frame with overall stress-relief treatment, ensuring excellent rigidity and minimal deformation even under long-term high-speed operation. The forming rollers are made of high-quality alloy steel with fine machining and hard chrome plating, allowing smooth forming of galvanized steel, color-coated sheets, Aluzinc, and aluminum coils. It effectively avoids surface scratches, edge warping, or profile distortion, producing ridge caps with precise dimensions, elegant lines, and perfect matching with various roof panel systems.

Featuring a fully automatic PLC control system and servo-driven cutting system, this ridge cap machine achieves accurate length control, stable feeding, and continuous automatic production. The human-machine touchscreen allows quick parameter setting, easy operation, and low requirements for operator experience. With adjustable forming speed and high production efficiency, it greatly reduces labor input and material waste, helping factories improve output while maintaining consistent product quality.

As a direct and professional manufacturer, Dongguang Hengfu Roll Forming Machine Co., Ltd. implements strict quality inspection in every process, from component selection to final assembly and testing. The machine uses well-known branded electrical and transmission parts for enhanced durability and reduced downtime. Customized profile designs are available based on customer requirements, supported by professional installation guidance, technical training, and responsive after-sales service.

This ridge cap roll forming machine is widely recognized for its robust structure, easy maintenance, and cost-effective performance. It is suitable for both small-scale processing workshops and large-scale automated production lines. By choosing this Hengfu machine, customers gain a high-performance production solution that ensures long-term stable operation, improved product quality, and stronger market competitiveness.

Technical Specifications

Model NO	460 Ridge tiles
Machine frame	350H steel frame
Motor	4kW or 5.5kW oil pump motor
Wall panel thickness	14mm wall panels
Type of Driven	Chain drive
Number of rolling mill sets	16-row molding
Spindle diameter	70 shafts
Shear power	5.5kW servo drive
Wheels	45# wheels
Usage	Roof
Specification	6000mmx1300mmx1400mm
Origin	Cangzhou, Hebei
Warranty	1 year

Frequently Asked Questions

What are the available cutting methods?

Hydraulic Flying Shear or Servo Tracking Flying Shear (Higher precision, faster speed, burr-free cuts)

Can it be connected to an automatic stacker?

Yes, optional systems for automatic material collection, automatic stacking, and automatic counting are available.

How can issues such as skewed or off-center sheet feeding be resolved?

The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.

Can the machine produce curved or irregularly shaped panels?

Yes, it can be customized with arching and bending mechanisms to enable the forming of curved roofing tiles.

Will the machine's precision be compromised during transport?

Thanks to its fully welded structure and reinforced packaging, transportation will not affect the precision of the rollers or the machine frame.
