High Precision Laser Welded Pipe Production Line 3 KW PLC + Touch Screen HMI

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Overall Dimension:

Approx. 25 M × 1.5 M × 1.5 M

Control System:

PLC + Touch Screen HMI

Laser Welder:

3 KW High-end Split Type

Transmission:

Motor + Reducer + Gearbox

Main Motor:

4 Sets × 5.5 KW Three-phase Motor

Roller Shaft:

45# Steel, Φ60 Mm

Roller Material:

Cr12 Mould Steel, HRC55–58

Production Speed:

1–15 M/min (PLC Inverter Adjustable)

Forming Stands:

55 Stations

Forming Frame Structure:

30 Mm Thick Gantry Type, CNC Machined

Main Shaft Of Uncoiler:

Φ80 Mm

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

laser welded pipe production line

welded pipe production line 3 kw

precision pipe forming machine

Product Description

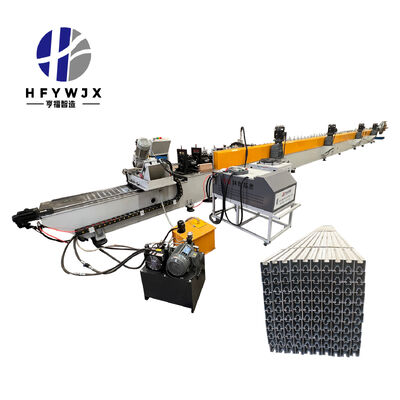

Advanced Fiber Laser Pipe Welding Machine High Precision Metal Tube Forming Mill

Dongguang Hengfu Roll Forming Machine Co., Ltd. delivers a high-performance laser welded pipe production line built for stable, efficient, and precision pipe manufacturing. This fully integrated line combines professional roll forming, high-precision laser welding, straightening, and non-stop cutting to create consistent, high-quality pipes from galvanized steel strip.

With strong engineering capability and strict manufacturing standards, Hengfu ensures this equipment runs reliably under long-term production, earning high trust from global metal processing customers.

Production Process

The production line features a smooth and logical workflow: uncoiling, roll forming, laser welding, straightening, and non-stop cutting. It is specially designed for 0.6mm galvanized steel, ensuring stable material feeding, uniform forming, and excellent welding performance.

The optimized process reduces material distortion and surface damage, producing pipes with accurate dimensions, smooth welding seams, and ideal straightness for various construction and fabrication applications.

Uncoiling System

The uncoiling system adopts a heavy-duty integrated tension structure with 2.0 tons loading capacity, supporting a maximum strip width of 400mm and Φ500 inner coil diameter. Manual tensioning ensures steady and safe uncoiling, while the Φ80 high-rigidity main shaft provides stable transmission.

Main Forming Unit

The main forming unit uses a 30mm thick gantry-type frame processed by CNC gantry milling for exceptional precision and rigidity. It includes 55 forming stations with high-standard Cr12 mold steel rollers (HRC55-58) and Φ60 high-strength 45# steel shafts.

Driven by four 5.5KW three-phase motors via gearboxes, the line offers adjustable speed from 1-15m/min. Paired with famous Harbin bearings, the machine runs stably with low noise and long service life.

Laser Welding & Control System

Equipped with a 3KW high-configuration laser welding system and reliable branded components, this production line ensures strong, stable welding quality. The PLC control system with touchscreen HMI enables easy operation and precise parameter adjustment.

Technical Specifications

Material	Galvanized steel, 0.6 mm thickness
Process Flow	Decoiling -> Forming -> Welding -> Straightening -> Non-stop cutting
Uncoiler	Manual tension; 2.0 tons load capacity; max width 400 mm; inner diameter Φ500
Forming Stands	55 stations
Roller Material	Cr12 mould steel, HRC55-58
Speed	1-15 m/min (PLC inverter adjustable)
Laser Welder	3 KW high configuration
Control System	PLC + touch screen
Dimension	approx. 25 m × 1.5 m × 1.5 m

Product Gallery

Frequently Asked Questions

Can a single machine produce multiple types of profiles?

Standard models are typically designed to produce one specific profile type per machine. However, customizable models—such as those with interchangeable rollers, double-layer machines, or triple-layer machines—can be configured to enable a single machine to serve multiple purposes.

Does the machine require disassembly for transport?

The core structure remains intact; only the auxiliary components are removed to ensure that precision is maintained.

Is the length of the discharge rack adjustable?

Yes, our standard telescopic discharge rack can be adjusted to accommodate sheet materials of varying lengths.

Are customers able to visit the factory to test the machine and observe its performance firsthand?

We welcome customers—or a designated third party—to visit our factory to inspect the machine and conduct trial production runs using their own materials.
