| Brand Name: | HENGFU |
| MOQ: | 1 Piece |
| Payment Terms: | 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment |

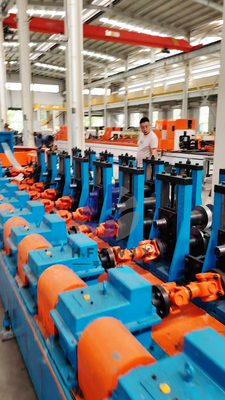

Dongguang Hengfu Roll Forming Machine Co., Ltd. provides a fully automatic roll forming machine specially designed for manufacturing photovoltaic panel brackets and seismic stabilizer brackets. This high-efficiency, high-precision equipment integrates advanced roll forming technology, stable transmission system and intelligent control, to provide customers with reliable, long-lasting and high-performance production solutions.
This machine is professionally designed for forming galvanized steel and other metal coils used in PV support systems and seismic stabilization components. It can stably process sheets of conventional thicknesses used in the photovoltaic industry, produce high-strength, high-precision section profiles, and meet the installation requirements of various solar photovoltaic systems.
The whole machine adopts a heavy-duty welded frame structure with strong rigidity, good stability and low vibration, ensuring stable operation under long-time continuous production. The roller system is made of high-grade alloy steel with precision machining and hard chrome plating, which is wear-resistant, durable and does not damage the material surface.
Equipped with an intelligent PLC control system and touch screen operation, the equipment realizes fully automatic production from feeding, forming, punching to fixed-length cutting. It supports adjustable production speed, high control precision, and simple operation, which reduces the difficulty of manual operation and improves overall production efficiency.
| Material | Galvanized sheet 2.0mm-2.5mm |
| Machine frame | Box welding frame |
| Wall panel | T=55mm archway style |
| Number of roller groups | 24 groups of main rollers |
| Roll material | CR12 precision turning and hard chrome plating |
| Spindle material | 45# high quality steel tempered |
| Spindle diameter | Φ80mm solid shaft |
| Transmission mode | Gearbox transmission |
| Production speed | 8m-50m/minute |
| Hydraulic shearing power | 11kw large valve blade pump station |
| Cutting | Hydraulic twisting and shearing without stopping the machine |
| Cutting mold | Cut with two blades, Cr12 quenching treatment, HRC58-60 |
| Electronic control system | Industrial computer PLC frequency conversion control, cutting length error ≤ 2mm 55KW variable frequency touch screen vertical electric control box with remote control |
| Overall dimensions | Length 2250, width 1250, height 1400 |
