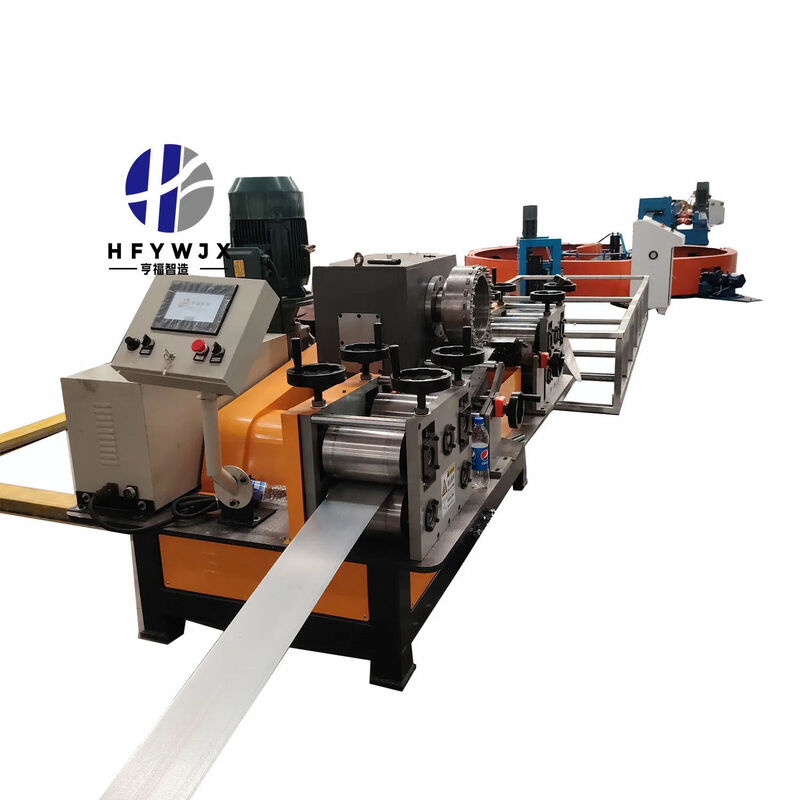

Automatic Solar Strut Channel Roll Forming Machine High Strength Adjustable Flexibility

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Application:

Industrial

Model NO.:

Photovoltaic Bracket Forming Machine

Type:

Roof Bracket

Efficiency:

Efficient

Flexibility:

Adjustable

Security Properties:

Stable And Reliable

Specification:

2255mm*1250mm*1400mm

HS Code:

8455221000

Production Capacity:

500pieces/Years

Economy:

High Efficiency

Accuracy:

High Accuracy

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

strut channel roll forming machine high strength

automatic rack roll forming machine

automatic strut channel roll forming machine

Product Description

Solar Strut Channel Roll Forming Machine Automatic PV Mounting Support Production Line

The Automatic Solar Mounting System Photovoltaic Bracket Forming Machine is a specialized solution created to support the mass production of solar mounting components with high precision and strength. It efficiently transforms raw metal materials into standardized bracket profiles that are widely used in ground-mounted and rooftop photovoltaic systems, helping manufacturers meet the increasing global demand for clean energy infrastructure.

This machine is particularly attractive for its ability to improve production consistency. Through a well-optimized roll forming process, it ensures that each finished profile maintains uniform shape and accurate dimensions. This consistency not only enhances product quality but also simplifies downstream installation, making it easier for customers to deliver reliable solar mounting systems to their clients.

Another key benefit is its cost-effectiveness in long-term operation. By reducing material waste, lowering manual labor requirements, and maintaining stable performance over extended production cycles, the machine helps businesses control operational expenses while maximizing output. This makes it an excellent choice for companies looking to improve profitability without compromising on quality.

Dongguang Hengfu Roll Forming Machine Co., Ltd. has integrated its extensive manufacturing experience into this equipment, focusing on durability, efficiency, and ease of use. The company is well-regarded for providing practical solutions tailored to customer needs, along with dependable technical support that ensures smooth installation and operation.

For manufacturers aiming to strengthen their competitiveness in the renewable energy market, this machine offers a balanced combination of performance and value. With Dongguang Hengfu Roll Forming Machine Co., Ltd. as a trusted partner, customers can confidently expand their production capabilities and take advantage of the growing opportunities in the photovoltaic industry.

Technical Specifications

Material	galvanized sheet 2.0mm-2.5mm
Machine frame	box welding frame
Wall panel	T=55mm archway style
Number of roller groups	24 groups of main rollers
Roll material	CR12 precision turning and hard chrome plating
Spindle material	45# high quality steel tempered
Spindle diameter	Φ80mm solid shaft
Transmission mode	gearbox transmission
Production speed	8m-50m/minute
Hydraulic shearing power	11kw large valve blade pump station
Cutting	Hydraulic twisting and shearing without stopping the machine
Cutting mold	cut with two blades, Cr12 quenching treatment, HRC58-60
Electronic control system	Industrial computer PLC frequency conversion control, cutting length error ≤ 2mm 55KW variable frequency touch screen vertical electric control box with remote control
Overall dimensions	length 2250, width 1250, height 1400

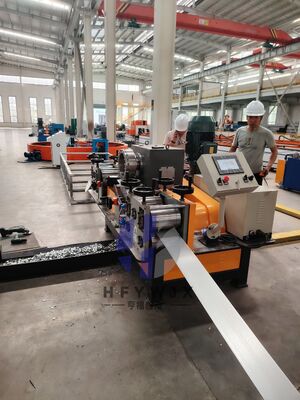

Product Gallery

Frequently Asked Questions

There are no professional maintenance personnel available locally; what should we do in the long run?

We provide lifetime remote video guidance; most issues do not require on-site repair.

Is the length of the discharge rack adjustable?

Yes, our standard telescopic discharge rack can be adjusted to accommodate sheet materials of varying lengths.

Are customers able to visit the factory to test the machine and observe its performance firsthand?

We welcome customers--or a designated third party--to visit our factory to inspect the machine and conduct trial production runs using their own materials.

What checks need to be performed before starting the machine?

Check the lubrication, voltage, emergency stop button, cutter position, feed guides, etc.
