High Accuracy Photovoltaic Solar Bracket Roll Forming Machine Stable Seismic Bracket Production

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Application:

Industrial

Type:

Roof Bracket

Efficiency:

Efficient

Flexibility:

Adjustable

Security Properties:

Stable And Reliable

Specification:

2255mm*1250mm*1400mm

Certification:

Material:

Steel

Automaticity:

Highly Automatic

Accuracy:

High Accuracy

Economy:

High Efficiency

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

photovoltaic solar bracket roll forming machine

photovoltaic rack roll forming machine

high accuracy rack roll forming machine

Product Description

Advanced Anti-seismic Bracket Production Line Automatic Photovoltaic Support Rack Making Machine

Dongguang Hengfu Roll Forming Machine Co., Ltd. proudly launches a fully automatic roll forming machine dedicated to photovoltaic panel brackets and seismic stabilizer brackets. This equipment integrates high-efficiency forming, precise control, and stable operation, making it an ideal production solution for the new energy and construction industries.

With reliable performance, solid structure, and long service life, it has earned high recognition and trust from global customers.

Applications & Compatibility

This machine is specially designed for producing high-strength photovoltaic support profiles and seismic stabilizer components. It can process galvanized steel coils with excellent compatibility, ensuring finished products have uniform dimensions, strong load-bearing capacity, and good anti-deformation performance.

The formed brackets are widely used in solar power stations, rooftop PV systems, and building seismic reinforcement projects, meeting long-term outdoor use and harsh environment requirements.

Key Features

Heavy-duty welded frame with high rigidity and excellent stability
Low noise and low vibration during continuous production
Precision-machined forming rollers made of high-quality alloy steel
Hard chrome plating for wear resistance and durability
High-strength spindle and stable transmission system
Advanced PLC control system with touch screen operation
Fully automatic feeding, forming, punching, and fixed-length cutting
Hydraulic cutting system for clean, burr-free cutting

Technical Specifications

Parameter	Specification
Material	Galvanized sheet 2.0mm-2.5mm
Machine Frame	Box welding frame
Wall Panel	T=55mm archway style
Number of Roller Groups	24 groups of main rollers
Roll Material	CR12 precision turning and hard chrome plating
Spindle Material	45# high quality steel tempered
Spindle Diameter	Φ80mm solid shaft
Transmission Mode	Gearbox transmission
Production Speed	8m-50m/minute
Hydraulic Shearing Power	11kw large valve blade pump station
Cutting	Hydraulic twisting and shearing without stopping the machine
Cutting Mold	Cut with two blades, Cr12 quenching treatment, HRC58-60
Electronic Control System	Industrial computer PLC frequency conversion control, cutting length error ≤ 2mm 55KW variable frequency touch screen vertical electric control box with remote control
Overall Dimensions	Length 2250, Width 1250, Height 1400

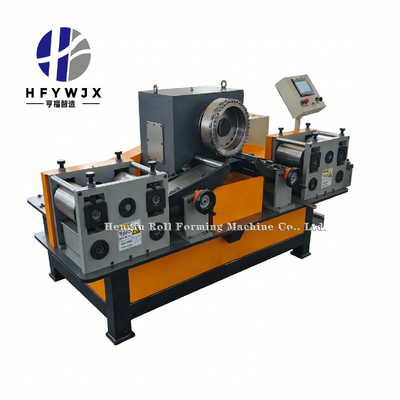

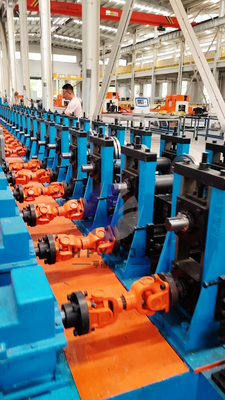

Product Images

Frequently Asked Questions

Will the machine's precision be compromised during transport?

Thanks to its fully welded structure and reinforced packaging, transportation will not affect the precision of the rollers or the machine frame.

Is there a leveling device at the material inlet?

It is equipped with a set of leveling rollers to ensure flat feeding and prevent waves or distortion in the sheet material.

Is the electrical system susceptible to moisture damage?

The electrical cabinet features a dust-proof and moisture-resistant design, allowing it to operate normally even within a simple outdoor shelter.

Will the machine scratch the surface coating of the color-coated steel sheets during production?

With precision-ground and polished rollers, combined with a properly designed forming process, the machine will not scratch the sheet surface under normal operating conditions.

Can the machine produce stainless steel sheets? What are the requirements for the equipment?

Yes, it can; however, it requires reinforcing the forming frames, increasing the hardness of the rollers, and adjusting the forming process.

Quality Assurance & Support

With strict quality control and professional manufacturing technology, Dongguang Hengfu Roll Forming Machine Co., Ltd. ensures this machine delivers stable performance and high durability. We provide a one-year warranty, on-site installation, commissioning, and operator training.

For manufacturers in the photovoltaic support and seismic stabilizer industry, this machine is a cost-effective and reliable long-term production partner.
