High Speed Anti Seismic Solar Bracket Roll Forming Machine Adjustable

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Application:

Industrial

Type:

Roof Bracket

Efficiency:

Efficient

Flexibility:

Adjustable

Security Properties:

Stable And Reliable

Certification:

Material:

Steel

Automaticity:

Highly Automatic

Accuracy:

High Accuracy

Economy:

High Efficiency

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

solar bracket roll forming machine adjustable

anti seismic solar bracket roll forming machine

adjustable rack roll forming machine

Product Description

High Speed Photovoltaic and Anti-seismic Bracket Roll Forming Machine Automatic PV Support Production Line for Energy

Dongguang Hengfu Roll Forming Machine Co., Ltd. presents a high-performance fully automatic roll forming machine dedicated to the production of photovoltaic panel brackets and seismic stabilizer brackets. Designed for the rapidly growing renewable energy and construction sectors, this machine combines high precision, high efficiency, and exceptional stability to produce structural profiles with consistent quality and reliable strength. Backed by advanced design, strict manufacturing standards, and patented transmission technology, it has become a trusted production solution for solar bracket manufacturers and metal profile producers worldwide.

This machine is specially engineered to process galvanized sheets with a thickness of 2.0mm-2.5mm, delivering profiles that meet the strict structural requirements for photovoltaic mounting and seismic stabilization. It supports flexible profile adjustment and customization, making it ideal for rooftop PV systems, ground-mounted solar installations, and seismic reinforcement applications. The stable cold roll forming process preserves material integrity, ensuring finished brackets feature excellent load-bearing capacity, corrosion resistance, and long service life in outdoor environments.

Built with industrial-grade heavy-duty components, the machine features a robust box-welded frame and 55mm archway‑style wall panels for outstanding rigidity and minimal vibration during high‑speed operation. It is equipped with 24 groups of main forming rollers made from precision‑machined, hard chrome‑plated CR12 steel, along with a Φ80mm solid spindle forged from tempered 45# high‑quality steel. The integrated gearbox transmission with anti-backlash gears ensures stable, stress‑free operation and lifelong precision without frequent adjustment.

The entire production line operates with a highly automated workflow, featuring hydraulic non‑stop twisting shearing powered by an 11kW large‑valve hydraulic station. The cutting system uses dual Cr12 blades with HRC58-60 hardness to ensure clean, burr‑free cuts with high precision. Controlled by an industrial PLC touchscreen system with frequency conversion, the machine achieves a production speed of 8-50m/min and maintains cutting length error within 2mm, greatly improving productivity while reducing labor costs.

Certified by SGS and manufactured under strict quality control, this photovoltaic and seismic bracket roll forming machine delivers outstanding durability and stable performance. Dongguang Hengfu provides a 1‑year warranty and lifelong technical support, including on‑site installation, commissioning, and free operator training. With its high efficiency, precision, and reliability, this machine is a cost‑effective and future‑proof choice for businesses aiming to scale up production of high‑quality solar and seismic support products.

Technical Specifications

Material	galvanized sheet 2.0mm-2.5mm
Machine frame	box welding frame
Wall panel	T=55mm archway style
Number of roller groups	24 groups of main rollers
Roll material	CR12 precision turning and hard chrome plating
Spindle material	45# high quality steel tempered
Spindle diameter	Φ80mm solid shaft
Transmission mode	gearbox transmission
Production speed	8m-50m/minute
Hydraulic shearing power	11kw large valve blade pump station
Cutting	Hydraulic twisting and shearing without stopping the machine
Cutting mold	cut with two blades, Cr12 quenching treatment, HRC58-60
Electronic control system	Industrial computer PLC frequency conversion control, cutting length error ≤ 2mm 55KW variable frequency touch screen vertical electric control box with remote control
Overall dimensions	length 2250, width 1250, height 1400

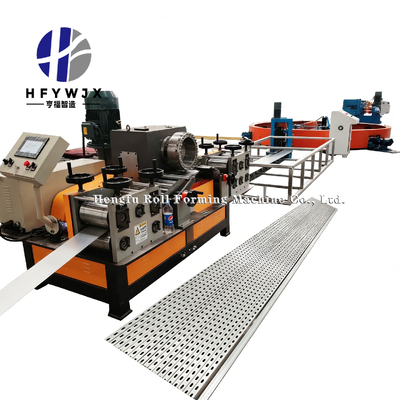

Product Images

Frequently Asked Questions

What checks need to be performed before starting the machine?

Check the lubrication, voltage, emergency stop button, cutter position, feed guides, etc.

Is it normal for burrs to appear on the cut edges of the sheet metal after cutting?

Minor burrs are normal and acceptable; however, severe burrs are typically caused by a dull cutting blade or improper blade clearance.

How should the machine be stored when not in use for an extended period?

Disconnect the power, clean the machine, apply anti-rust oil, cover it with a dust cover, and store it in a dry environment.

How long is the warranty period?

The entire machine comes with a 12-month warranty, excluding wear parts.

Does the machine require a foundation?

It simply requires a level concrete floor; no complex foundation is necessary.
