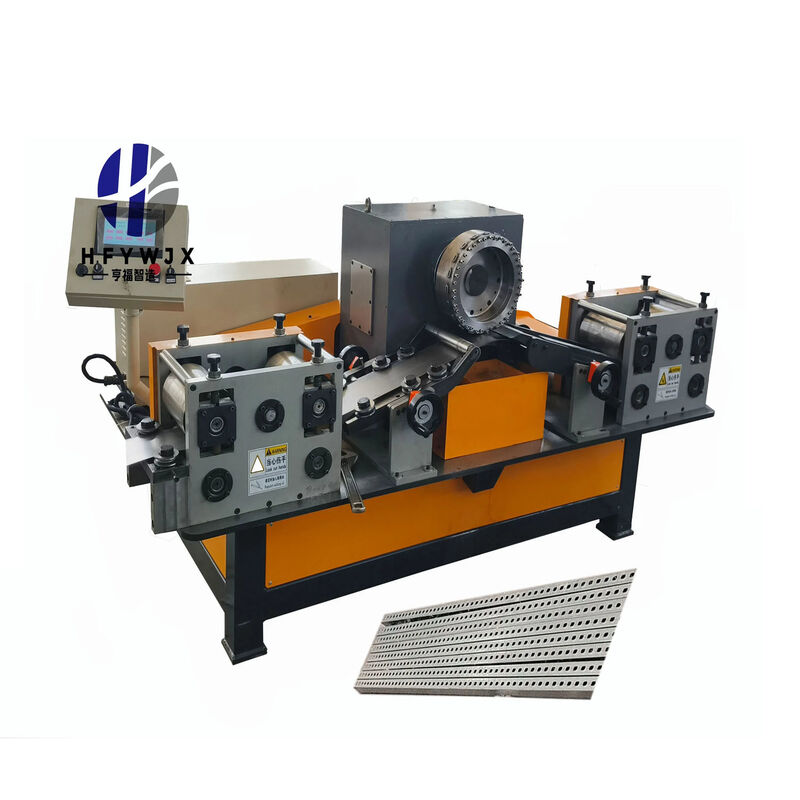

CNC Controlled PV Solar Rack Roll Forming Machine With High Accuracy

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Model NO.:

Photovoltaic Bracket Forming Machine

Certification:

Application:

Industrial

Type:

Roof Bracket

Material:

Steel

Automaticity:

Highly Automatic

Accuracy:

High Accuracy

Efficiency:

Efficient

Specification:

2255mm*1250mm*1400mm

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

Solar Rack Roll Forming Machine

PV Rack Roll Forming Machine

CNC Controlled Rack Roll Forming Machine

Product Description

PV Solar Rack Roll Forming Machine

The Automatic Solar Mounting System Photovoltaic Bracket Forming Machine is a purpose-built solution for manufacturing essential components used in solar panel installation systems. It converts metal coils into precisely shaped mounting brackets that ensure secure and stable support for photovoltaic structures. Designed for modern production needs, the machine helps manufacturers keep up with the rapid expansion of the renewable energy industry.

What sets this machine apart is its ability to deliver both speed and accuracy in a single production line. The advanced roll forming system works in coordination with precise punching units, ensuring that every bracket meets exact technical specifications. This level of accuracy is critical for solar projects, where proper alignment and structural integrity directly impact installation efficiency and long-term performance.

The equipment also emphasizes operational convenience. With an intelligent control system, operators can easily manage production settings, switch between product specifications, and monitor performance in real time. This user-friendly approach reduces training time and allows businesses to quickly integrate the machine into existing production lines.

Dongguang Hengfu Roll Forming Machine Co., Ltd. has developed this equipment with a deep understanding of industry demands. Their focus on practical engineering, stable machine performance, and efficient customization enables customers to achieve reliable production results. The company's strong technical support further ensures smooth operation and long-term customer satisfaction.

For manufacturers aiming to strengthen their position in the solar energy supply chain, this machine offers a powerful combination of efficiency, precision, and flexibility. With Dongguang Hengfu Roll Forming Machine Co., Ltd. as a trusted partner, customers can confidently enhance their production capacity and meet the evolving needs of global photovoltaic projects.

Technical Specifications

Material	galvanized sheet 2.0mm-2.5mm
Machine frame	box welding frame
Wall panel	T=55mm archway style
Number of roller groups	24 groups of main rollers
Roll material	CR12 precision turning and hard chrome plating
Spindle material	45# high quality steel tempered
Spindle diameter	Φ80mm solid shaft
Transmission mode	gearbox transmission
Production speed	8m-50m/minute
Hydraulic shearing power	11kw large valve blade pump station
Cutting	Hydraulic twisting and shearing without stopping the machine
Cutting mold	cut with two blades, Cr12 quenching treatment, HRC58-60
Electronic control system	Industrial computer PLC frequency conversion control, cutting length error ≤ 2mm 55KW variable frequency touch screen vertical electric control box with remote control
Overall dimensions	length 2250, width 1250, height 1400

Frequently Asked Questions

Do you have customers for your equipment in our country?

Yes, we have established customers in the Middle East, North Africa, and various European countries.

Is there a leveling device at the material inlet?

It is equipped with a set of leveling rollers to ensure flat feeding and prevent waves or distortion in the sheet material.

Is the electrical system susceptible to moisture damage?

The electrical cabinet features a dust-proof and moisture-resistant design, allowing it to operate normally even within a simple outdoor shelter.

Will the machine scratch the surface coating of the color-coated steel sheets during production?

With precision-ground and polished rollers, combined with a properly designed forming process, the machine will not scratch the sheet surface under normal operating conditions.
