| Brand Name: | HENGFU |
| MOQ: | 1 Piece |
| Payment Terms: | 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment |

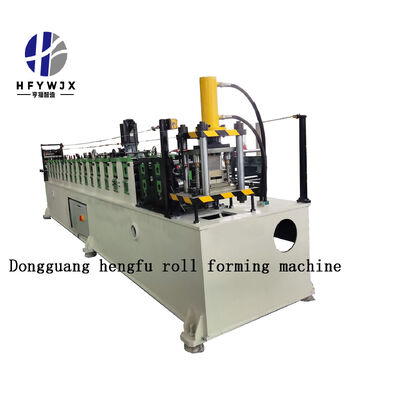

The T-Profile Roll Forming Machine is a purpose-built, high-efficiency production device engineered specifically for manufacturing T-shaped metal profiles. These profiles serve as critical components across multiple industries, finding wide application in construction projects, ceiling suspension systems, partition frame installations, door and curtain wall support structures, as well as various architectural and decorative applications.
By integrating advanced cold roll forming technology, the machine delivers exceptional processing precision, resulting in profiles with smooth surface finishes and consistent, uniform shapes that meet stringent industry standards. The combination of precision components and intelligent control not only boosts overall production efficiency but also reduces the need for manual intervention, making the machine a cost-effective solution for large-scale manufacturing.
The machine supports the processing of a broad range of metal materials, including galvanized steel, carbon steel, stainless steel, and aluminum. Each material type can be formed into customized T-profile sizes, allowing manufacturers to tailor the final products to meet specific project requirements.
| Roll Forming Section | |
| Frame Structure | Precision milling of square boxes |
|---|---|
| Number of Molding Passes | 16 rows |
| Wall Panel Thickness | 20mm |
| Feed Rack | Two-hand crank feed belt with knife pull |
| Electrical Control System | Split touchscreen electrical control box with remote control |
| Screws/Pull Rods | Standard screws, 35 pull rods |
| Roller Speed | 0.5m/min, 4m/min |

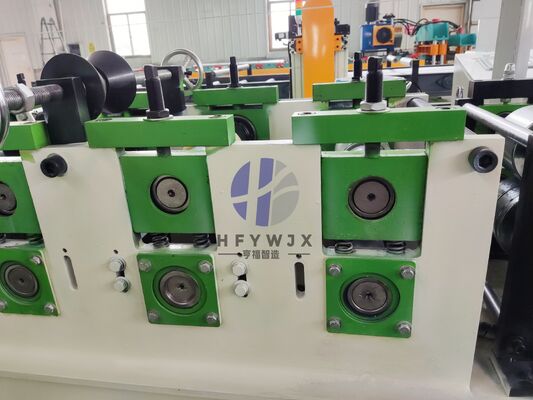

| Forming Rollers | 45# steel, rough machining + finish turning + external cylindrical grinding + electroplating, hardness 45-50 HRC |
| Shearing Device | 5.5kW servo electric shear |
| Hydraulic Pump Power | 4KW |
| Punching Section | |
| Rack | Freestanding rack |
| Feeding Device | Servo feeding |
| Feeding Motor Power | 1.5 kW servo motor |
Disconnect the power, clean the machine, apply anti-rust oil, cover it with a dust cover, and store it in a dry environment.
It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.
Cold-formed materials such as color-coated steel, galvanized steel, aluminum-magnesium-manganese alloy, and stainless steel.
Yes, optional configurations include pneumatic receiving, hydraulic receiving, and automatic stackers.
The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
