High Precision Trapezoidal Roll Forming Machine 1000mm Stable Durable Structure For Metal Roofing Sheet Production

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Model NO.:

1000-type Trapezoidal Roll Forming Machine

Tile Type:

Colored Steel

Certification:

CE, SGS

Condition:

Condition

Transmission Method:

Electric

Transport Package:

Plastic Film & Steel Wire Fixed

Production Capacity:

500pieces/Years

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

trapezoidal roll forming machine 1000mm

high precision trapezoidal roll forming machine

1000mm trapezoidal sheet roll forming machine

Product Description

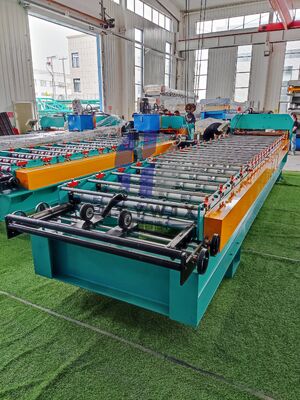

Trapezoidal Roll Forming Machine with High Precision and Stable Performance

The 1000mm Trapezoidal Roofing Sheet Roll Forming Machine is a highly efficient and versatile solution designed for producing high-quality metal roofing and wall panels. It processes materials such as color steel, galvanized steel, and coated coils, delivering precise trapezoidal profiles with excellent surface finish.

With a feeding width around 1219mm, the machine ensures optimal material utilization while producing durable and weather-resistant panels widely used in steel structure buildings and industrial construction.

Robust Construction & Precision Engineering

Equipped with a strong 350H steel frame and 13 forming stations, the machine provides outstanding rigidity and forming accuracy during continuous operation. The Φ70mm solid shaft combined with high-quality rollers ensures smooth material feeding and stable shaping performance.

This structural design effectively minimizes deformation and guarantees consistent panel dimensions, making it suitable for long-term, high-volume production.

Performance & Customization

The machine operates at a forming speed of approximately 12-15 meters per minute, balancing productivity and precision. The chain-driven transmission system ensures stable power delivery, while the electric control system allows reliable and continuous operation.

Its design supports customizable profiles, enabling manufacturers to meet diverse project requirements in roofing and cladding applications.

Advanced Cutting System

The machine is integrated with a hydraulic cutting system using guide post shearing technology, ensuring accurate, clean cuts with minimal burrs. This improves the final product quality and reduces the need for additional processing.

The complete production line—from feeding to forming and cutting—works seamlessly, enhancing efficiency and reducing material waste in industrial manufacturing environments.

Manufacturer Quality

Manufactured by Dongguang Hengfu Roll Forming Machine Co., Ltd., this equipment demonstrates strong technical expertise and dependable quality standards. The company is well recognized for its advanced manufacturing capabilities, strict quality control, and professional service support.

With advantages such as stable performance, high precision, and long service life, this trapezoidal roll forming machine is an ideal choice for customers aiming to improve productivity and competitiveness in the metal roofing industry.

Technical Specifications

Model NO	1000
Condition	New
Usage	Roof
Feeding Width	1219mm
Machine Frame	350H steel frame
Forming Speed	12-15M/min
Color	Customized
Type of Driven	Chain drive
Transmission Method	Electric
Number of Rolling Mill Sets	13 row molding
Spindle Diameter	Φ70mm (Solid shaft)
Customized	Customized
Feeding Method	Two-hand crank feeder (with pressure roller)
Specification	6500mm x 1600mm x 1700mm
Origin	Cangzhou, Hebei
Warranty	1 year
Usage	Building

Frequently Asked Questions

What is the difference between your machines and cheaper alternatives?

The machine frame is thicker and will not deform even after prolonged use
The rollers feature high precision, ensuring a standard and consistent panel profile
The cutting system is stable, guaranteeing precise length accuracy
It boasts a low failure rate and low maintenance costs
It offers a significantly longer service life

What are the available cutting methods?

Hydraulic Flying Shear
Servo Tracking Flying Shear (Higher precision, faster speed, burr-free cuts)

Can it be connected to an automatic stacker?

Yes, optional systems for automatic material collection, automatic stacking, and automatic counting are available.

Can it be integrated into a complete color steel production line?

Yes, it can—forming a fully automated line covering uncoiling, leveling, roll forming, shearing, and stacking.

Can a laminating machine be added?

Yes, it allows for an integrated production line combining lamination and forming.
