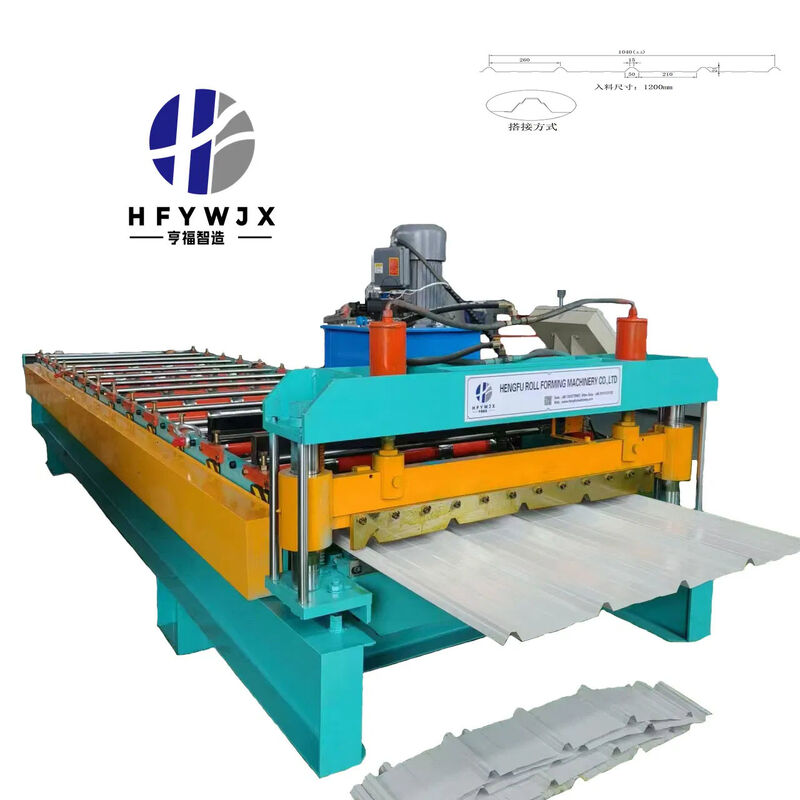

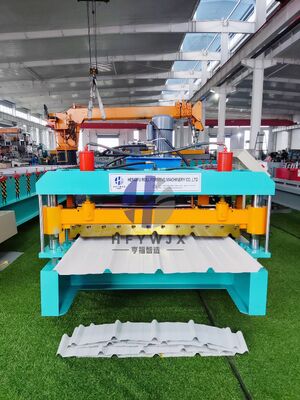

This Customized 1040 Trapezoidal Roof Roll Forming Machine with Servo Feeder and Auto Stacker is a fully integrated, high-performance production line designed for manufacturing premium trapezoidal roofing sheets. It combines advanced roll forming technology with automated feeding and stacking systems, delivering a seamless and efficient workflow from coil to finished panel. The machine is ideal for large-scale roofing production where precision, speed, and consistency are essential.

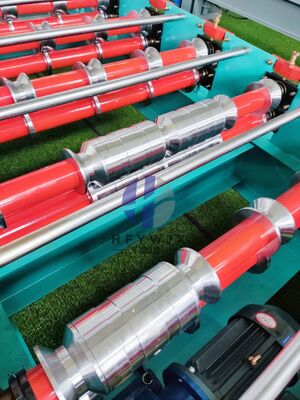

A key highlight of this equipment is its servo feeder system, which ensures highly accurate material feeding and positioning. This significantly improves forming precision and reduces material waste, especially in high-speed production environments. The carefully engineered roll forming stations gradually shape the steel into defined trapezoidal profiles, maintaining excellent dimensional accuracy and surface quality throughout the process.

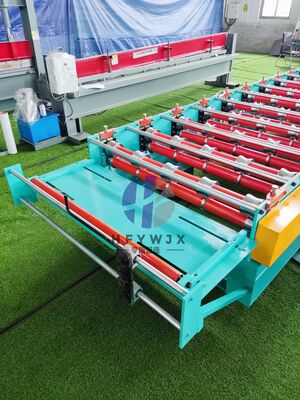

The integrated automatic stacker further enhances productivity by organizing and stacking finished sheets efficiently without manual handling. This not only improves workflow continuity but also reduces labor intensity and minimizes the risk of product damage. Automated stacking systems are widely used in modern roll forming lines to streamline production and ensure safe material handling.

Designed with a strong and stable structure, the machine ensures long-term reliability under continuous operation. High-quality rollers, durable shafts, and a well-balanced transmission system contribute to smooth running performance and consistent output. The entire line operates under a PLC control system with a user-friendly interface, allowing easy parameter adjustment and flexible customization for different profile requirements.

Technical Specifications

Model NO	1040
Condition	New
Usage	Roof
Feeding Width	1200mm
Machine Frame	300H steel frame
Forming Speed	10-15M/min
Color	Customized
Type of Driven	Chain drive
Transmission Method	Electric
Number of rolling mill sets	13 row molding
Spindle diameter	Φ70mm (Solid shaft)
Customized	Customized
Raw materials	Galvanized steel plate, color steel plate
Feed width	1200mm
Feeding method	Iron plate feeding rack
Specification	7000mm x 1300mm x 1500mm
Origin	Cangzhou, Hebei
Warranty	1 year
Usage	Building

Product Gallery

Frequently Asked Questions

Can you finish the machine during the delivery time?

We will complete production on time according to the confirmed lead time.

Do you have after-sale support?

Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.

Can it be connected to an automatic stacker?

Yes, optional systems for automatic material collection, automatic stacking, and automatic counting are available.

Will the machine's precision be compromised during transport?

Thanks to its fully welded structure and reinforced packaging, transportation will not affect the precision of the rollers or the machine frame.

What checks need to be performed before starting the machine?

Check the lubrication, voltage, emergency stop button, cutter position, feed guides, etc.
