Industrial Laser Welded Pipe Forming Machine With 55 Stations 3 KW PLC Touch Screen Control

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Manual Tensioning:

Manual Tensioning

Main Shaft Of Uncoiler:

Φ80 Mm

Forming Frame Structure:

30 Mm Thick Gantry Type, CNC Machined

Forming Stands:

55 Stations

Production Speed:

1–15 M/min (PLC Inverter Adjustable)

Roller Material:

Cr12 Mould Steel, HRC55–58

Roller Shaft:

45# Steel, Φ60 Mm

Main Motor:

4 Sets × 5.5 KW Three-phase Motor

Transmission:

Motor + Reducer + Gearbox

Laser Welder:

3 KW High-end Split Type

Control System:

PLC + Touch Screen HMI

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

welded pipe forming machine

industrial pipe forming machine

industrial pipe roll forming machine

Product Description

Industrial Laser Welded Pipe Mill High Efficiency CNC Stainless Steel Tube Manufacturing Equipment

Dongguang Hengfu Roll Forming Machine Co., Ltd. is a trusted name in high‑performance roll forming and pipe making equipment. Our laser welded pipe production line is a fully integrated, industrial‑grade solution designed for continuous, high‑precision production of metal pipes. By combining advanced roll forming technology and reliable laser welding, this machine delivers exceptional stability, consistent product quality, and long service life. It is widely recognized as a top‑performing system for pipe manufacturers seeking efficiency, accuracy, and operational reliability.

This production line follows a highly efficient process flow: decoiling, roll forming, laser welding, straightening, and non‑stop cutting. Optimized for 0.6mm galvanized steel strip, it ensures smooth material handling, uniform forming, and clean, strong welding results. The well‑designed workflow minimizes material deformation and surface defects, producing pipes with precise dimensions, excellent straightness, and a smooth finish that meets strict industry standards.

Key Components & Features

The uncoiling unit features a heavy‑duty integrated tension structure with a 2.0‑ton loading capacity, supporting a maximum strip width of 400mm and Φ500 inner coil diameter. Manual tensioning ensures stable and safe unwinding, while the Φ80 high‑rigidity main shaft ensures smooth and consistent feeding. This robust feeding system greatly improves forming accuracy and lays a solid foundation for stable production.

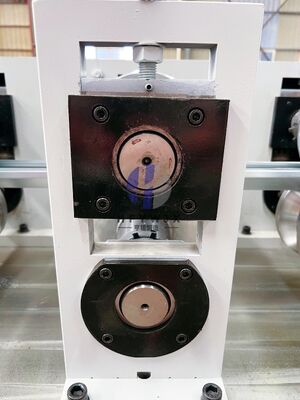

The main forming machine is built with a 30mm thick gantry‑style frame processed by CNC gantry milling for superior precision and rigidity. It includes 55 forming stations with Cr12 mold steel rollers (HRC55-58) and Φ60 quenched and tempered 45# steel shafts. Four 5.5KW three‑phase motors drive the gear transmission system, paired with high‑quality Harbin bearings for stable, low‑noise operation. Production speed is adjustable from 1-15m/min through PLC inverter control.

Equipped with a 3KW high‑configuration laser welding system and a user‑friendly PLC touch screen control system, this line ensures stable welding quality and simple operation. Every component is carefully selected and rigorously tested by Dongguang Hengfu Roll Forming Machine Co., Ltd. to ensure low maintenance, high durability, and long‑term reliable performance.

Technical Specifications

Item	Specification
Material	Galvanized steel, 0.6 mm thickness
Process Flow	Decoiling → Forming → Welding → Straightening → Non-stop cutting
Uncoiler	Manual tension; 2.0 tons load capacity; max width 400 mm; inner diameter Φ500
Forming Stands	55 stations
Roller Material	Cr12 mould steel, HRC55-58
Speed	1-15 m/min (PLC inverter adjustable)
Laser Welder	3 KW high configuration
Control System	PLC + touch screen
Dimension	approx. 25 m × 1.5 m × 1.5 m

Product Images

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.

What's the delivery time?

Normally it takes about 45 days.

What service can you provide before order?

We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.

Can you finish the machine during the delivery time?

We will complete production on time according to the confirmed lead time.

Do you have after-sale support?

Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.

Can machines be customized according to our drawings?

Yes. Simply provide the profile cross-section drawings, as well as the required sheet thickness, width, and length range, and we can design a machine model tailored specifically to your needs.
