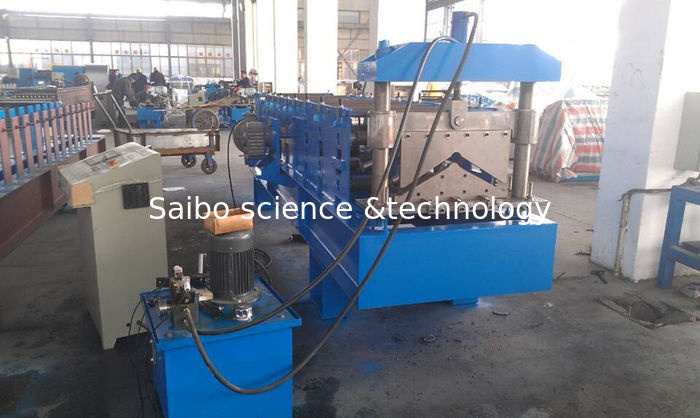

Hydraulic Metal Roofing Machines , Gutter Making Machine Wall Board Structure

Basic Information

Place of Origin:	China
Brand Name:	Saibo
Certification:	CE/ISO
Model Number:	YX120 - 300

Minimum Order Quantity:	1 set
Packaging Details:	Suitable for ocean shipment
Delivery Time:	60 working days after received deposit
Supply Ability:	negotiation

Get Best Price Contact Now

Detail Information

Power:	5.5kw+4kw	Product Name:	No Press Step Ridge Cap Roll Forming Machine
Steel Thickness:	0.4-0.6mm	Size:	120-300
Station:	11 Stations	Decoiler:	Manual Or Hydraulic
Roller Material:	45# Steel	Container Need:	1X20GP
Drive:	Chain
Highlight:	Roof Tile Roll Forming Machine , Arch Sheet Roll Forming Machine

Product Description

Main Specification:

No	Specification of the material
1	Suitable Material	Colored Steel plate, Galvanized steel up 235Mpa
2	Width of the raw material	based on profile
3	Thickness	0.4-0.6mm

The Chart of Process Flow

Hydraulic Metal Roofing Machines , Gutter Making Machine Wall Board Structure 0

Specification of Components

No		Technical Specification & Remark
1	Manual Uncoiler	Width of feeding: 500mm Capability: 3 Ton Mode of expand &fight: inner expand &fight by manual Way of feeding: manual
2	Main Roll Forming Machine	Roller material:ASTM1045 chrome plated surface with chrome Shaft diameter: ￠65mm material: SAE1045 with tempering
3	Machine structure:	Main frame by 350H beam welding Machine structure: wall board srtucture
4	Hydraulic cutting system	Material of blade/pressing mould:Cr12, 58-62 HRC hardness Power by hydraulic,5.5KW Length measuring: Automatic encoder length measuring Tolerance of length: +/- 1.5mm for each piece end product
5	Hydraulic System	Hydraulic power: 5.5kw Working pressure: 12-16Mpa adjustable Solenoid valve: 1 group Hydraulic oil: 46# hydraulic oil
6	Computer Control Cabinet	Programmable setting of profile length and quantity Operating system language: English and Chinese Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved Control panel: Button-type switch and touch screen PLC brand: Panasonic
7	Out table	Jointed by steel tube Size: about 2.0m long0.8mwide0.6-1mhigh One out table with three support roller

4. Warranty

Warranty: 1 year warranty from date of shipment
Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.
