Fully Automatic 22Rows Wall Cladding Roll Forming Machine 4kw PLC Control

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Tile Type:

Glazed Steel

Certification:

CE, SGS

Condition:

New

Customized:

Customized

Usage:

Roof, Wall

Transmission Method:

Electric

Feed Width:

416mm

Control System:

PLC

Hydraulic Pump Power:

4kw

Transport Package:

Plastic Film & Steel Wire Fixed

Package Size:

510.00cm * 90.00cm * 200.00cm

Package Gross Weight:

7000.000kg

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

wall cladding roll forming machine 4kw

4kw cladding forming machine

plc cladding forming machine

Product Description

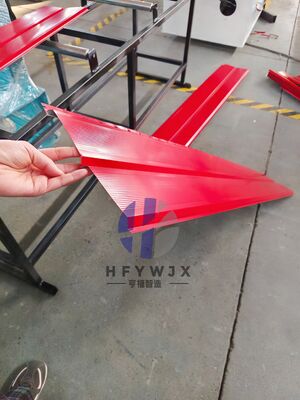

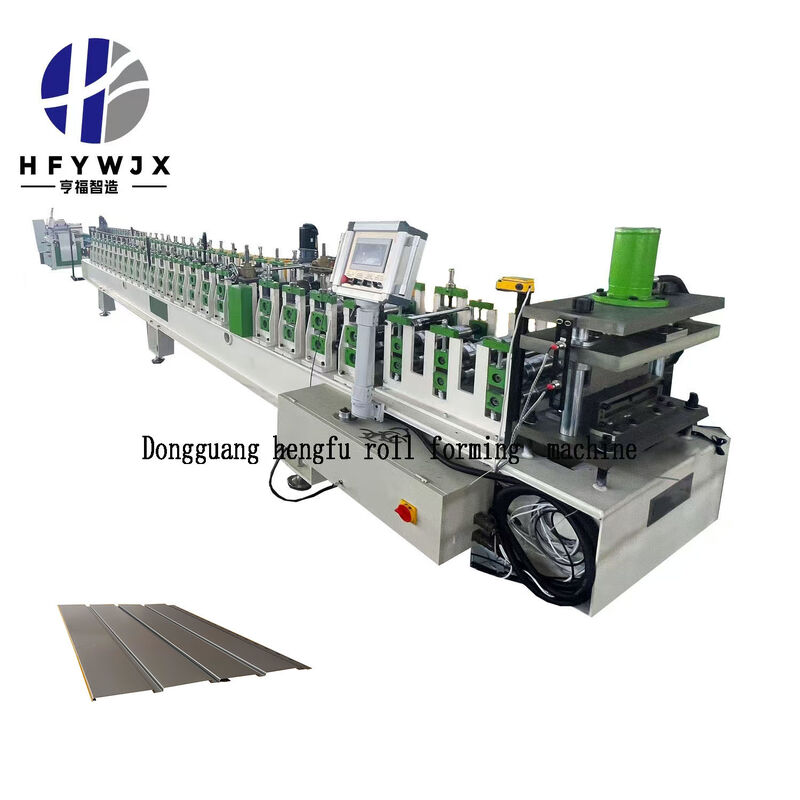

Fully Automatic High Precision Profile Wall Cladding Panel Production Line

The Profile Wall Cladding Panel Roll Forming Production Line is a fully integrated, high-precision system designed for continuous manufacturing of metal wall cladding panels used in industrial, commercial, and architectural buildings. This automated production line seamlessly combines multiple critical processes—decoiling, material guiding, roll forming, servo cutting, and intelligent control—into a single, streamlined workflow.

By eliminating manual intervention and optimizing process efficiency, the line ensures consistent product quality, high production output, and reduced labor costs, making it an essential tool for modern metal cladding manufacturers.

Key Features & Construction

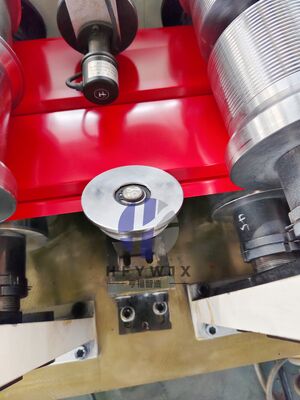

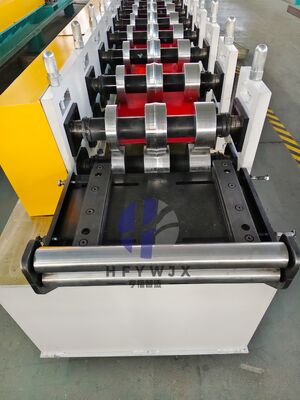

The production line features a heavy-duty steel frame structure with reinforced welding joints, ensuring long-term stability and resistance to mechanical stress even under continuous high-volume operation. The roll forming section is equipped with high-accuracy, hardened forming rollers that precisely shape metal sheets into standardized cladding profiles with tight dimensional tolerances and smooth surface finishes.

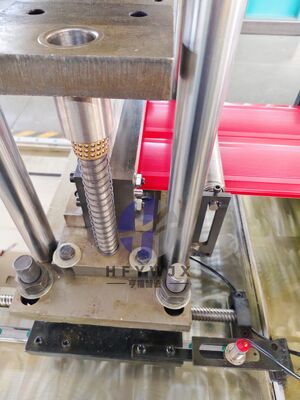

The servo cutting system, driven by a high-torque motor and precision linear guides, delivers clean, burr-free cuts with minimal material waste, further enhancing production efficiency and product consistency.

Intelligent Control System

The entire production line is controlled by an industrial-grade PLC system with a color touch screen interface, enabling real-time monitoring and precise adjustment of key parameters such as forming speed, cutting length, and material feeding rate. This intelligent control system ensures stable operation and rapid response to process variations.

Additionally, the line supports full customization of panel profiles, thicknesses, and production speeds to meet diverse market demands. By adjusting forming rollers and programming control parameters, manufacturers can quickly adapt to different project specifications, from standard architectural cladding to specialized industrial applications.

Technical Specifications

Roll Forming Section

Frame Structure	Vertical arched frame structure, 35-45 mm thick; Structure welded from annealed profile steel, base surface requires milling treatment, welded with 350# H-beam steel, and treated with anti-rust treatment after welding; Side punching device with rotating punching roller and scrap ejection mechanism.
Number of Forming Rows	22 rows
Wall Panel Thickness	20mm
Material Feeder	Two-hand crank feeder with pull cutter
Transmission Method	Gear drive
Rolling Speed	25 meters/minute
Cutting Device Type	Hydraulic shears
Hydraulic Pump Power	4 kW
Tool Material	45# steel, surface treated with hard chrome plating

Punching Section

Frame	Independent frame
Feeding Device	Servo feeder
Feeding Motor Power	1.5 kW (servo motor)

Material Loading Rack

Uncoiler	3 tons
Loosening/Clamping Mechanism	Shaft segment loosening: Manual
Main Drive Power	2.2 kW

Product Gallery

Frequently Asked Questions

How many people are required to operate the machine?

It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.

How long is the warranty period?

The entire machine comes with a 12-month warranty, excluding wear parts.

What service can you provide before order?

We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.

Is the length of the discharge rack adjustable?

Yes, our standard telescopic discharge rack can be adjusted to accommodate sheet materials of varying lengths.

How should the machine be stored when not in use for an extended period?

Disconnect the power, clean the machine, apply anti-rust oil, cover it with a dust cover, and store it in a dry environment.
