New Type Integrated Profile Roll Forming Machine M Shaped Cold Bending

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Tile Type:

Colored Steel

Certification:

CE, SGS

Condition:

New

Customized:

Customized

Usage:

Roof, Wall

Transmission Method:

Electric

Feed Width:

198±5 Mm

Control System:

PLC

Hydraulic Pump Power:

4kw

Transport Package:

Plastic Film & Steel Wire Fixed

Specification:

5100mm*900mm*2000mm

Package Size:

510.00cm * 90.00cm * 200.00cm

Package Gross Weight:

2500.000kg

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

integrated profile roll forming machine

profile roll forming machine m shaped

new profile forming machine

Product Description

New Type Integrated M-Shaped Cold Bending Forming Equipment

Our cold roll forming machine is a high-performance production system engineered to manufacture high-precision steel profiles with exceptional consistency and long-term operational reliability. Constructed with premium-grade rollers, robust welded frames, and precision-calibrated forming stations, the equipment delivers a flawless surface finish, dimensional accuracy, and unwavering performance during continuous, high-volume production runs.

Fitted with a fully automatic PLC control system, the production line seamlessly integrates coil loading, leveling, guiding, forming, servo cutting, and output into a single, uninterrupted workflow. The intuitive, operator-centric interface enables effortless parameter adjustment, rapid profile changeovers, and real-time production monitoring, guaranteeing safe, efficient, and error-free operation.

The machine is compatible with a broad spectrum of raw materials, including galvanized steel, pre-painted steel, cold-rolled steel, and aluminum sheets, providing unmatched versatility for diverse production applications. We offer full customization of every key specification: profile design, material thickness, forming speed, number of forming stations, cutting method, and electrical brand (Delta, Omron, Siemens, etc.).

Certified with CE and SGS, this new machine utilizes electric transmission and PLC control, is designed for roof and wall panel production, and is packaged with plastic film and steel wire fixation for secure transportation, ensuring reliable performance and a long service life in demanding industrial environments.

Technical Specifications

Roll Forming Section

Frame Structure	Precision milling of square boxes
Number of Forming Rows	14 rows
Wall Panel Thickness	20mm
Material Feeder	Two-hand crank feeder with pull cutter
Transmission Method	Gear drive
Forming Roller Shaft	50mm solid shaft
Cutting Device Type	Hydraulic shears
Hydraulic Pump Power	4 kW
Tool Material	CR12 Mov, hardened to 58-62 kW

Punching Section

Frame	Independent frame
Feeding Device	Servo feeder
Feeding Motor Power	1.5 kW (servo motor)

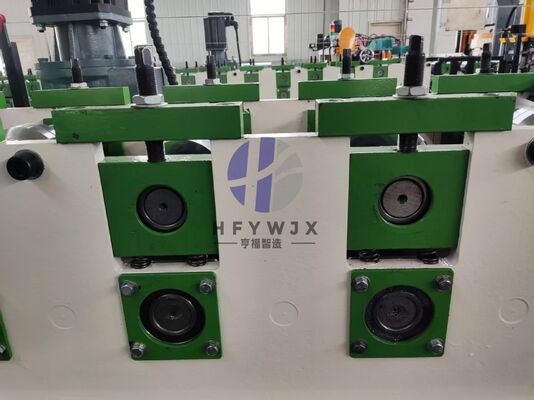

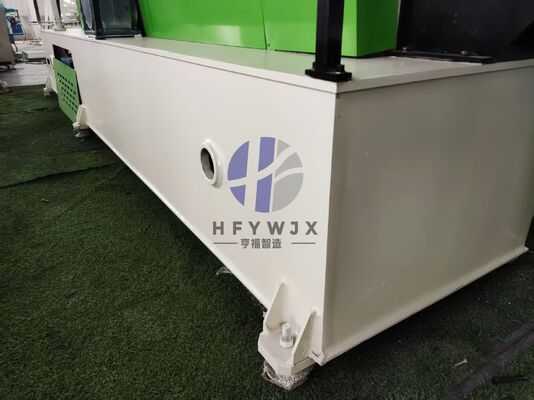

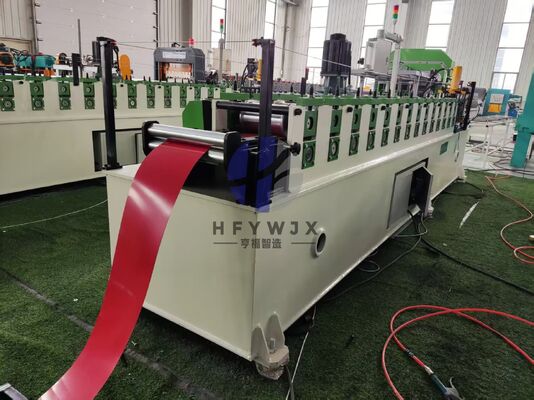

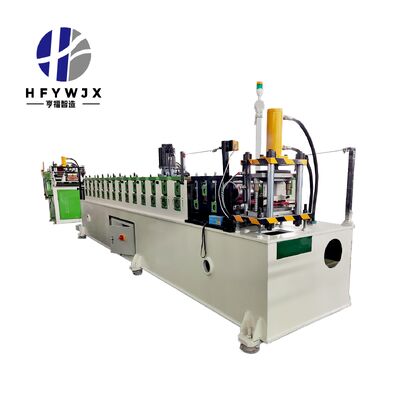

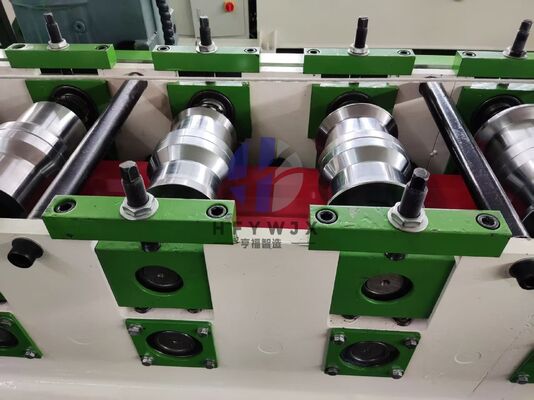

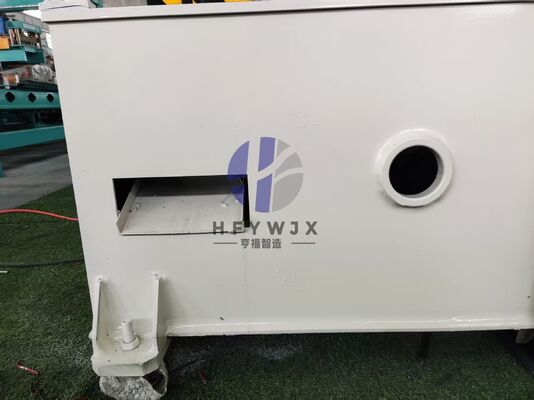

Equipment Images

Frequently Asked Questions

How should the machine be stored when not in use for an extended period?

Disconnect the power, clean the machine, apply anti-rust oil, cover it with a dust cover, and store it in a dry environment.

How many people are required to operate the machine?

It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.

What materials is this machine suitable for?

Cold-formed materials such as color-coated steel, galvanized steel, aluminum-magnesium-manganese alloy, and stainless steel.

Can you provide semi-automatic or fully automatic receiving tables?

Yes, optional configurations include pneumatic receiving, hydraulic receiving, and automatic stackers.

How can issues such as skewed or off-center sheet feeding be resolved?

The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
