Fully Automatic High Output 1110 Glazed Roof Tile Roll Former With 11kW Servo Motor

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Model:

1110 Glazed Tile Production Line

Certification:

CE, SGS

Condition:

New

Customized:

Customized

Usage:

Roof

Production Speed:

4–12 M/min

Transmission Method:

Electric

Cutting Method:

After Forming, The Material Is Cut Using A Dual Li

Package Size:

900.00cm * 130.00cm * 170.00cm

Package Gross Weight:

10000.000kg

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

automatic roof tile roll former

automatic roof tile roll forming machine

1110 roof tile roll former

Product Description

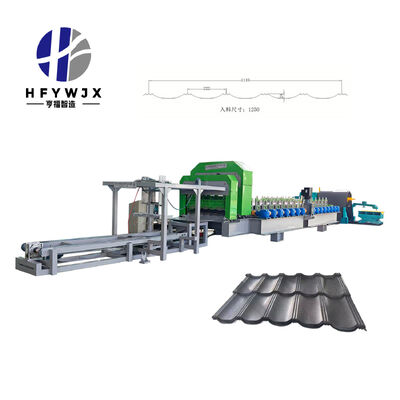

Fully Automatic High Output 1110 Glazed Tile Production Line

The 1110 glazed tile roll forming machine (Model YX24-222-1110) from Hebei Hengfu Pressing Machinery Manufacturing Co., Ltd. is a high-efficiency equipment for producing glazed tiles. It processes 1250mm width, 0.3-0.5mm thickness Q235 color steel and galvanized steel sheets with stable quality.

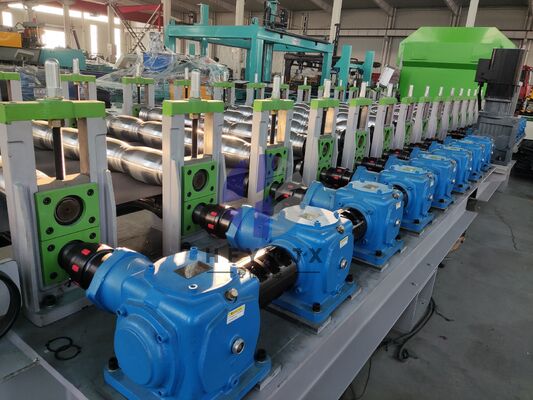

Built with 400H standard steel frame and 16mm thick wall plates, the machine is solid and durable. It has 16-21 rows of 45Cr forming rolls processed by quenching, tempering, fine turning and chrome plating. The 80mm solid main shaft and 11kW servo motor with gear drive ensure reliable running.

This machine uses post-forming double linear guide electric cutting. The Cr12Mov quenched and finely ground mold and cutter ensure burr-free cutting and long service life. The PLC control system with touch screen, remote control and alarm keeps cutting error ≤1mm.

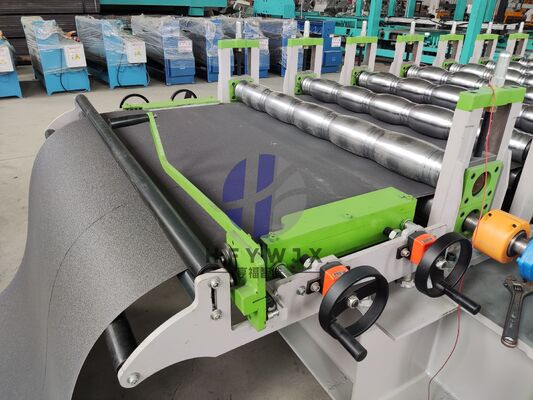

Equipped with double hand-operated feeding frame and manual cutter, the machine is user-friendly. It runs stably at 4-12m/min for continuous production. It is widely used for making glazed tiles in factories, scenic spots, pavilions, hotels and villas.

Technical Specifications

Model	1110
Feeding Width	1250 mm
Suitable Material	Color steel sheet, Galvanized steel sheet
Material Standard	Q235
Material Thickness	0.3-0.5 mm
Machine Frame	400H standard steel
Wall Plate Thickness	16 mm
Forming Roll Stations	16-21 rows
Roll Material	45Cr (quenched / tempered / finely turned / chrome plated)
Main Shaft	Φ80 mm solid shaft
Main Motor	11 kW servo motor
Transmission	Gear box drive
Production Speed	4-12 m/min
Cutting Type	Post-forming cutting, double linear guide electric shearing

Product Gallery

Frequently Asked Questions

Are customers able to visit the factory to test the machine and observe its performance firsthand?

We welcome customers--or a designated third party--to visit our factory to inspect the machine and conduct trial production runs using their own materials.

What's the delivery time?

Normally it takes about 45 days.

What service can you provide before order?

We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.

Can you finish the machine during the delivery time?

We will complete production on time according to the confirmed lead time.

Do you have after-sale support?

Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.
