Fully Automatic 300 Ridge Tile Machine with 18 Rows Forming Stations and PLC Control System

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Model:

300 Ridge Tile Machine

Customization:

Customization

Transmission Method:

1-Inch Chain Drive

External Voltage:

3-Phase 380V, 50Hz

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

300 ridge tile machine

automatic ridge cap machine

automatic ridge tile machine

Product Description

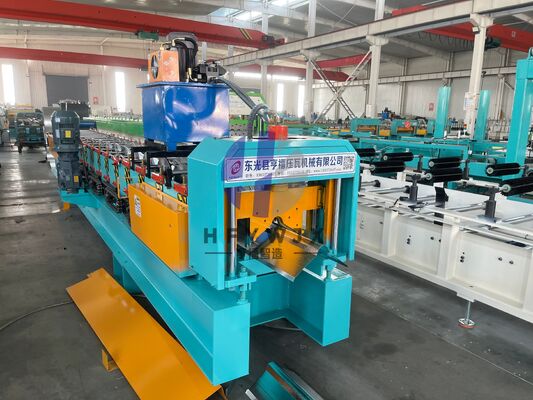

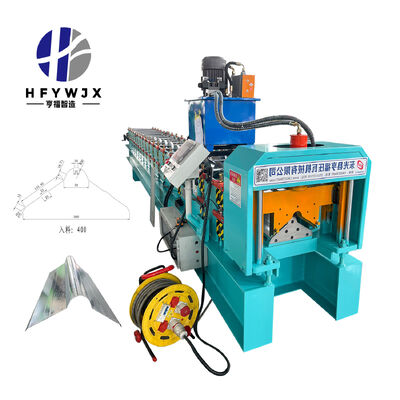

Fully Automatic Integrated 300 Ridge Tile Machine

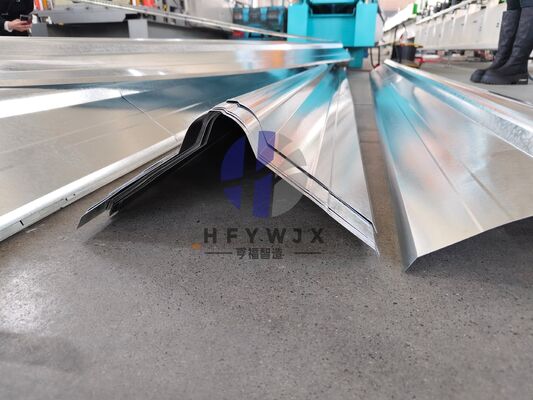

The 300 Ridge Cap Roll Forming Machine is a reliable, cost-effective solution engineered for manufacturing high-quality metal roofing ridge caps. Designed for fully automatic and continuous production, this machine is widely adopted in the construction industry, perfectly compatible with various metal roofing systems for residential, commercial, and industrial buildings.

Built with a heavy-duty, stable steel frame, the machine ensures smooth, vibration-free operation and exceptional forming performance even during long-term high-intensity production runs. The forming rollers are crafted from high-quality steel, undergoing precision machining and professional surface treatment, which delivers outstanding wear resistance and an extended service life.

Equipped with an advanced PLC control system and user-friendly touchscreen interface, the machine simplifies operation significantly. Operators can easily set production parameters such as cutting length, production quantity, and running speed with just a few taps.

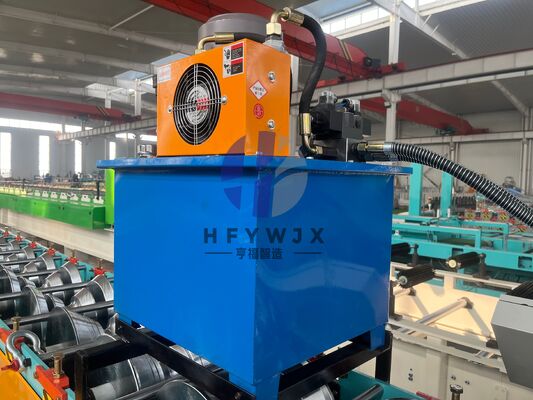

With a production speed of up to 10-20 meters per minute, this machine drastically increases productivity while maintaining strict product quality standards. Its hydraulic cutting system delivers clean, burr-free, and accurate cuts, ensuring every finished ridge tile meets the required dimensional and appearance standards.

Technical Specifications

Feature	Specification

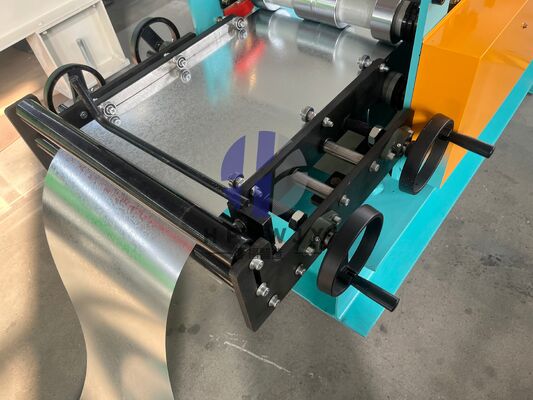

Feeding Platform	Dual-Hand Crank-Operated Feeding Stand (with Cutter)
Frame Structure	Welded 350H-Section Steel; Wall-Plate Type Construction
Wall Plate Thickness	14mm Carbon Steel Plate

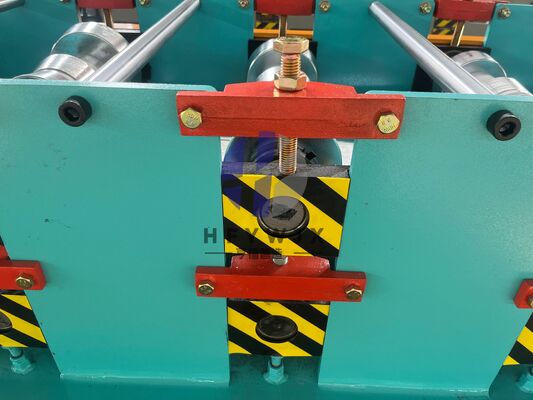

Forming Stations	18 Rows
Main Shaft Diameter	Ø70mm (Solid Shaft)
Low-Voltage Electrical Components	Limit Switches, Contactors, Relays, etc.
External Voltage	3-Phase 380V, 50Hz
Length Tolerance	±1mm
Overall Dimensions (L x W x H)	Approx. 8000mm x 900mm x 1600mm

Product Gallery

Frequently Asked Questions

What materials is this machine suitable for?

Cold-formed materials such as color-coated steel, galvanized steel, aluminum-magnesium-manganese alloy, and stainless steel.

Will the machine scratch the surface coating of the color-coated steel sheets during production?

With precision-ground and polished rollers, combined with a properly designed forming process, the machine will not scratch the sheet surface under normal operating conditions.

What checks need to be performed before starting the machine?

Check the lubrication, voltage, emergency stop button, cutter position, feed guides, etc.

What service can you provide before order?

We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
