PLC Controlled 16-Row Molding Ridge Cap Forming Machine with Electric Chain Drive for Metal Roof Tiles

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Package Size:

600.00cm * 130.00cm * 140.00cm

Package Gross Weight:

7000.000kg

Model NO.:

Ridge Tile Machine

Certification:

CE, SGS

Customized:

Customized

Transmission Method:

Electric

Transmission Mode:

1inch Chain Drive

Tile Type:

Colored Steel

Condition:

Usage:

Electronic Control System:

HS Code:

8474801000

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

plc capping roll forming machine

plc ridge cap roll forming machine

electric capping roll forming machine

Product Description

Durable 460 Ridge Cap Forming Machine Precision Metal Roof Tile Making Equipment for Professional Industrial Production

Dongguang Hengfu Roll Forming Machine Co., Ltd. delivers a high-efficiency Ridge Cap Roll Forming Machine designed specifically for the metal roofing industry. As a professional direct manufacturer with rich industry experience, Hengfu integrates precision engineering and reliable construction into every machine, ensuring stable performance and consistent high-quality output for global customers. This machine is purpose-built to form standard and customized ridge cap profiles with excellent dimensional accuracy, making it a cornerstone equipment for roofing factories, construction material suppliers, and metal processing enterprises.

Built with a heavy-duty structural frame and hardened alloy forming rollers, this ridge cap machine ensures stable running, low noise, and long service life even under continuous heavy-duty production. The roller system is precisely machined and heat-treated to avoid surface scratching, wrinkling, or deformation on galvanized steel, color-coated steel, aluminum, and other common roofing materials. It smoothly processes coil materials into uniform ridge caps, delivering clean lines, tight fits, and excellent weatherproofing performance when installed on metal roofs.

Equipped with an advanced PLC control system and user-friendly touchscreen operation, the machine supports fully automatic feeding, forming, measuring, and cutting. Operators can conveniently adjust production length, forming speed, and batch quantity to meet different order requirements. The high-precision hydraulic or pneumatic cutting system ensures clean, burr-free cutting and accurate length control, greatly improving production efficiency, reducing manual intervention, and lowering overall production costs.

What makes this ridge cap roll forming machine stand out in the global market is the outstanding quality and reliable support from Dongguang Hengfu Roll Forming Machine Co., Ltd. Every unit undergoes strict assembly, debugging, and inspection before delivery, using high-standard electrical components and durable transmission systems to ensure minimal maintenance and long-term stable operation. The company also provides flexible profile customization, professional on-site installation, and comprehensive after-sales service, allowing customers to use the equipment with confidence.

Ideal for both small-scale workshops and large-scale automated production lines, Hengfu's ridge cap machine combines cost efficiency, operational simplicity, and forming precision. With its sturdy structure, stable performance, and trusted manufacturer background, it has become a preferred choice for customers worldwide who pursue high-quality ridge cap production. Investing in this machine means improving product quality, enhancing production capacity, and gaining a reliable and long-lasting production solution supported by a professional roll forming machinery manufacturer.

Technical Specifications

Model NO	460 Ridge tiles
Machine frame	350H steel frame
Motor	4kW or 5.5kW oil pump motor
Wall panel thickness	14mm wall panels
Type of Driven	Chain drive
Number of rolling mill sets	16-row molding
Spindle diameter	70 shafts
Shear power	5.5kW servo drive
Wheels	45# wheels
Usage	Roof
Specification	6000mmx1300mmx1400mm
Origin	Cangzhou, Hebei
Warranty	1 year

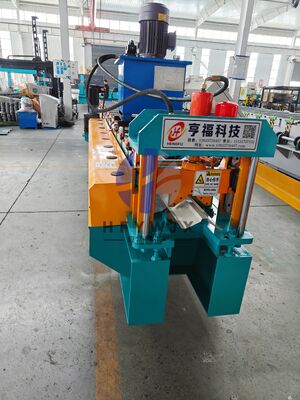

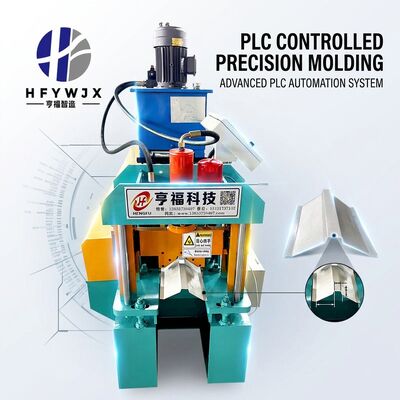

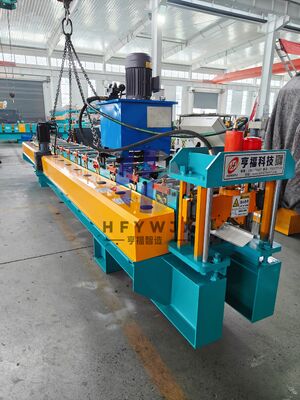

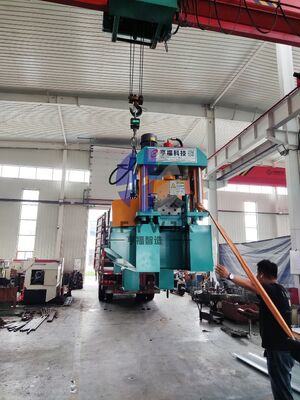

Product Images

Frequently Asked Questions

How should the machine be stored when not in use for an extended period?

Disconnect the power, clean the machine, apply anti-rust oil, cover it with a dust cover, and store it in a dry environment.

Does the machine require a foundation?

It simply requires a level concrete floor; no complex foundation is necessary.

There are no professional maintenance personnel available locally; what should we do in the long run?

We provide lifetime remote video guidance; most issues do not require on-site repair.

Is the length of the discharge rack adjustable?

Yes, our standard telescopic discharge rack can be adjusted to accommodate sheet materials of varying lengths.

Are customers able to visit the factory to test the machine and observe its performance firsthand?

We welcome customers--or a designated third party--to visit our factory to inspect the machine and conduct trial production runs using their own materials.
