Circular Round Flange Forming Machine 200-1600mm Diameter For 1.5-3mm Carbon Steel Plate

Brand Name:	HENGFU
Model Number:	Circular flange forming machine
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Stability:

Strong Stability

Applicability:

Suitable For Different Materials Of Metal

Operational Attribute:

Easy To Operate

Precision:

Meet The Flange Accuracy Requirements Of Various I

Specification:

700.00cm * 200.00cm * 180.00cm

Package Gross Weight:

6000.000kg

Production Capacity:

400 Sets/ Year

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

circular round flange forming machine

circular tdf flange forming machine

1600mm tdf flange forming machine

Product Description

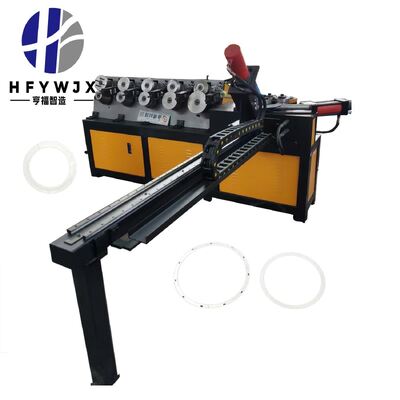

Circular Flange Forming Machine

Product Name	Round flange forming machine
Suitable Material	Carbon steel plate, stainless steel plate
Tile Box	Upper removable tile box
Angle Shear Axis	50mm (Material: Cr40 tempered)
Transmission Mode	1.2-inch quenched chain transmission
Forming System	5 rows of forming linear guide arc transmission
Round Diameter	200-1600mm
Pressing Plate Thickness	1.5-3mm carbon steel, 1.2-2mm stainless steel
Color	Customized

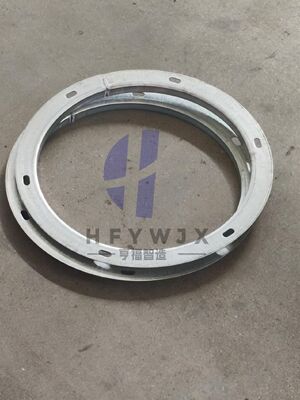

This circular flange forming machine is a specialized piece of equipment designed for the efficient production of circular flanges from carbon steel and stainless steel plates.

It features an upper removable tile box for convenient operation and maintenance, paired with a 50mm Cr40 tempered angle shear axis to ensure robust cutting performance and durability. The machine adopts a 1.2-inch quenched chain transmission system, delivering stable and reliable power transmission during operation.

With 5 rows of forming linear guide arc transmission, it can precisely form circular flanges with diameters ranging from 200mm to 1600mm. It accommodates material thicknesses of 1.5-3mm for carbon steel plates and 1.2-2mm for stainless steel plates, meeting diverse production requirements. The machine's color can be customized to align with your brand or workshop aesthetics, combining practical functionality with flexible customization for industrial flange manufacturing.

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.

What's the delivery time?

Normally it takes about 45 days.

What service can you provide before order?

We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.

Can you finish the machine during the delivery time?

We will complete production on time according to the confirmed lead time.

Do you have after-sale support?

Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.

Any other service?

We can manufacture, design, install and commission various roll forming machines, including both standard and customized ones. Machine assembly and operator training are free of charge, but the buyer is responsible for the round-trip flight tickets and accommodation for our technicians.
