| Brand Name: | HENGFU |
| MOQ: | 1 Piece |
| Payment Terms: | 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment |

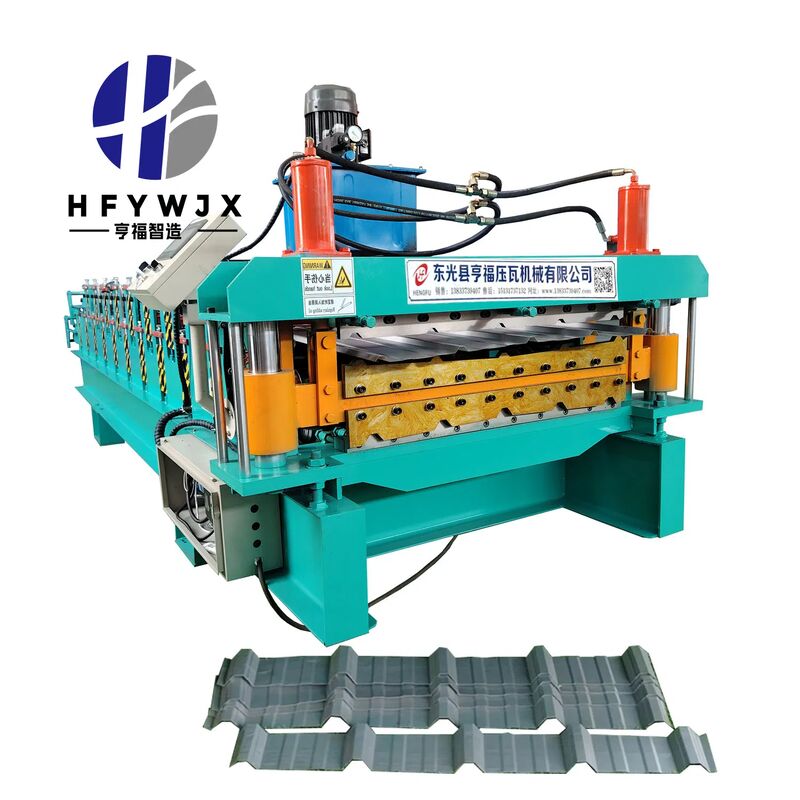

The Double Layer Roll Forming Machine integrates two independent roll forming models into one complete system. It features a scientifically designed structure, professional appearance, space-saving design, and simple operation, making it ideal for customers with limited factory space and on-site construction projects.
Each component is precisely matched to ensure stable and efficient production performance.
Switching between upper and lower layers is extremely simple. Operators can control each layer separately using the conversion button on the electric control cabinet, or independently manage power through the clutch system for flexible production switching.

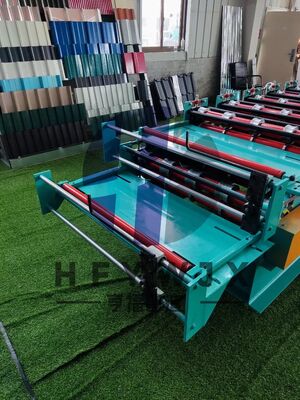

Optional configurations include ordinary unloading machines and hydraulic unloading machines to meet different production needs. The specific models of upper and lower layers can be fully customized according to customer requirements.
| Model NO | Double layer roll forming machine |
| Condition | New |
| Usage | Roof |
| External dimensions | 6500mm x 1300mm x 1200mm |
| Machine frame | 300H steel frame |
| Number of rolling mill sets | 13-11 row molding |
| Roll material | 45# steel rough lathe fine lathe outer circle grinding and electroplating treatment |
| Spindle material | 45 steel |
| Spindle diameter | Φ70mm (Solid shaft) |
| Type of Driven | Chain drive |
| Forming Speed | 0-35M/min |
| Main motor power | 7.5KW |
| Electric control system | PLC |
| Customized | Customized |
| Origin | Cangzhou, Hebei |
| Warranty | 1 year |
| Raw materials | Galvanized steel plate, color steel plate |
| Pull rod | 35mm galvanized |
