Hengfu IBR 686 Roof Sheet Roll Forming Machine with 40m/min Production Speed, 23 Forming Stations, and PLC Control System for High-Efficiency Trapezoidal Metal Roofing

All Category

Roof Wall Panel Roll Forming Machine

Glazed Tile Roll Forming Machine

Ridge Cap Roll Forming Machine

Trapezoidal Roll Forming Machine

Wall Panel Roll Forming Machine

Double Layer Roll Forming Machine

Corrugated Sheet Roll Forming Machine

High Altitude Roll Forming Machine Platform

High Altitude Lifting Platform

Light Steel Frame Roll Forming Machine

Roller Shutter Door Roll Forming Machine

Flexible Connection Production Line

Cable Tray Roll Forming Machine

Solar Bracket Roll Forming Machine

Shelf Panel Roll Forming Machine

Auxiliary Equipment

Mrs. Mandy

sale@hengfumachinery.com

13833739407

wxid_279xvchbsl5d22

Chat Now

Hengfu IBR 686 Roof Sheet Roll Forming Machine with 40m/min Production Speed, 23 Forming Stations, and PLC Control System for High-Efficiency Trapezoidal Metal Roofing

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Model NO:

Model NO

Customization:

Available

Transmission Mode:

1 Inch Chain Drive

Cutting Method:

Electric Shears

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

40m/min roll forming machine

40m/min trapezoidal sheet forming machine

plc roll forming machine

Product Description

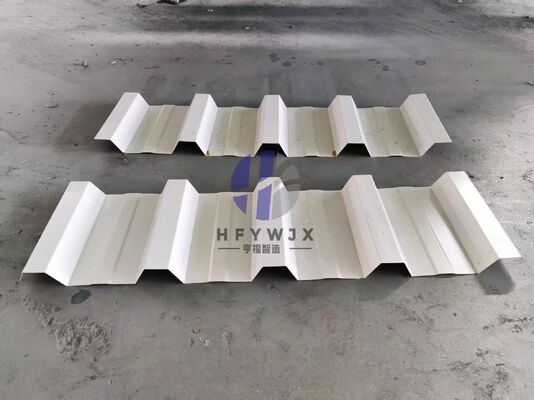

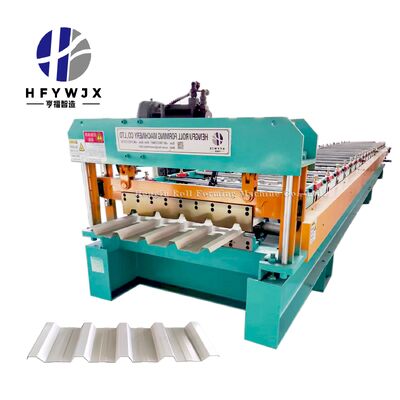

Hengfu IBR 686 Roof Sheet Roll Forming Machine High Speed Trapezoidal Metal Roofing Machine

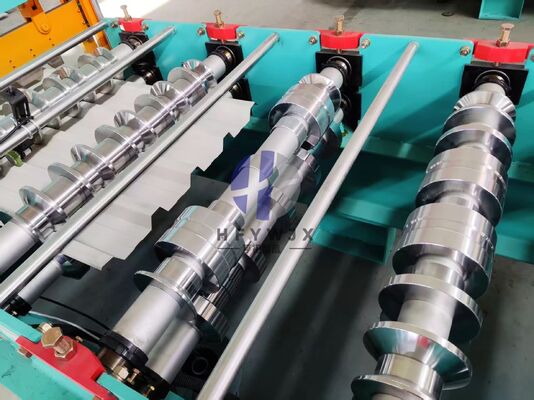

This IBR 686 roof sheet roll forming machine is engineered for high-efficiency production of trapezoidal metal roofing sheets, specifically designed for the African market. The machine features a robust 350H steel welded frame with 16 mm thick wall plate construction, ensuring exceptional stability and long-term durability during continuous operation. With 23 forming stations and 80 mm solid shafts manufactured from premium 45# steel, the machine delivers precise forming performance and consistent sheet quality.

The power and transmission system incorporates a 7.5 kW servo motor paired with a reliable chain transmission, achieving production speeds up to 40 meters per minute. The rollers, crafted from 45# steel with precision machining and surface hardening, significantly enhance wear resistance and extend operational lifespan.

A key feature is the cutting system, which utilizes a servo-driven flying cutting device with patented linear guide rail technology. This enables smooth, precise cutting without interrupting machine operation, resulting in optimal efficiency and minimal material waste. Cutting blades are manufactured from Cr12 alloy steel, providing superior hardness and durability.

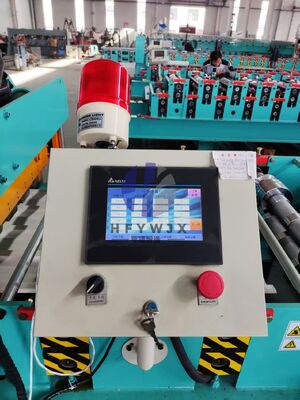

The control system is PLC-based with an integrated touchscreen interface, offering intuitive operation and user-friendly functionality. The machine supports automatic length setting and precise counting capabilities, making it ideal for large-scale production requirements.

This model is particularly well-suited for African markets due to its robust construction, stable performance, and compatibility with galvanized steel and other commonly used roofing materials in the region. It represents an optimal solution for roofing sheet manufacturers seeking high productivity, minimal maintenance, and extended service life.

Technical Specifications

Model NO.	686 Roll Forming Machine
Usage	Roof, Wall, Floor
Speed	0-40m/Min
Main Motor	7.5kw
Voltage	380V/50Hz, 3p or Customized as Customer' Request
Roller Station	23 rows
Spindle diameter	80mm (solid shaft)
Transmission method	Gear transmission
Cutting method	Linear guide shear
Touch screen	PLC
Origin	Botou cangzhou hebei
Warranty	1 year
