PLC Controlled T-Profile Roll Forming Machine with 16 Forming Rows and Customizable Voltage for Precision Metal Profiles

Brand Name: HENGFU
MOQ: 1 Piece
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Tile Type:
Colored Steel
Certification:
CE, SGS
Condition:
New
Customized:
Customized
Usage:
Roof
Transmission Method:
Electric
Feed Width:
119±5mm
Control System:
PLC
Hydraulic Pump Power:
4kw
Transport Package:
Plastic Film & Steel Wire Fixed
Specification:
5100mm*900mm*2000mm
Package Size:
510.00cm * 90.00cm * 200.00cm
Package Gross Weight:
2500.000kg
Packaging Details:
Plastic Film & Steel Wire Fixed
Highlight:

plc profile forming machine

,

plc profile roll forming machine

,

t profile forming machine

Product Description
Multi-functional Intelligent T-shaped Cold Bending Forming Equipment
The T-Profile Roll Forming Machine is a specialized production line designed for the manufacturing of T-shaped metal profiles. These profiles play a vital role in various structural applications, including ceiling suspension grids, partition walls, door frames, and load-bearing supports in curtain wall constructions.
The core of the machine lies in its continuous cold roll forming process. This method ensures that each profile is formed with consistent precision and a smooth, burr-free surface. This advanced technology delivers stable performance and high-quality output that is hard to match with traditional processing methods.
Built for stability and longevity, the machine features hardened roller stations that resist deformation. It is controlled by an industrial-grade PLC system for automatic operation, with hydraulic or servo cutting for smooth and accurate material separation. This setup ensures minimal maintenance and maximum operational stability.
The machine supports a diverse range of raw materials, including galvanized steel, carbon steel, stainless steel, and aluminum. To cater to individual project needs, the final profile size can be flexibly customized according to the customer's technical drawings, providing a tailored solution for each client.
Technical Specifications
Roll Forming Part
Frame structure Precision milling of square boxes
Number of molding passes 16 rows
Wall panel thickness 20mm
Feed rack Two-hand crank feed belt with knife pull
Electrical control system configuration Split touchscreen electrical control box with remote control
Screws/Pull Rods Standard screws, 35 pull rods
Roller speed 0.5m/min, 4m/min
Forming rollers 45# steel, rough machining + finish turning + external cylindrical grinding + electroplating, hardness 45-50 HRC
Shearing device 5.5kW servo electric shear
Hydraulic pump power 4KW
Punching Section
Rack Freestanding rack
Feeding device Servo feeding
Feeding motor power 1.5 kW servo motor
Product Gallery

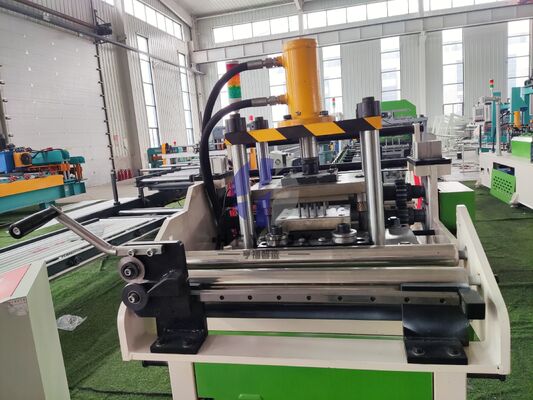

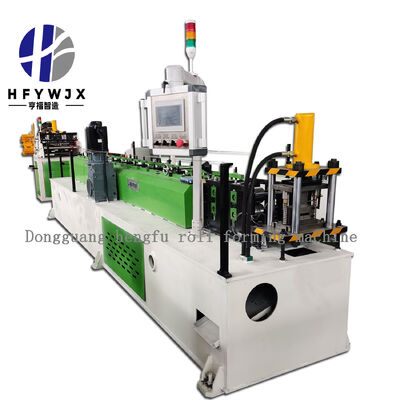

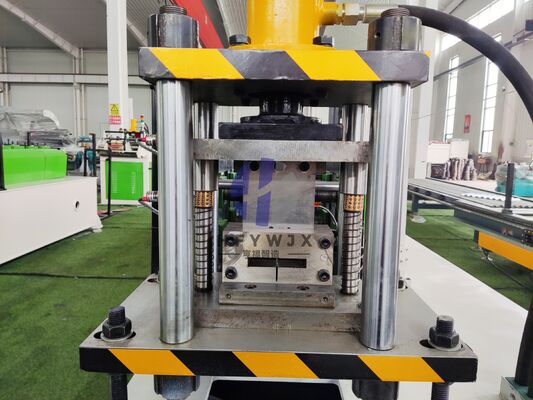

PLC Controlled T-Profile Roll Forming Machine with 16 Forming Rows and Customizable Voltage for Precision Metal Profiles 0 PLC Controlled T-Profile Roll Forming Machine with 16 Forming Rows and Customizable Voltage for Precision Metal Profiles 1 PLC Controlled T-Profile Roll Forming Machine with 16 Forming Rows and Customizable Voltage for Precision Metal Profiles 2 PLC Controlled T-Profile Roll Forming Machine with 16 Forming Rows and Customizable Voltage for Precision Metal Profiles 3 PLC Controlled T-Profile Roll Forming Machine with 16 Forming Rows and Customizable Voltage for Precision Metal Profiles 4
Frequently Asked Questions
Can a laminating machine be added?
Yes, it allows for an integrated production line combining lamination and forming.
How many people are required to operate the machine?
It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.
Can the voltage be customized to meet our country's standards?
Yes: 380V/220V, 50Hz/60Hz—both three-phase and single-phase options are available.
Can you provide semi-automatic or fully automatic receiving tables?
Yes, optional configurations include pneumatic receiving, hydraulic receiving, and automatic stackers.
How can issues such as skewed or off-center sheet feeding be resolved?
The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
PLC Controlled T-Profile Roll Forming Machine with 16 Forming Rows and Customizable Voltage for Precision Metal Profiles 5
