2.0 - 3.5 Thickness Guide Rail Roll Forming Machine With Gear Box Drive 50m/Min

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: Guide Rail
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 days
Supply Ability: 300 sets per year
Detail Information
Product Name: Guide Rail Roll Forming Machine Shaft Diameter: 40CR
Steel Thickness: 2.0-3.5mm Structure: Wire-electrode Cutting Structure
Total Power: 40KW Roll Station: 28 Stations With One Station Of Rectify
Forming Speed: 30-50m/min Drive System: By Gear Box
High Light:

Solar Roll Forming Machine 50m/min


Solar Guide rail Roll Forming Machine


3.5mm Solar Roll Forming Machine

Product Description

Struct profile is extensive use , not only can be widely used in solar support, but also can be used in seismic support, its high strength, simple installation, has been widely recommended and used in the construction industry.

Struct profile include different sizes also. We provide one machine can make difference sizes, can change rollers or change full forming by cassette design.

To improve line speed, we give full line by high speed and strong design, we give rolling punching & cutting and each station by gear box. Rolling punching speed up to 60m/min

1. Main speficication:


Suitable Material GI, SS, HR, CR


Width of the raw material 110-240MM
3 Thickness 2.0-3.5mm

2.0 - 3.5 Thickness Guide Rail Roll Forming Machine With Gear Box Drive 50m/Min 0


2.  The Chart of Process Flow

Feeding—Roll Forming—Rectify—Fly Saw Cutting—Auto stacker


3, Machine pictures for reference

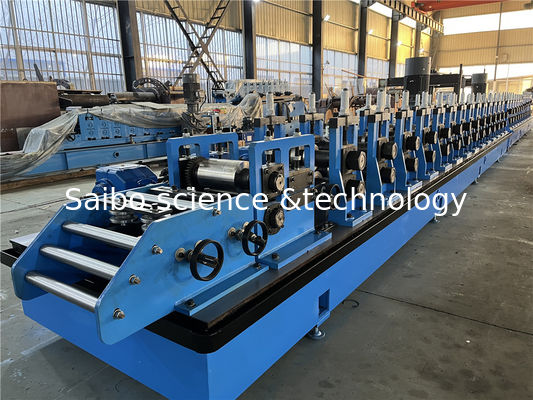

2.0 - 3.5 Thickness Guide Rail Roll Forming Machine With Gear Box Drive 50m/Min 1

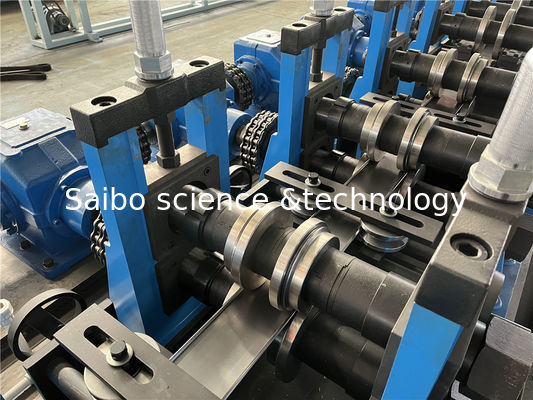

2.0 - 3.5 Thickness Guide Rail Roll Forming Machine With Gear Box Drive 50m/Min 2

4. Specification of Components

No   Technical Specification & Remark

Roll forming



  • Roll station:27stations +1 station of torque head
  • Roller material: Cr12mov with heat treatment, HRC 58-82, surface with chrome
  • Shaft diameter: ¢85mm material: 40CR,
  • Main motor: 37KW
  • Forming speed: 30-50m/min
  • Machine drive part will be covered with protective cover

Fly saw cuttings system





  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade: Cr12MOV, 58-62 HRC hardness
  • Cutting power by hydraulic,7.5KW
  • Servo power: 3KW Yaskawa
  • Working pressure:16Mpa
  • Cutting and servo in the middle under cutting
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.0mm for each piece end product

Computer Control Cabinet



  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • Length inaccuracy can be amended easily.
  • Control panel: Button-type switch and touch screen
  • Unit of length: millimeter
  • PLC: Siemens


5. Packing & Delivery

  • Deliver time: take goods after receive deposit 80 days
  • Packing: suitable of ocean transportation

6. Warranty

  • Warranty: 1 year warranty from date of shipment
  • Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if manufacturer’s engineer has to be for installation new machine.
