1.5 - 3.0mm CZ Purlin Roll Forming Machine 16 Stations With Punching Units

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: CZ
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 60 working days after received deposit
Supply Ability: 300 sets per year
Detail Information
Product Name: CZ Purlin Roll Forming Machine Power: 22.5kw
Size: CZ Steel Thickness: 1.0-3.0mm
Decoiler: Manual Or Hydraulic Station: 16 Stations
Roller Material: Gcr15 Drive: Chain
Container Need: 1X40GP Material: Galvanized Steel
High Light:

1.5mm CZ Purlin Roll Forming Machine


CZ Purlin Forming Machine With Punching


16 stations CZ Purlin Forming Machine

Product Description

CZ Purlin Roll Forming Machine

C/Z Purlin as one of important section in PEB, in same machine can make C channel, C lip channel, Z purlin and Sigma section. and the web & flange all automatic adjustable by servo motor to get high accuracy. And we give gear box for drive; Change C to Z in automatic also, n a real sense to achieve full automation production


1.Main specification

No Specification of the material



Suitable Material Carbon steel and Galvanized steel



Width of the raw material Based on the purlin sizes.
3 Thickness 1.5mm-3.0mm


2.Specification of Components

No   Technical Specification & Remark

Manual Un-coiler



  • Width of feeding: 500mm
  • Capability: 3 Ton
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual
  • Color: blue

Leveling part



  • Flattener roller: upper is 3 rollers, down is 4 stations(total is 7 rollers)
  • Flattener roller material: SAE 1045 thermal treatment hardness 48-52 HRC.
  • Diameter of flattener shaft:¢70mm, material is SAE 1045, hardening and tempering

Main Roll Forming Machine



  • Roll station:16 stations+ one station of rectify
  • Main power: 15kw
  • Roller material:Gcr15, 58-62,HRC hardness and chrome plated surface
  • Shaft diameter: ¢70mm material: SAE1045

Machine structure:



  • Main frame by 350H beam welding
  • Machine structure: wire electrode cutting system
  • Drive by gear box

Hydraulic cutting system



  • Machine adopt hydraulic post cutting system.
  • Cutting power by hydraulic, 7.5KW
  • Cutting after forming: Cut the sheet after roll forming to required length
  • Cutting motion: The main machine will stop when cutting, after the motion the machine will continue automatically.
  • Material of blade:Cr12 with heat treatment 58-60°
  • Tolerance of length: 3000mm+/- 1.5mm

Hydraulic System






  • Hydraulic power: 7.5kw
  • Solenoid valve: 1 group
  • Hydraulic oil: 46# hydraulic oil




Computer Control Cabinet





  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • Length inaccuracy can be amended easily.
  • PLC brand: Panasonic

Out table



  • Jointed by steel tube
  • Size: about 2.0m long*0.8mwide*0.6-1mhigh
  • One out table with three support roller
  • Quantity: 2 units


3.Profile drawing:

1.5 - 3.0mm CZ Purlin Roll Forming Machine 16 Stations With Punching Units 0


4.The Chart of Process Flow


Un-coiler—Leveling —Pre-cutting—Punching—Roll Forming—Post Cutting—out table


5. Machine pictures for reference

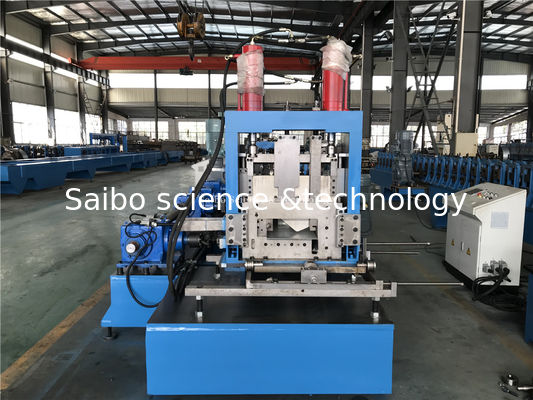

1.5 - 3.0mm CZ Purlin Roll Forming Machine 16 Stations With Punching Units 1

1.5 - 3.0mm CZ Purlin Roll Forming Machine 16 Stations With Punching Units 2


6. Warranty

  • Warranty: 1 year warranty from date of shipment
  • Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 80$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.
