Automatic Storage Shelf Panel Roll Forming Machine 14 Row Molding And PLC Control System

Brand Name:	HENGFU
Model Number:	Storage Shelf Forming Machine
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Tile Type:

Colored Steel

Certification:

CE, SGS

Condition:

Customized:

Customized

Usage:

Roof, Wall

Transmission Method:

Electric

Transmission Mode:

Motor

Package Size:

1800.00cm * 150.00cm * 150.00cm

Package Gross Weight:

7000.000kg

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

storage shelf panel roll forming machine

shelf panel roll forming machine 14 row

automatic rack panel roll forming machine

Product Description

Storage Shelf Forming Machine

This automatic storage shelf forming machine is designed for efficient production of high-quality shelf components with precise molding capabilities and customizable specifications.

Technical Specifications

Model NO	Storage shelf forming machine
Condition	New
Automatic Grade	Automatic
Working Speed	8-11m/min
Spindle diameter	Φ80
Number of rolling mill sets	14 row molding
Maximum cutting width	200mm
Production discharge speed	0-10m/min
Transmission mode	The motor drives the reducer and then drives the gear transmission
Specification	18000mm1500mm1500mm
Rolling material	Q235 galvanized sheet
Weight of load-bearing steel strip	3.0 tons
Structural form	integral tension structure
Rack	Made of steel welded square tube rack
Control System	PLC
Customized	Customized
Origin	Cangzhou, Hebei
Transport Package	Plastic Film & Steel Wire Fixed
HS Code	8455221000

Machine Components

Feeding device: Used to place metal sheets or coils to provide raw materials for production
Leveling machine: Flattens metal materials to ensure the flatness of subsequent processing
Feeder: Conveys the flattened materials to the next process at the set speed and length
Punching system: Punches various hole types on the material according to design requirements
Forming machine: Bends the material through multiple sets of rollers to achieve required shelf component shape

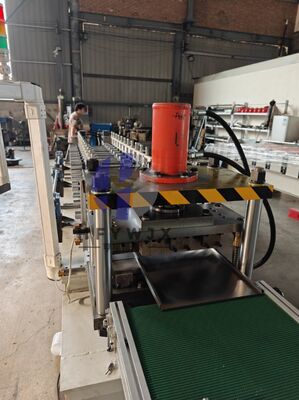

Fixed-length cutting device: Cuts the formed material according to specified length requirements

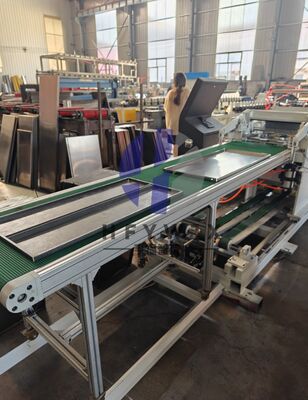

Collection table: Used to collect the processed shelf components
Electric control box: Uses PLC control to automate and monitor the entire production process

Key Features

Efficient production: Fast and continuous production capabilities improve shelf component production efficiency
Precise molding: Advanced control systems and molding molds ensure component precision and shelf stability
Customized service: Accommodates different materials, specifications and shapes based on customer requirements
Flexible changeover: Easily adapts to different product lines for multi-variety, small-batch production

Production Process

The complete production process includes unwinding, leveling, servo feeding, punching system, double-sided roll forming, hydraulic automatic cutting and bending, receiving table, and automatic welding steps.

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.

What's the delivery time?

Normally it takes about 45 days.

What service can you provide before order?

We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.

Can you finish the machine during the delivery time?

We will complete production on time according to the confirmed lead time.

Do you have after-sale support?

Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.

Any other service?

We can manufacture, design, install and commission various roll forming machines, including both standard and customized ones. Machine assembly and operator training are free of charge, but the buyer is responsible for the round-trip flight tickets and accommodation for our technicians.
