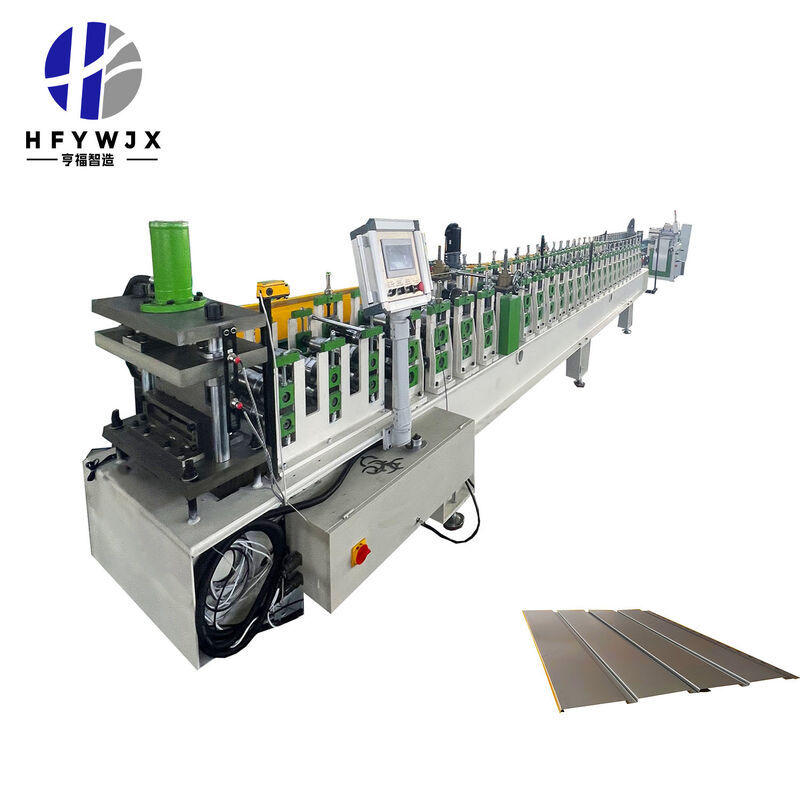

The Profile Wall Cladding Panel Roll Forming Production Line is a high-precision, fully automated system designed for the continuous manufacturing of metal wall cladding panels used in industrial, commercial, and architectural buildings. This equipment addresses the growing demand for efficient, standardized cladding production by integrating key processes into a single streamlined workflow.

Ideal for manufacturers, construction companies, and metal building suppliers, this system enhances productivity, reduces costs, and delivers consistent, high-quality cladding solutions.

Automated Production System

The production line seamlessly combines decoiling, material guiding, roll forming, servo cutting, and intelligent control into an end-to-end automated system. This integration eliminates manual handling, minimizes production errors, and ensures continuous, high-speed operation.

The modular design allows for easy customization and scalability, making it adaptable to both small-scale workshops and large-volume manufacturing facilities.

Robust Construction & Precision Engineering

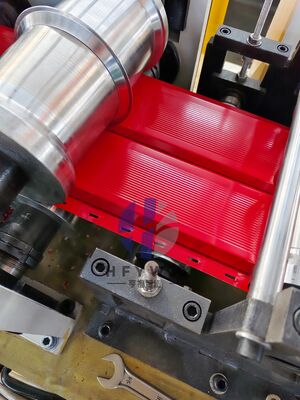

Built with a heavy-duty steel frame and reinforced welding joints, the line ensures long-term stability and resistance to mechanical stress. The roll forming section features hardened, high-accuracy rollers that precisely shape metal sheets into standardized cladding profiles with tight dimensional tolerances and smooth surface finishes.

The servo cutting system, driven by high-torque motors and precision linear guides, delivers clean, burr-free cuts with minimal material waste, further enhancing production efficiency.

Intelligent Control System

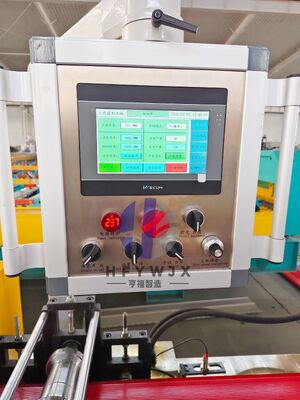

The line is controlled by an industrial-grade PLC system with a color touch screen interface, enabling real-time monitoring and precise adjustment of key parameters such as forming speed, cutting length, and material feeding rate. This intelligent system ensures stable operation and rapid response to process variations.

Additionally, the line supports full customization of panel profiles, thicknesses, and production speeds to meet diverse market demands. Manufacturers can quickly adapt to different project specifications by adjusting forming rollers and programming control parameters.

Technical Specifications

Roll Forming Section

Frame Structure	Vertical arched frame structure, 35-45 mm thick; Structure welded from annealed profile steel, base surface requires milling treatment, welded with 350# H-beam steel, and treated with anti-rust treatment after welding; Side punching device with rotating punching roller and scrap ejection mechanism
Number of Forming Rows	22 rows
Wall Panel Thickness	20mm
Material Feeder	Two-hand crank feeder with pull cutter
Transmission Method	Gear drive
Rolling Speed	25 meters/minute

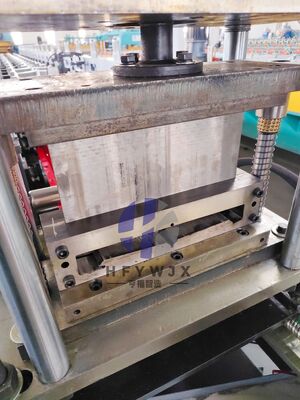

Cutting Device Type	Hydraulic shears
Hydraulic Pump Power	4 kW
Tool Material	45# steel, surface treated with hard chrome plating

Punching Section

Frame	Independent frame
Feeding Device	Servo feeder
Feeding Motor Power	1.5 kW (servo motor)

Material Loading Rack

Uncoiler	3 tons
Loosening/Clamping Mechanism	Shaft segment loosening: Manual
Main Drive Power	2.2 kW

Product Gallery

Frequently Asked Questions

Do you have customers for your equipment in our country?

Yes, we have established customers in the Middle East, North Africa, and various European countries.

How long is the warranty period?

The entire machine comes with a 12-month warranty, excluding wear parts.

What service can you provide before order?

We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.

Is the length of the discharge rack adjustable?

Yes, our standard telescopic discharge rack can be adjusted to accommodate sheet materials of varying lengths.

How should the machine be stored when not in use for an extended period?

Disconnect the power, clean the machine, apply anti-rust oil, cover it with a dust cover, and store it in a dry environment.
