3 Ton Downpipe Roll Forming Machine 12-16Mpa Adjustable 0.4-0.5mm Thickness

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: YX41
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 60 working days after received deposit
Supply Ability: 300 sets per year
Detail Information
Product Name: Downspout Roll Forming Machine Power: 4kw+5.5kw+2.2kw
Steel Thickness: 0.4-0.5mm Decoiler: Hydraulic
Station: 20 Stations Roller Material: 45# Steel
Drive: By Chain Container Need: 1X40GP
Highlight:

Downspout Roll Forming Machine

,

Steel Pipe Making Machine


Product Description

 Main specification



No Specification of the material

1



Suitable Material Colored Steel plate, Galvanized steel

2



Width of the raw material based on profile
3 Thickness 0.4-0.5mm





Profile drawing:

3 Ton Downpipe Roll Forming Machine 12-16Mpa Adjustable 0.4-0.5mm Thickness 0

The Chart of Process Flow

3 Ton Downpipe Roll Forming Machine 12-16Mpa Adjustable 0.4-0.5mm Thickness 1

Hydraulic Uncoiler—Roll Forming—Cutting—out table



Specification of Components



No   Technical Specification & Remark
1

Hydraulic Uncoiler







  • Capability: 3 Ton
  • Mode of expand &fight: inner expand &fight by Hydraulic
  • Way of feeding: electrical
  • main power; 4kw
2

Main Roll Forming Machine





  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢56mm material: SAE1045 with tempering
3

Machine structure:





  • Main frame by 350H beam welding
  • Machine structure: wall board panel
4

Hydraulic cutting system





  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,5.5KW
5

Hydraulic System











  • Hydraulic power: 5.5kw
  • Working pressure: 12-16Mpa adjustable





6

Computer Control Cabinet







  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • Length inaccuracy can be amended easily.
  • PLC: Panasonic
7

Out table





  • Size: 2m
  • One out table with three support roller
  • Quantity: 2 units
8

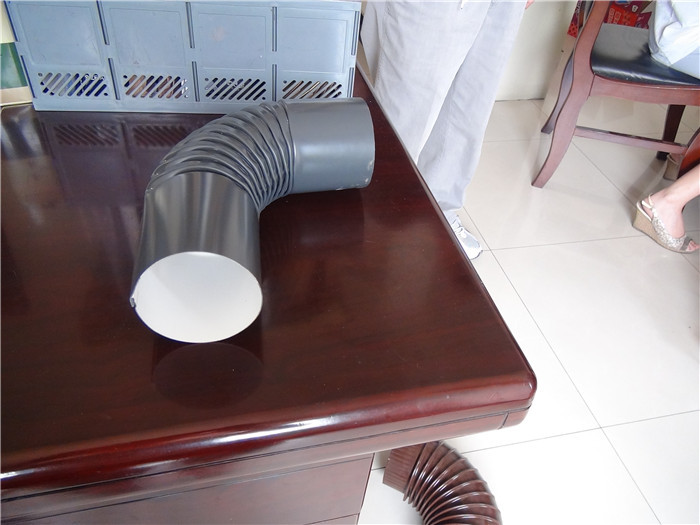

Bending machine







  • Max bend angle: 90°
  • Function: bend and fasten at the same time
  • power; 2.2kw





6. Warranty

  • Warranty: 1 year warranty from date of shipment
  • Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.
