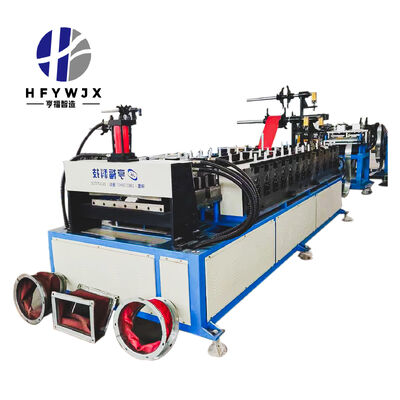

380V 3Phase Flexible Connection Production Line Automated PLC Control For High Efficiency

Brand Name: HENGFU
MOQ: 1 Piece
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Model NO.:
Flexible Connection Production Line
Certification:
CE, SGS
Customized:
Customized
Transmission Method:
Electric
Transport Package:
Plastic Film & Steel Wire Fixed
Production Capacity:
500sets/Year
Packaging Details:
Plastic Film & Steel Wire Fixed
Highlight:

3phase flexible connection production line

,

380v flexible duct connector machine

,

380v flexible connection production line

Product Description
Flexible Connection Production Line with High Efficiency and Intelligent Automation
Designed for high-efficiency manufacturing of flexible connectors, this full-production line from Dongguang Hengfu Roll Forming Machine Co., Ltd. integrates precision forming, punching, and cutting in one automated system. Engineered to process galvanized steel sheets and fire-resistant fabric, it delivers stable, consistent performance for producing flexible connectors used in ventilation, dust removal, and pipeline systems.
Product Overview
This flexible connector roll forming machine supports galvanized steel sheets with a thickness of 0.3-0.6 mm and a width range of 50-105 mm, and is compatible with fire-resistant fabric from 120 mm to 450 mm. It produces finished flexible connectors with an adjustable width of 180-600 mm to meet diverse project specifications.
Technical Specifications
Item Specification
Applicable Material Galvanized steel sheet; Fire-resistant fabric
Material Thickness Galvanized sheet: 0.3-0.6 mm
Material Width Galvanized sheet: 50-105 mm
Fire-resistant fabric: 120-450 mm
Finished Product Width 180-600 mm
Forming Stands 12 stands
Main Shaft Cr40 steel, precision machined
Rollers High-grade Gcr15 bearing steel, 0.05 mm hard chrome plating
Main Motor 3 KW with cycloidal pinwheel reducer
Forming Speed 6-8 m/min
Machine Frame 80*80 square tube welded structure; vertical plate 14 mm thick
Voltage 380V / 50Hz / 3Phase (customizable)
Overall Dimensions Approx. 3.5 m * 2 m * 1.5 m
Working Flow Uncoiling → Servo feeding & punching → Roll forming → Punching → Cutting → Collecting
Equipment Configuration Main forming machine: 1 set
Punching & cutting dies: 4 sets
Control system: 1 set
Servo feeding & punching unit: 1 set
Hydraulic power unit: 1 set
Electric uncoiler: 2 sets
Electric coiler: 1 set
Key Features
  • Built with industrial-grade components for exceptional durability
  • 12 forming stands for smooth and accurate profile shaping
  • Dedicated PLC control system for precise operation
  • Servo feeding unit and hydraulic power unit included
  • Compact layout saves valuable workshop space
  • Fully automated workflow reduces manual intervention
Product Gallery
380V 3Phase Flexible Connection Production Line Automated PLC Control For High Efficiency 0 380V 3Phase Flexible Connection Production Line Automated PLC Control For High Efficiency 1 380V 3Phase Flexible Connection Production Line Automated PLC Control For High Efficiency 2
Frequently Asked Questions
Is the electrical system susceptible to moisture damage?
The electrical cabinet features a dust-proof and moisture-resistant design, allowing it to operate normally even within a simple outdoor shelter.
Will the machine scratch the surface coating of the color-coated steel sheets during production?
With precision-ground and polished rollers, combined with a properly designed forming process, the machine will not scratch the sheet surface under normal operating conditions.
Can the machine produce stainless steel sheets? What are the requirements for the equipment?
Yes, it can; however, it requires reinforcing the forming frames, increasing the hardness of the rollers, and adjusting the forming process.
Can you provide semi-automatic or fully automatic receiving tables?
Yes, optional configurations include pneumatic receiving, hydraulic receiving, and automatic stackers.
What checks need to be performed before starting the machine?
Check the lubrication, voltage, emergency stop button, cutter position, feed guides, etc.
380V 3Phase Flexible Connection Production Line Automated PLC Control For High Efficiency 3
