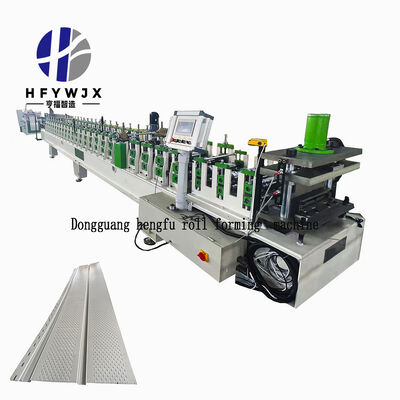

PLC Controlled Profile Metal Wall Panel Roll Forming Machine With 22 Rows And Hydraulic Shears Cutting

Brand Name:	HENGFU
Model Number:	Profile Metal Wall Panel Roll Forming Machine
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Tile Type:

Glazed Steel

Certification:

CE, SGS

Condition:

Customized:

Customized

Usage:

Roof, Wall

Transmission Method:

Electric

Feed Width:

416mm

Control System:

Hydraulic Pump Power:

Transport Package:

Plastic Film & Steel Wire Fixed

Specification:

5100mm*900mm*2000mm

HS Code:

8455221000

Production Capacity:

500pieces/Years

Package Size:

510.00cm * 90.00cm * 200.00cm

Package Gross Weight:

7000.000kg

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

plc metal wall panel machine

plc wall panel roll forming machine

profile metal wall panel machine

Product Description

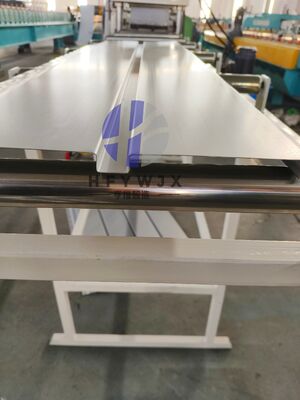

Profile Metal Wall Panel Roll Forming Machine

The Profile Wall Cladding Panel Roll Forming Production Line is engineered for continuous, high-precision manufacturing of metal wall cladding panels used in industrial, commercial, and architectural buildings. This integrated system combines decoiling, guiding, roll forming, servo cutting, and automated control into one efficient production solution.

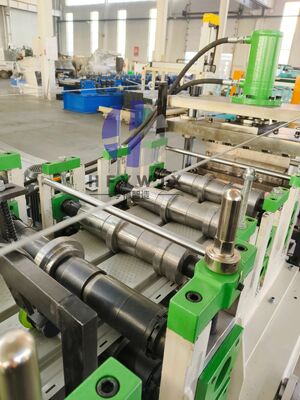

Roll Forming Section Specifications

Feature	Specification
Frame Structure	Vertical arched frame structure, 35-45 mm thick; Annealed profile steel construction with 350# H-beam welding; Base surface milling treatment with anti-rust protection
Side Punching Device	Rotating punching roller with scrap ejection mechanism
Number of Forming Rows	22 rows
Wall Panel Thickness	20mm
Material Feeder	Two-hand crank feeder with pull cutter
Transmission Method	Gear drive
Rolling Speed	25 meters/minute
Cutting Device Type	Hydraulic shears
Hydraulic Pump Power	4 kW

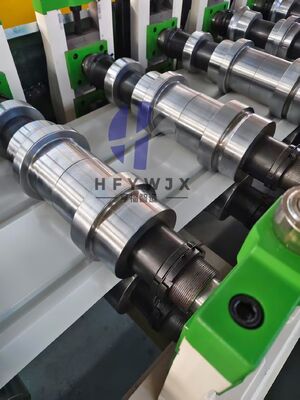

Tool Material	45# steel with hard chrome plating surface treatment

Punching Section Specifications

Component	Specification
Frame	Independent frame design
Feeding Device	Servo feeder
Feeding Motor Power	1.5 kW (servo motor)

Material Loading Rack Specifications

Component	Specification
Uncoiler Capacity	3 tons
Loosening/Clamping Mechanism	Shaft segment loosening: Manual operation
Main Drive Power	2.2 kW

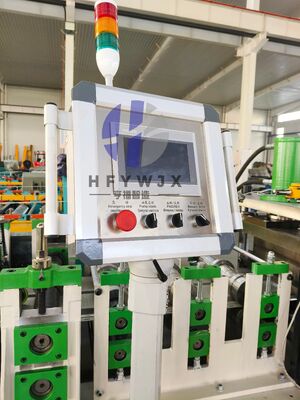

Featuring a robust steel frame, high-accuracy forming rollers, and PLC-controlled operation, this production line ensures stable performance, consistent profile dimensions, and superior surface quality. The machine supports customized panel profiles, thicknesses, and production speeds to meet diverse market requirements, making it an ideal solution for manufacturers seeking long-term reliability, high productivity, and exceptional product quality.

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.

What's the delivery time?

Normally it takes about 45 days.

What service can you provide before order?

We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.

Can you finish the machine during the delivery time?

We will complete production on time according to the confirmed lead time.

Do you have after-sale support?

Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.

Any other service?

We can manufacture, design, install and commission various roll forming machines, including both standard and customized ones. Machine assembly and operator training are free of charge, but the buyer is responsible for the round-trip flight tickets and accommodation for our technicians.
