Double Layer Roll Forming Machine with PLC Control 45# Steel Rollers and 300H Steel Frame

Brand Name:	HENGFU
Model Number:	Double Layer Roll Forming Machine
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Tile Type:

Colored Steel

Certification:

CE, SGS

Condition:

Customized:

Customized

Usage:

Roof, Wall

Transmission Method:

Electric

Transmission Mode:

One Inch Chain

Cutting Method:

Shear Of Guide Column

Model:

Double Layer Tile Press Machine

Transport Package:

Plastic Film & Steel Wire Fixed

Specification:

6500mmx1300mmx1200mm

HS Code:

8455221000

Production Capacity:

500sets/Year

Package Size:

650.00cm * 130.00cm * 120.00cm

Package Gross Weight:

7000.000kg

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

PLC Industrial Computer Control System Roll Forming Machine

45# Steel Rollers Roll Forming Machine

300H Steel Frame Roll Forming Machine

Product Description

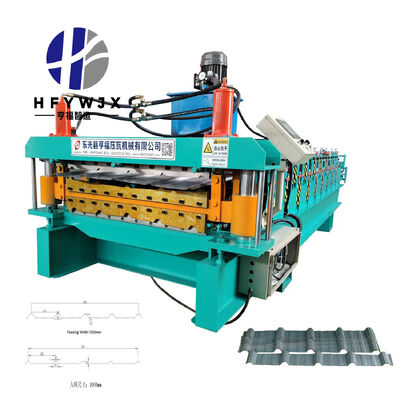

Double Layer Roll Forming Machine

Technical Specifications

Specification	Details
Model Number	Double layer roll forming machine
Condition	New
Usage	Roof
External Dimensions	6500mm x 1300mm x 1200mm
Machine Frame	300H steel frame
Number of Rolling Mill Sets	13-11 row molding
Roll Material	45# steel with rough lathe, fine lathe, outer circle grinding and electroplating treatment
Spindle Material	45 steel
Raw Materials	Galvanized steel plate, color steel plate
Pull Rod	35mm galvanized
Spindle Diameter	Φ70mm (Solid shaft)
Type of Driven	Chain drive
Forming Speed	0-35M/min
Main Motor Power	7.5KW
Electric Control System	PLC
Customization	Customized
Origin	Cangzhou, Hebei
Warranty	1 year

Key Components & Features

Frame: Welded with 300 channel steel or 300H steel, providing main support and stability during operation

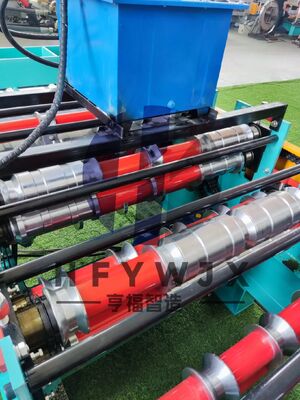

Roller Device: Multiple rollers with upper and lower layers for different tile types (900 and 840 color steel tiles), made of 45# steel with hard chrome plating for surface hardness and wear resistance
Sprocket Chain Drive: Upper shaft and rollers driven by sprocket chain (1 inch, 0.6 inch specifications) ensuring synchronous rotation and consistent tile shape
PLC Industrial Computer Control System: Programmable logic controller for automatic equipment control

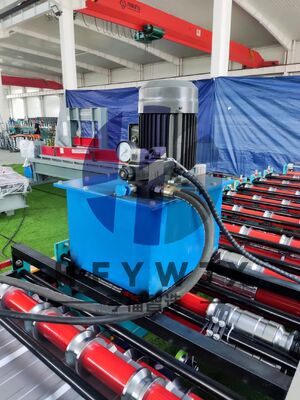

Hydraulic Pump Station: Composed of motor, gear pump, oil tank, oil filter, and safety valve, providing hydraulic power for shearing and pressing actions

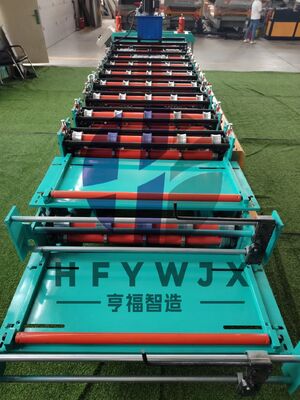

Feeding Platform: Guides color steel plate into forming machine smoothly, ensuring stability and accuracy during feeding process

Product Images

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.

What's the delivery time?

Normally it takes about 45 days.

What service can you provide before order?

We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.

Can you finish the machine during the delivery time?

We will complete production on time according to the confirmed lead time.

Do you have after-sale support?

Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.

Any other service?

We can manufacture, design, install and commission various roll forming machines, including both standard and customized ones. Machine assembly and operator training are free of charge, but the buyer is responsible for the round-trip flight tickets and accommodation for our technicians.
